Horn relay

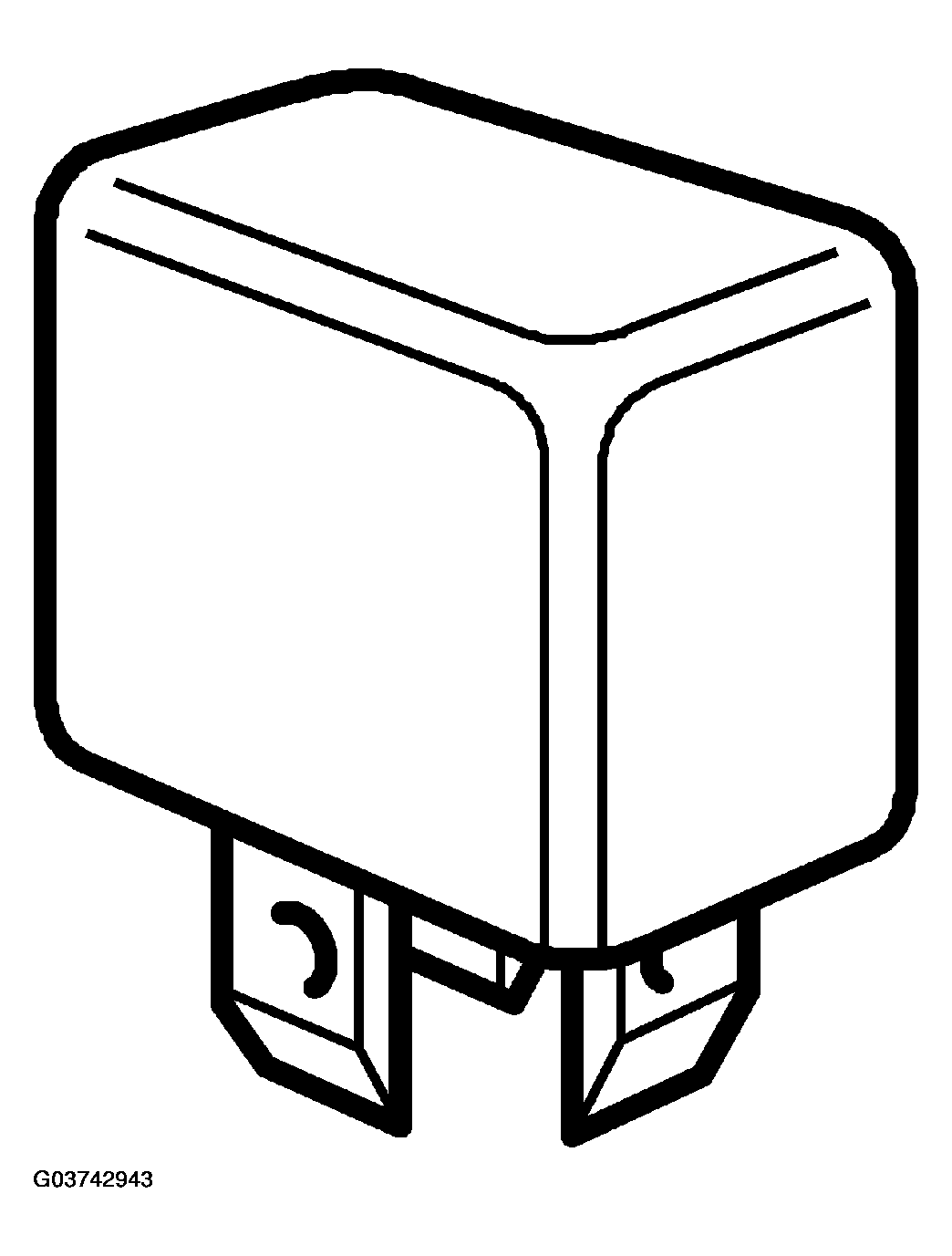

Fig 1: Identifying Horn Relay
G03742943Courtesy of SAAB-SCANIA OF AMERICA, INC.
HORN RELAY TECHNICAL DATA

Location   Main relay board in the engine bay.
Resistance of winding ohm 75 10%
Nominal operating current V 7 2
