SAAB Information Display (SID) - 9-5
>>
Technical data
>>
Filament monitor
Filament monitor

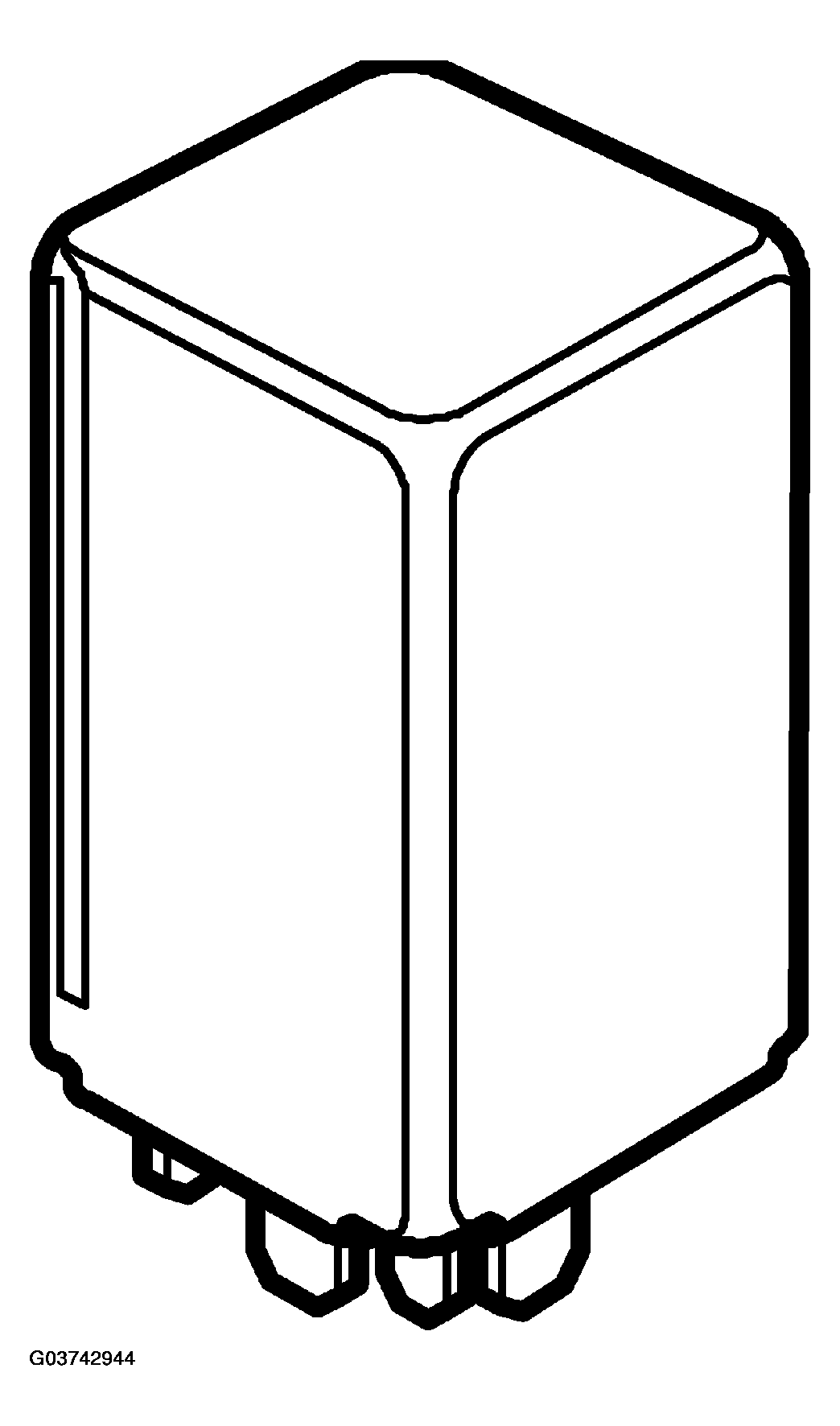

Fig 1: Identifying Filament Monitor
Courtesy of SAAB-SCANIA OF AMERICA, INC.
FILAMENT MONITOR TECHNICAL DATA
Location
Main relay board in the engine bay.
Characteristics
Faulty lamp
Closed
Courtesy of SAAB-SCANIA OF AMERICA, INC.
