Coolant level sensor

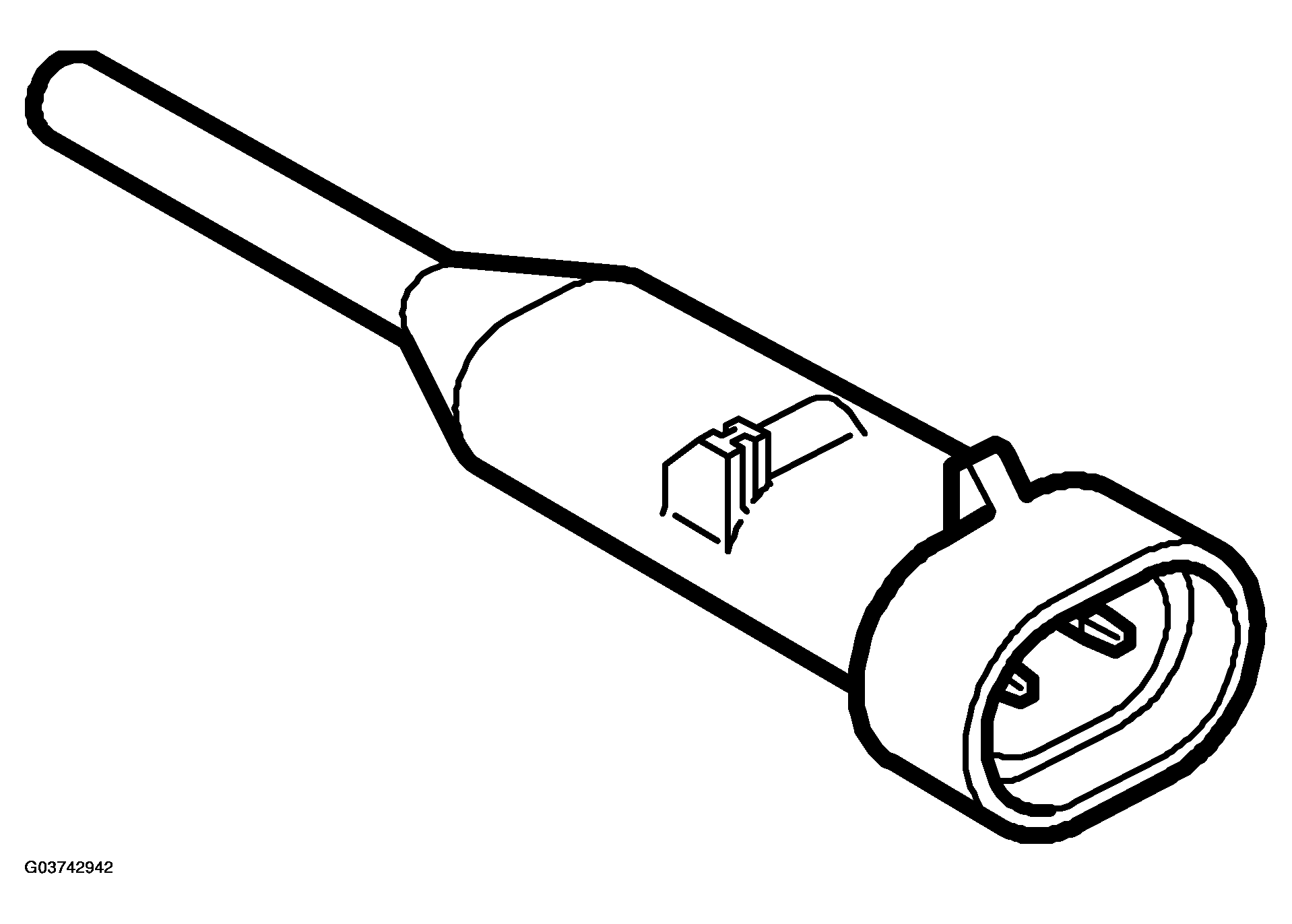

Fig 1: Identifying Coolant Level Sensor
G03742942Courtesy of SAAB-SCANIA OF AMERICA, INC.
COOLANT LEVEL SENSOR TECHNICAL DATA

Location   In the expansion tank
Power supply V B+
Characteristics "Level low" Open
