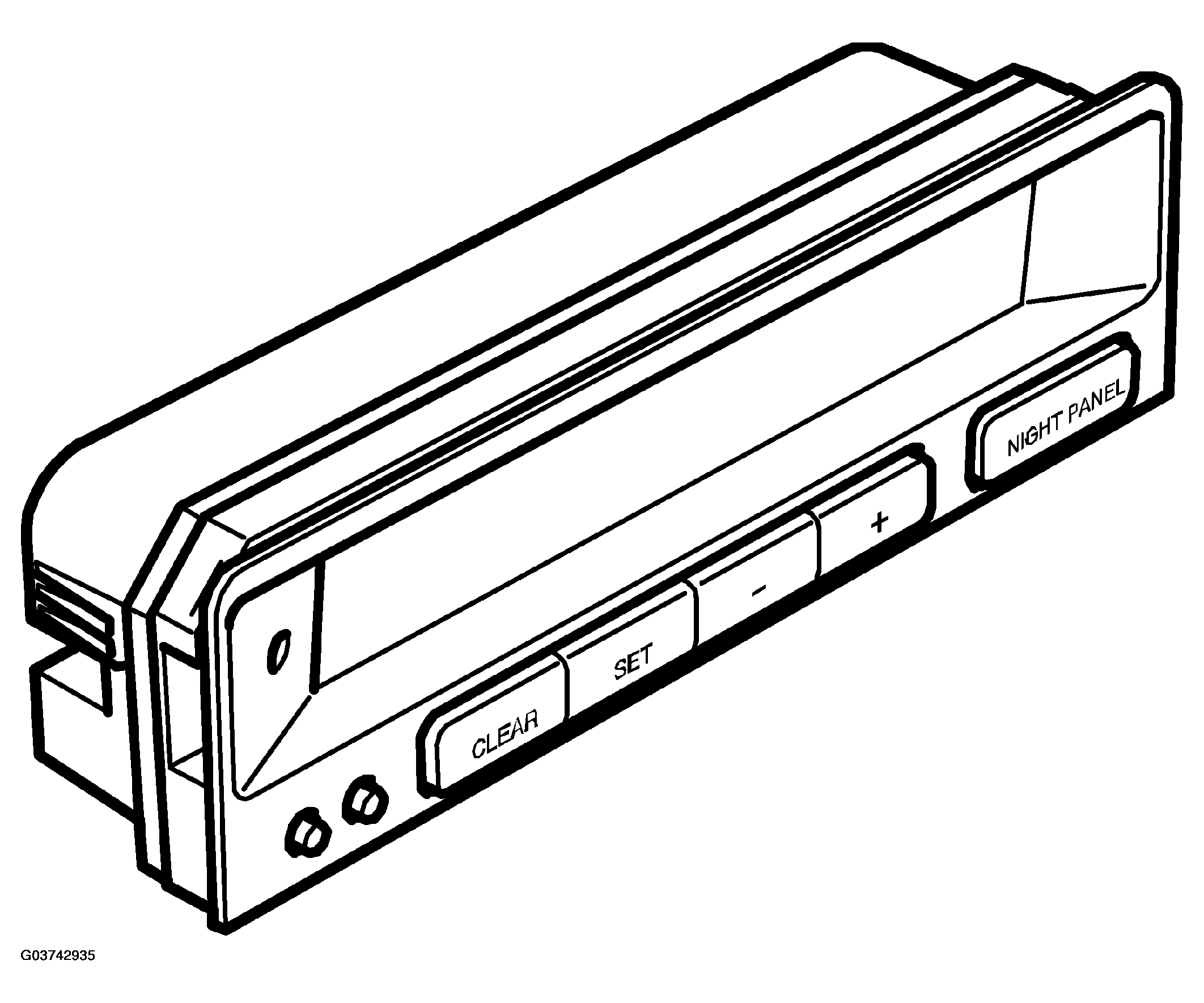

Control module
Courtesy of SAAB-SCANIA OF AMERICA, INC. CONTROL MODULE TECHNICAL DATA
| Location |
|
In the center of the dashboard |
| Number of pins |
|
32 |
| Power supply +30 |
Pin No. |
1 |
| Power supply +15 |
Pin No. |
28 |
| Ground |
Pin No. |
32 |
| Instrument bus, I-BUS (+) |
Pin No. |
30 |
| Instrument bus, I-BUS (-) |
Pin No. |
31 |
