DTC B2371: Steering wheel controls. Open circuit/Faulty: Notes

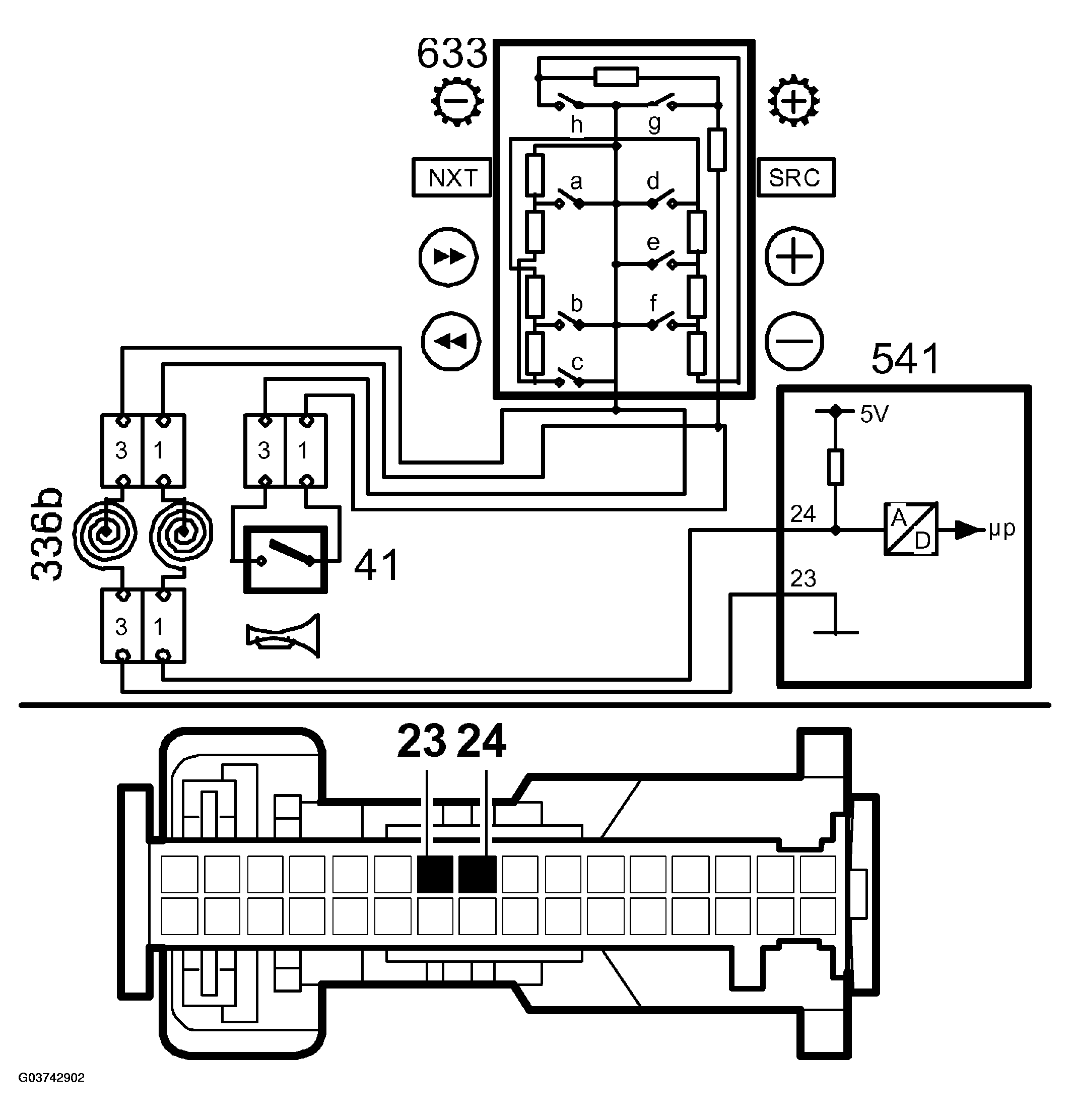

Fig 1: Steering Wheel Controls Open Circuit/Faulty Diagram
G03742902Courtesy of SAAB-SCANIA OF AMERICA, INC.

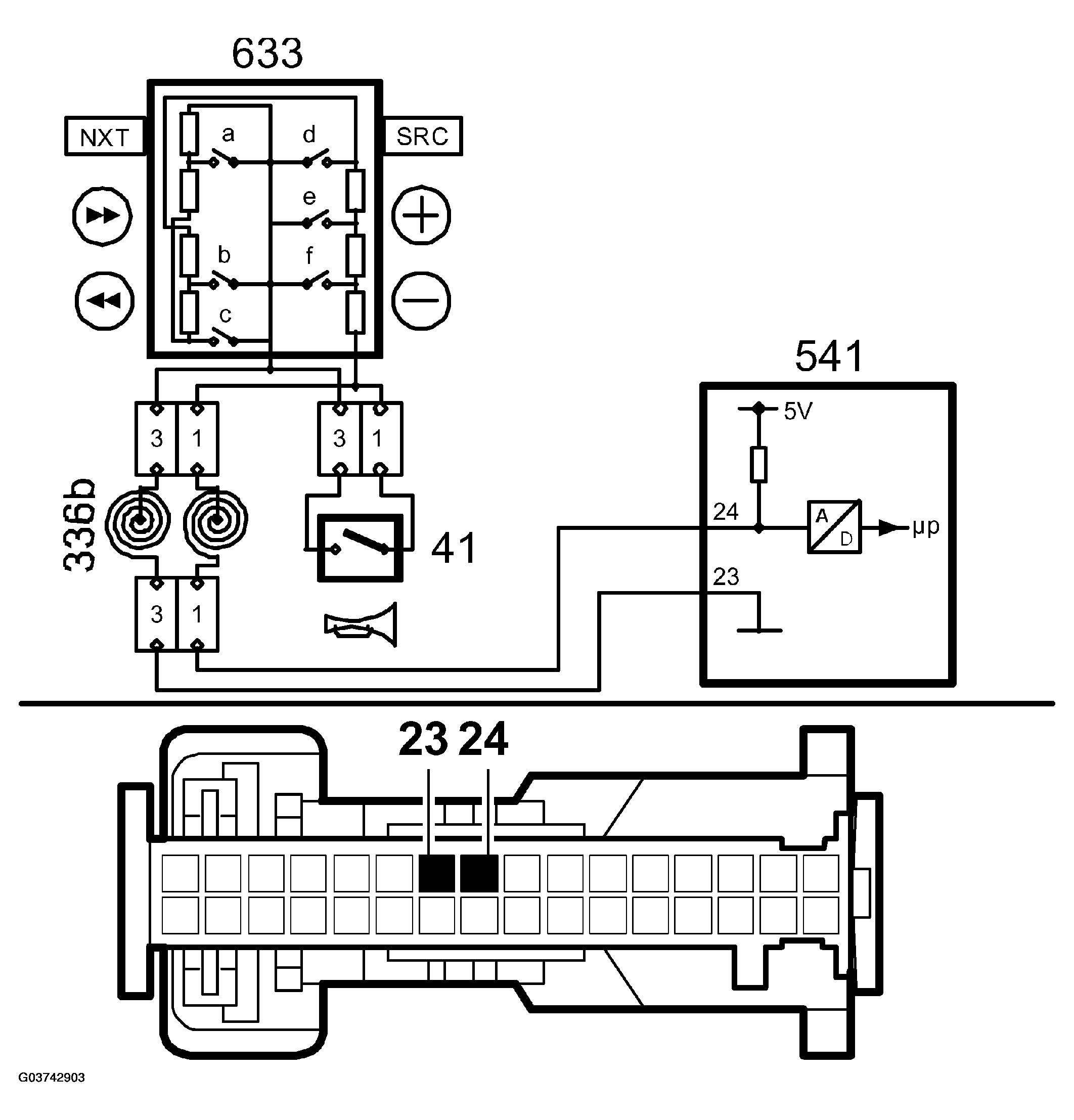

Fig 2: Steering Wheel Controls Open Circuit/Faulty Diagram
G03742903Courtesy of SAAB-SCANIA OF AMERICA, INC.
