DTC B1736: Rheostat Circuit. Open Circuit: Notes

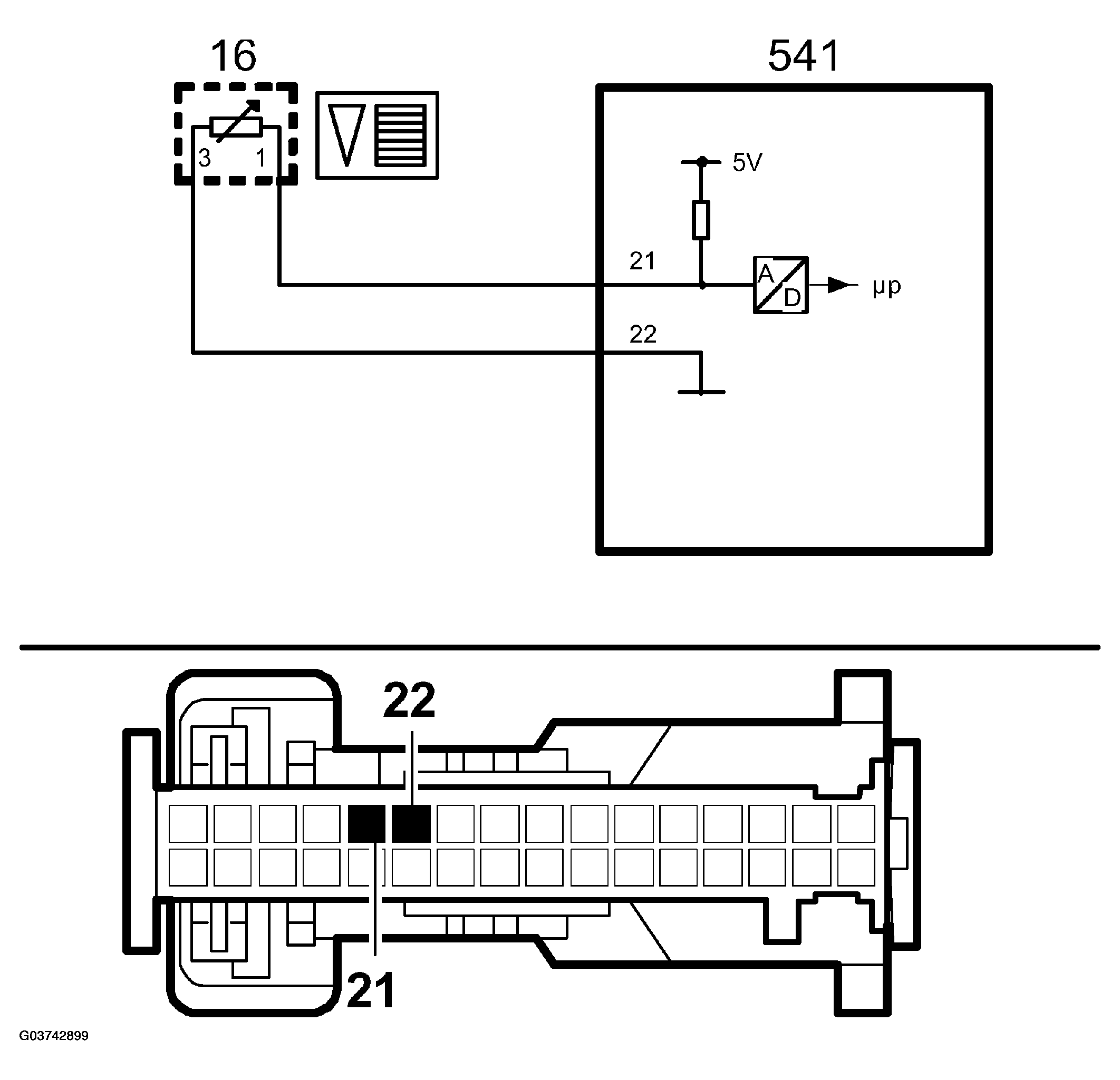

Fig 1: Rheostat Circuit Open Circuit Diagram

G03742899

Courtesy of SAAB-SCANIA OF AMERICA, INC.
