Crimp connection J58, instrument harness

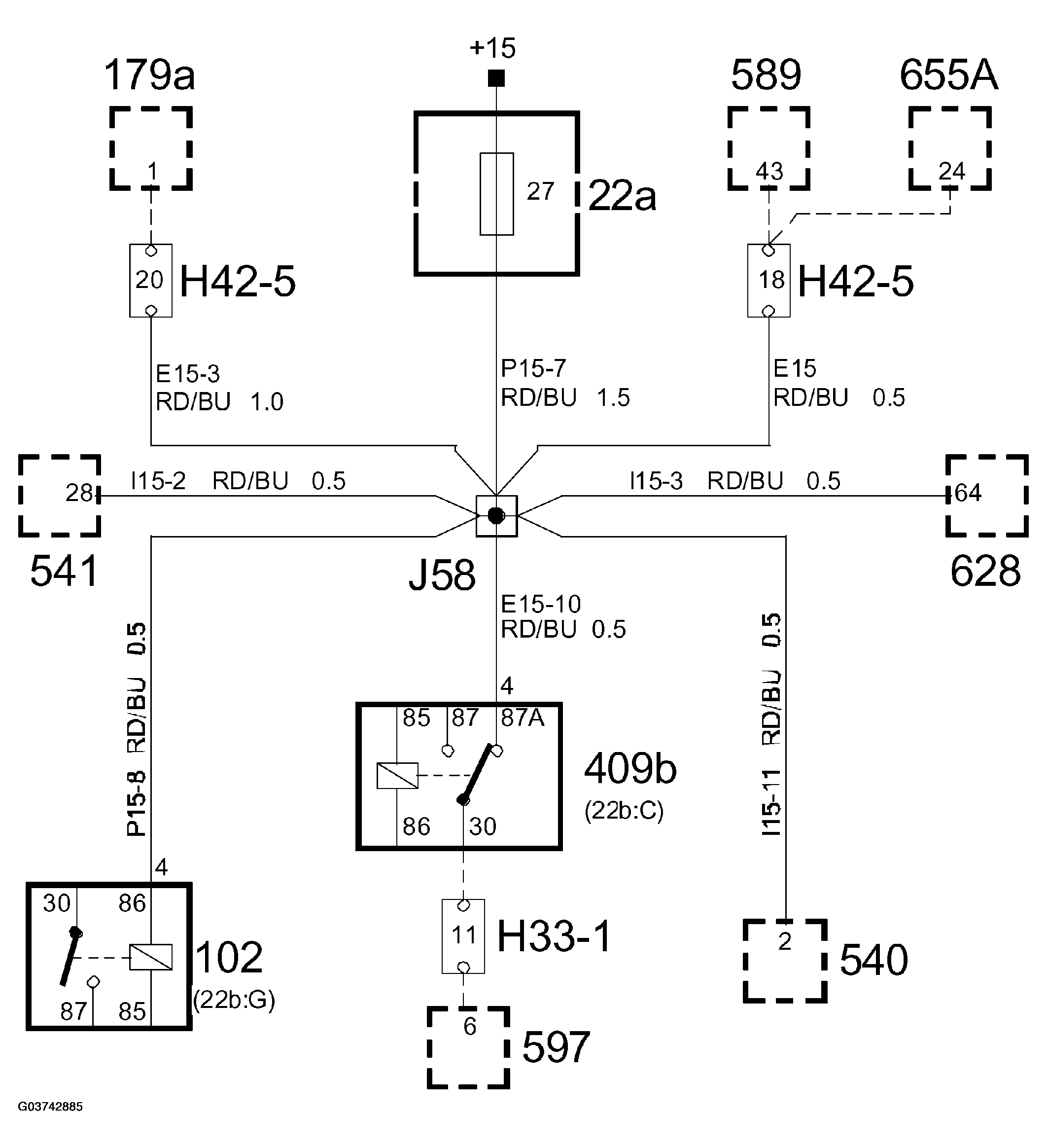

Fig 1: Instrument Harness Crimp Connection J58 - Circuit Diagram

G03742885

Courtesy of SAAB-SCANIA OF AMERICA, INC.
