Home >> Saab >> 2004 >> 9-5 Linear, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> SAAB Information Display (SID) - 9-5 >> Adjustment / Replacement >> Washer fluid level sensor >> To remove

To remove

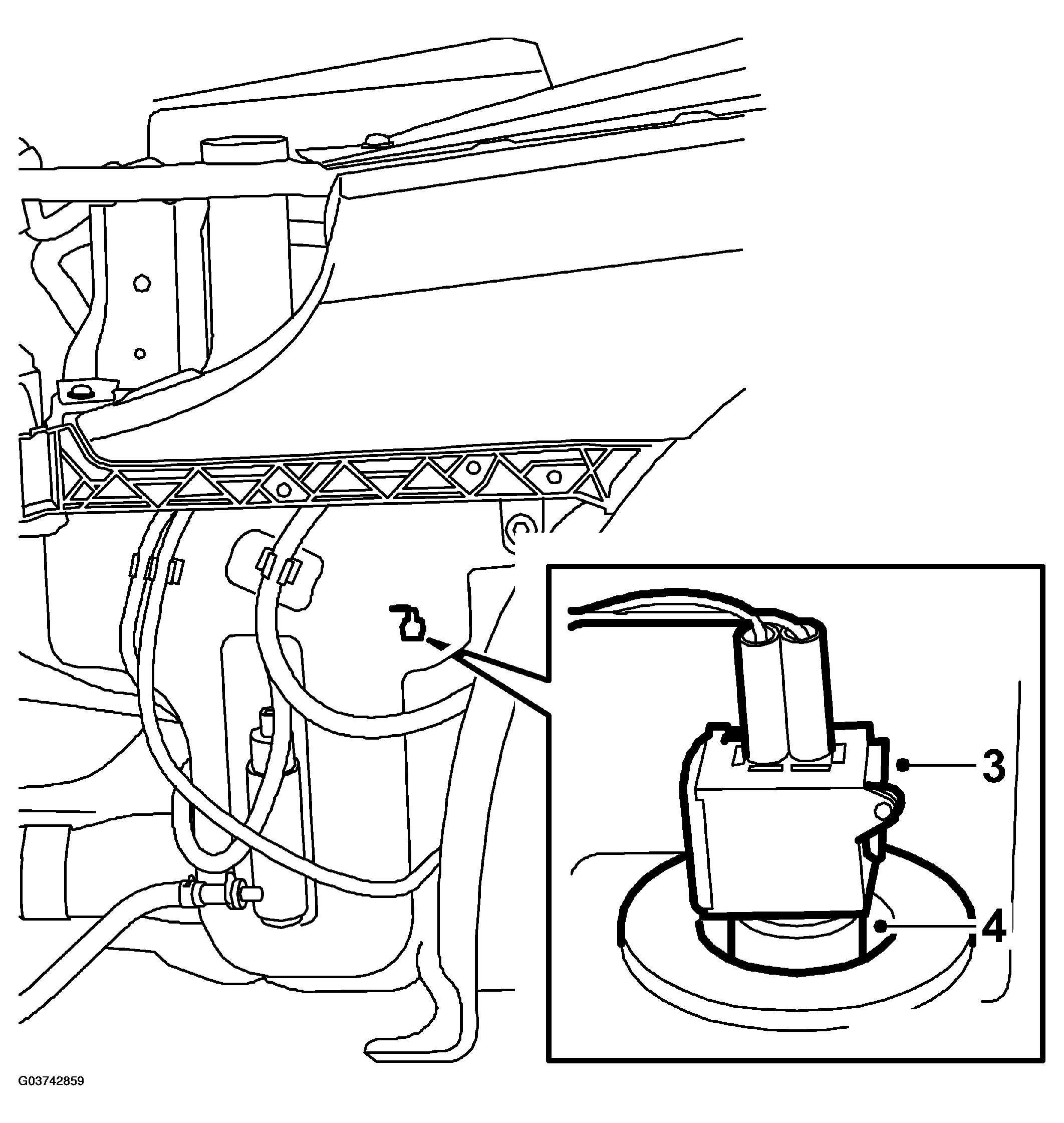

Fig 1: Illustration For Step 3-4
G03742859Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Empty the washer fluid reservoir.
  2. Raise the car.
  3. Unplug the level sensor connector.
  4. Withdraw the level sensor from the washer fluid reservoir.
