Cruise indicator lamp: Diagnostics

The function has its own diagnostics in the sending system.

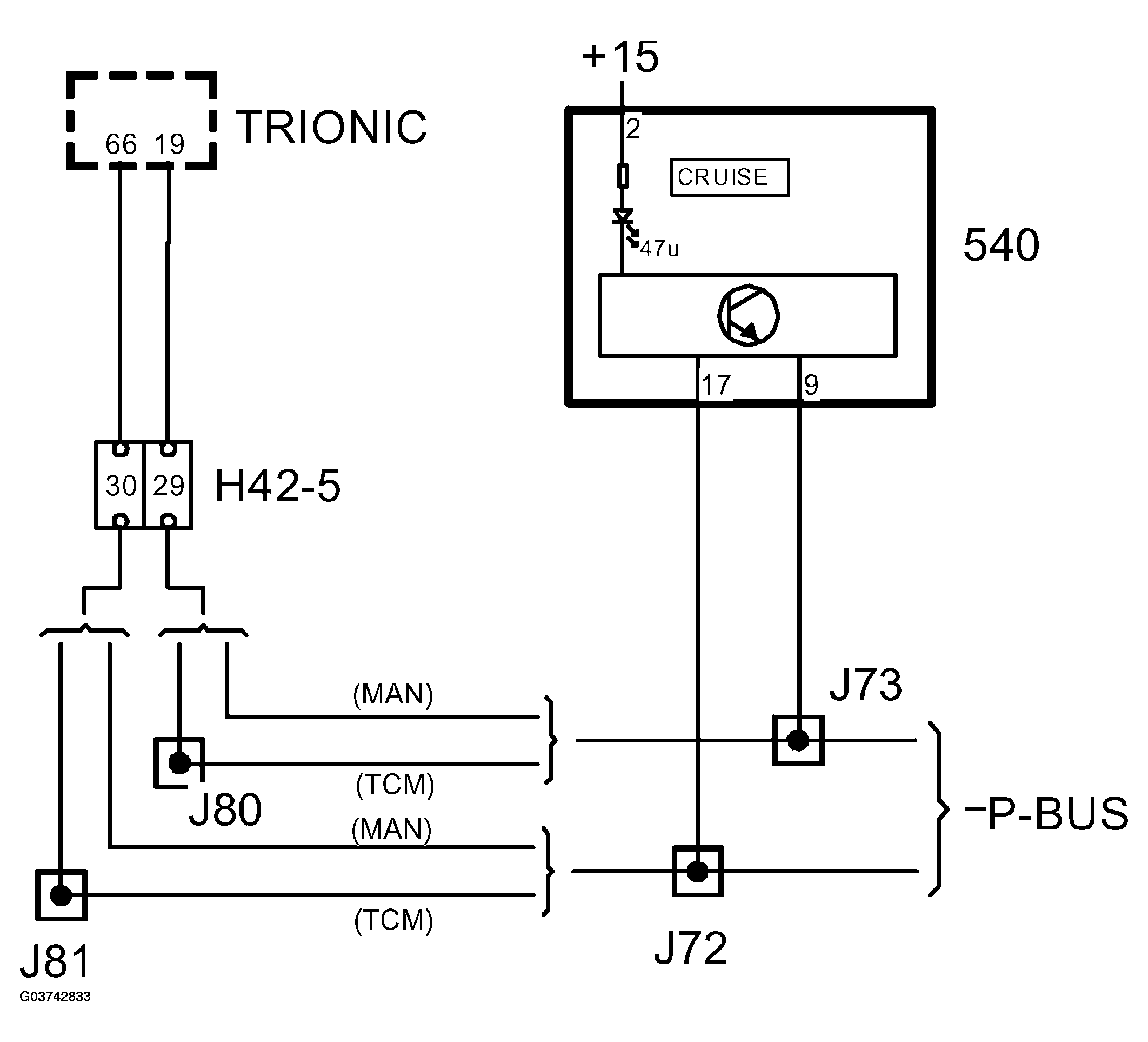

Fig 1: Cruise Indicator Lamp - Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

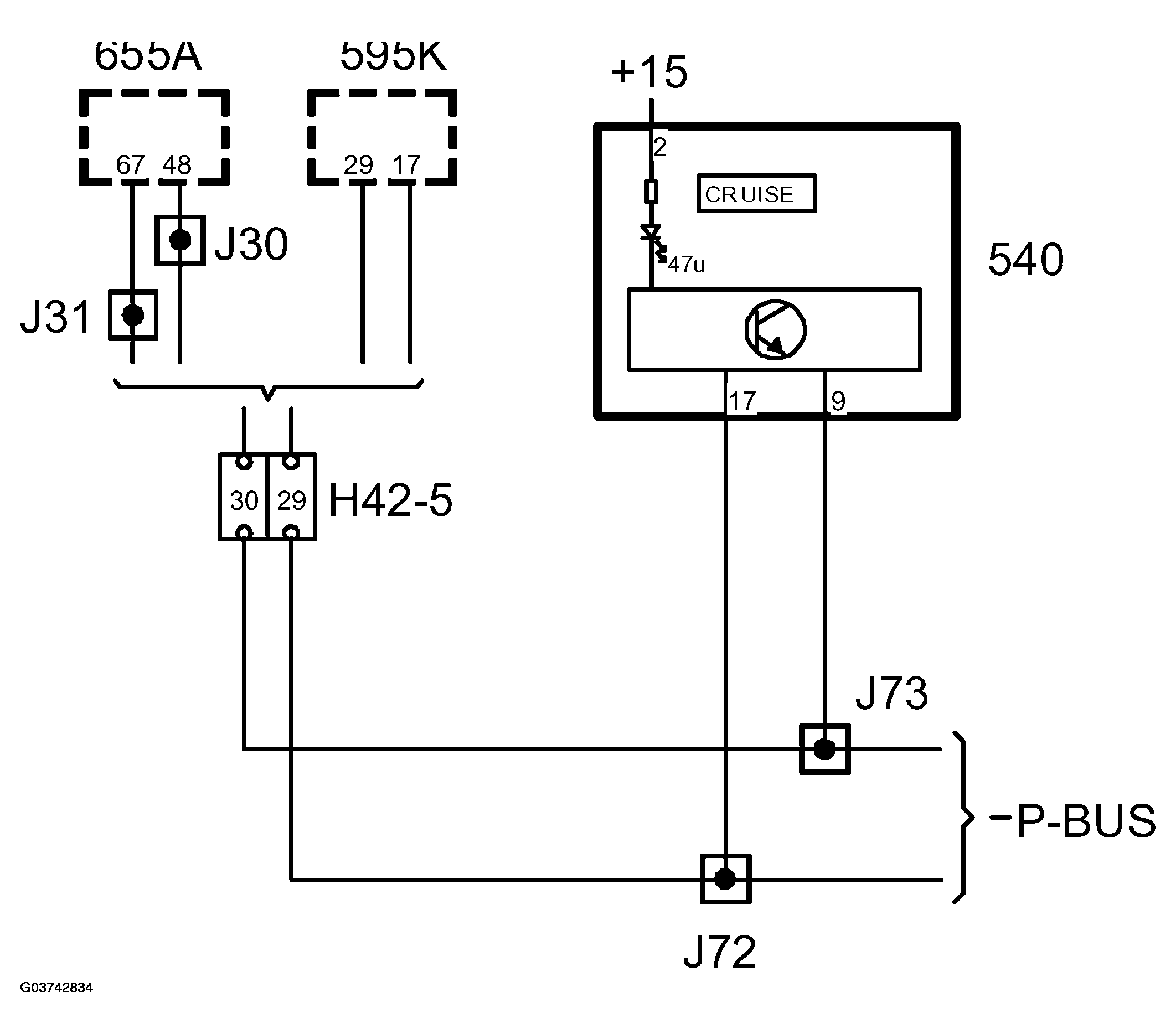

Fig 2: Cruise Indicator Lamp - Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
