ABS warning lamp: Diagnostics

The function has no diagnostics.

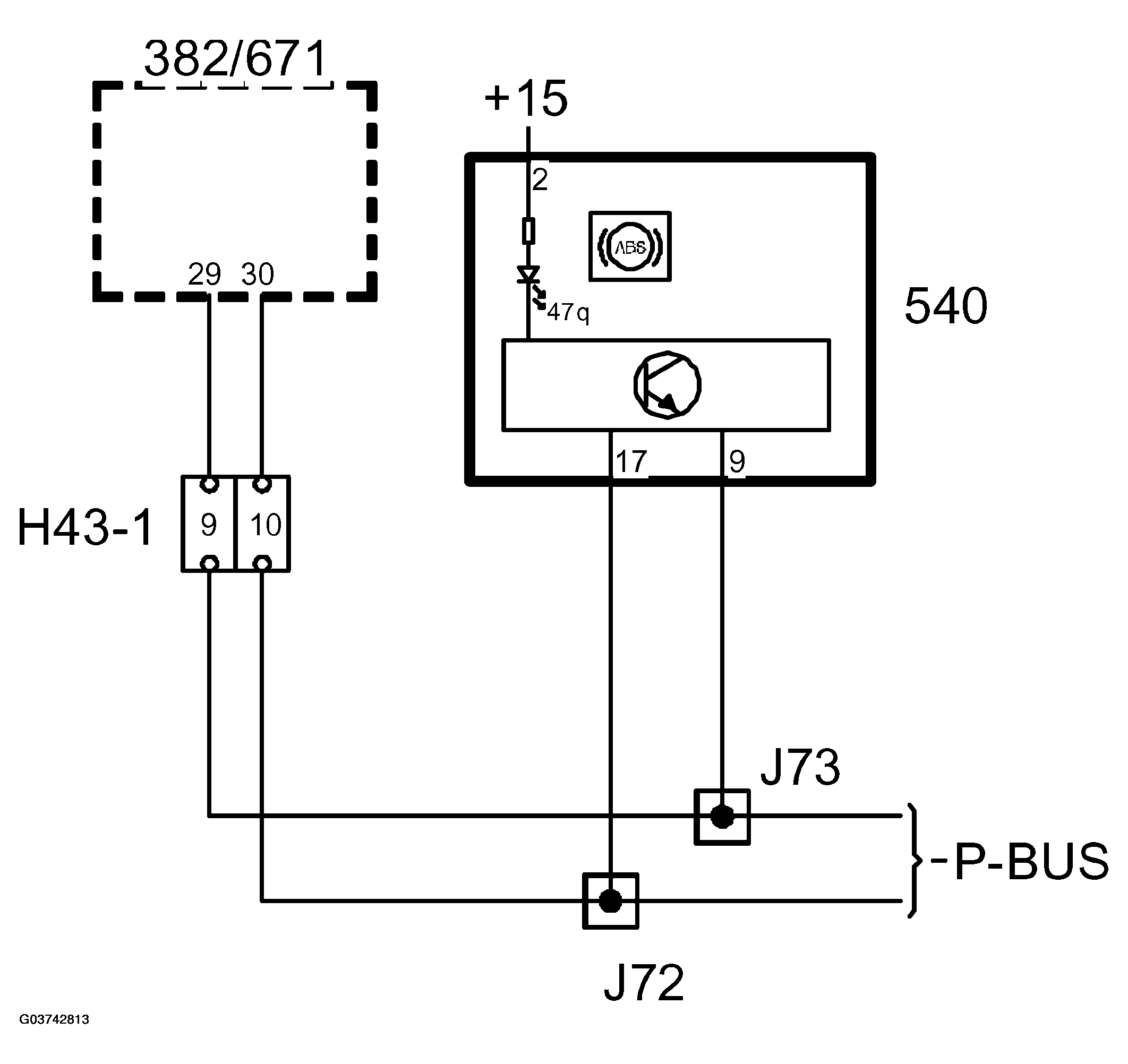

Fig 1: ABS (Not Bus-Connected System) Diagnostics - Circuit Diagram

G03742813

Courtesy of SAAB-SCANIA OF AMERICA, INC.
