System overview

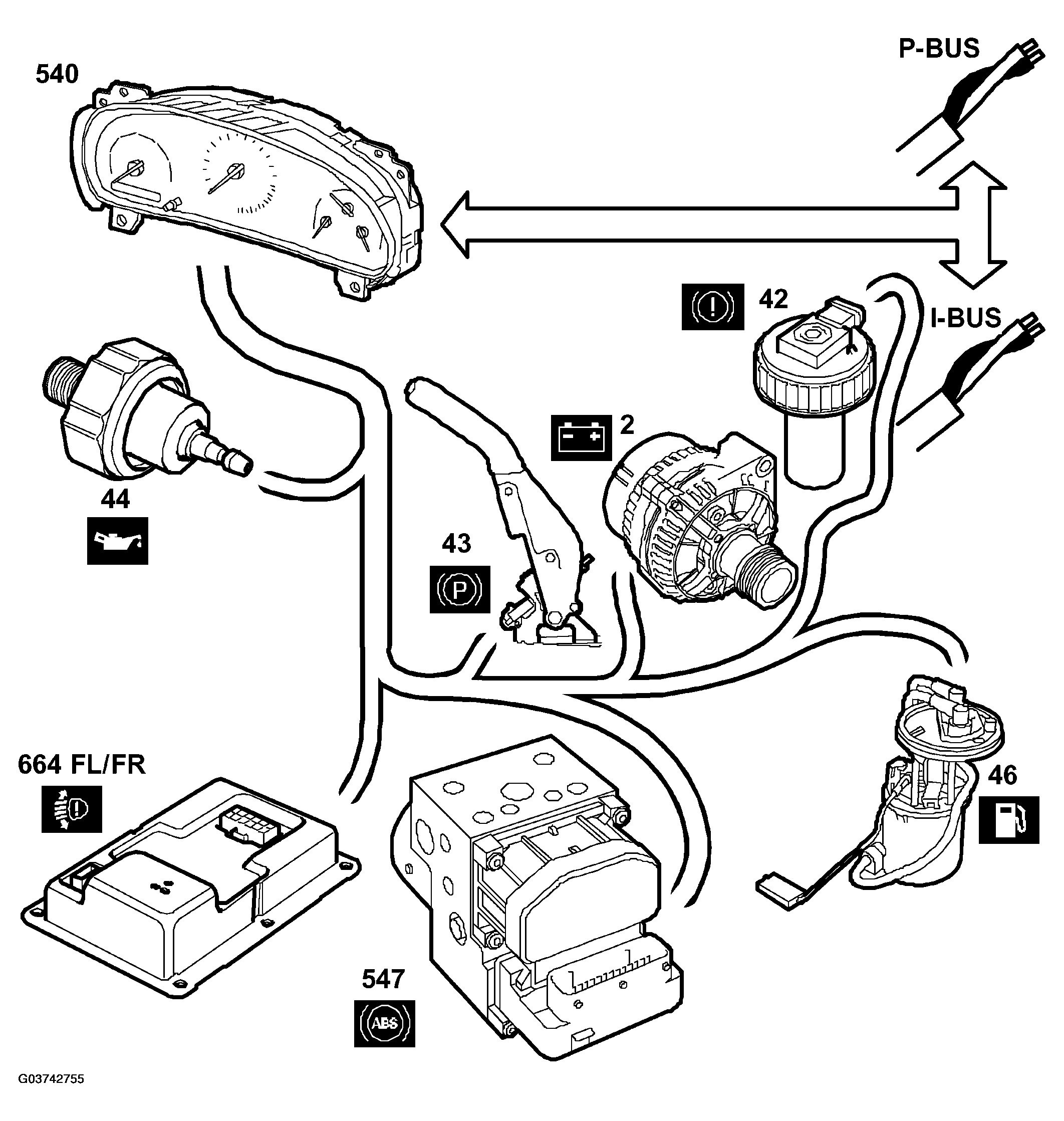

Fig 1: Overview Of Main Instrument Unit System

G03742755

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Main instrument unit (540)
Engine oil pressure sensor (44)
Switch, handbrake (43)
Generator (2)
Level switch, brake fluid (42)
Level sensor, fuel (46)
Control module, ABS (547)
Control module, AHL (Automatic Headlamp Levelling) (664 FL/FR)
