Main components

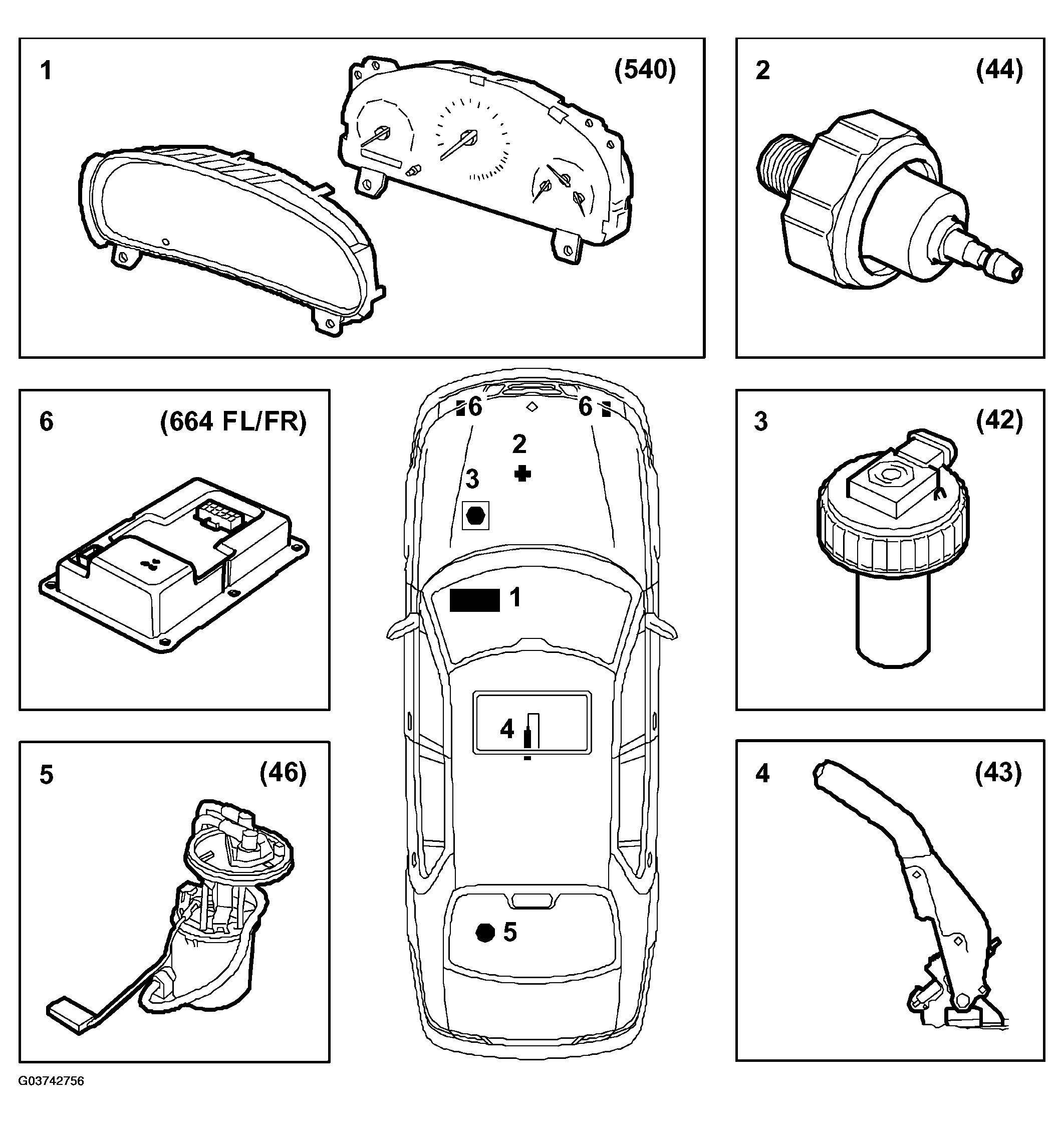

Fig 1: Identifying Main Components Of Main Instrument Unit
G03742756Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Main instrument unit (540)
  2. Engine oil pressure sensor (44)
  3. Brake fluid level sensor (42)
  4. Handbrake switch (43)
  5. Fuel level sensor (46)
  6. Control module, AHL (Automatic Headlamp Levelling) (664 FL/FR)
