Control module inputs

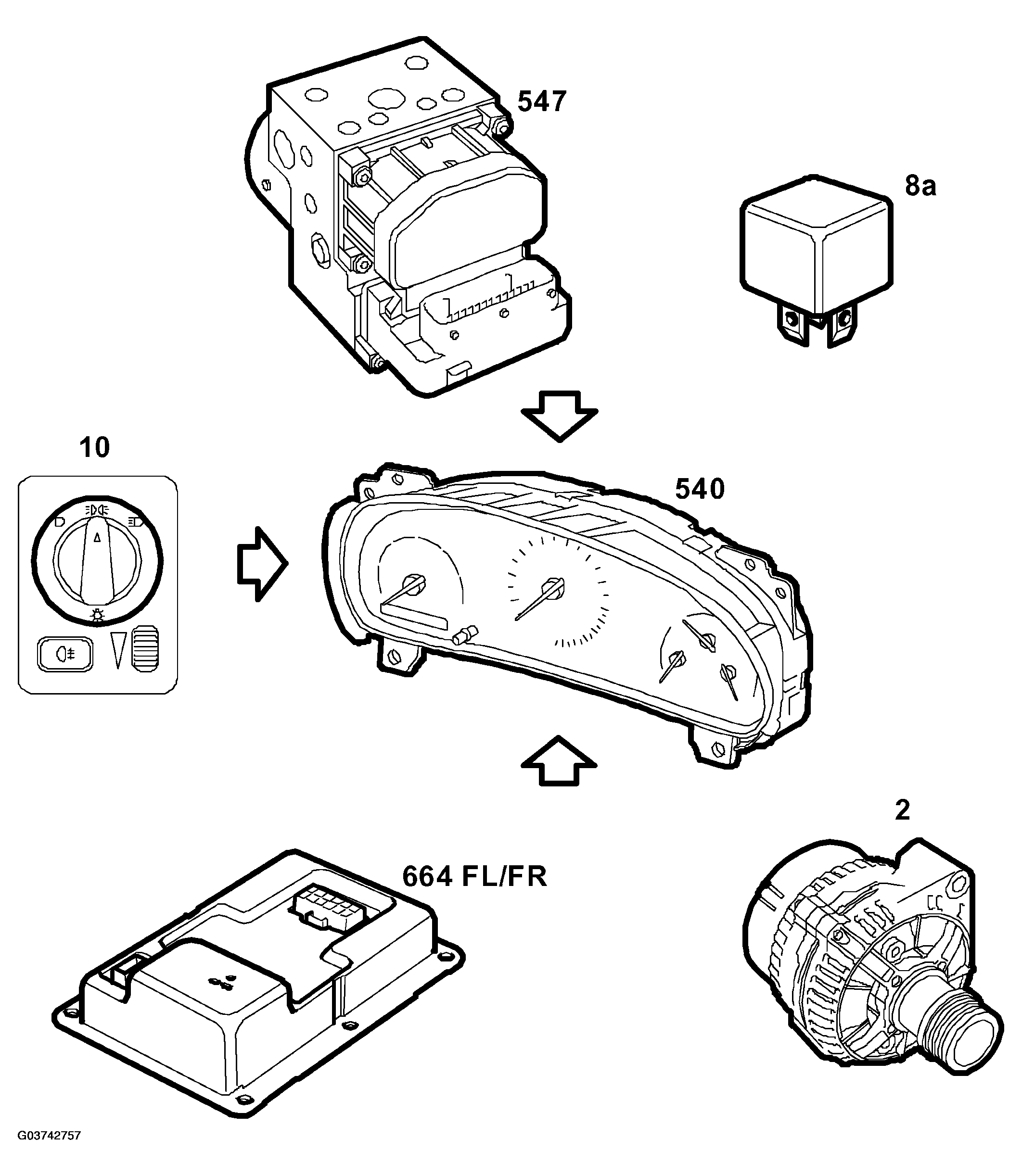

Fig 1: Identifying Control Module Inputs

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Speed signal from ABS (547) SPEEDOMETER WITH ODOMETER AND TRIPMETER .
ABS warning light (ANTILOCK) from ABS (547) ABS WARNING LAMP .
Xenon lamp system indicator from AHL control module (664 FL/FR)
Warning lamp, charging (2) CHARGE WARNING LAMP .
Lights-on indicator lamp from lights switch (10) LIGHTS-ON INDICATOR LAMP .
Main beam indicator lamp from main headlamp relay (8a) MAIN BEAM INDICATOR LAMP .

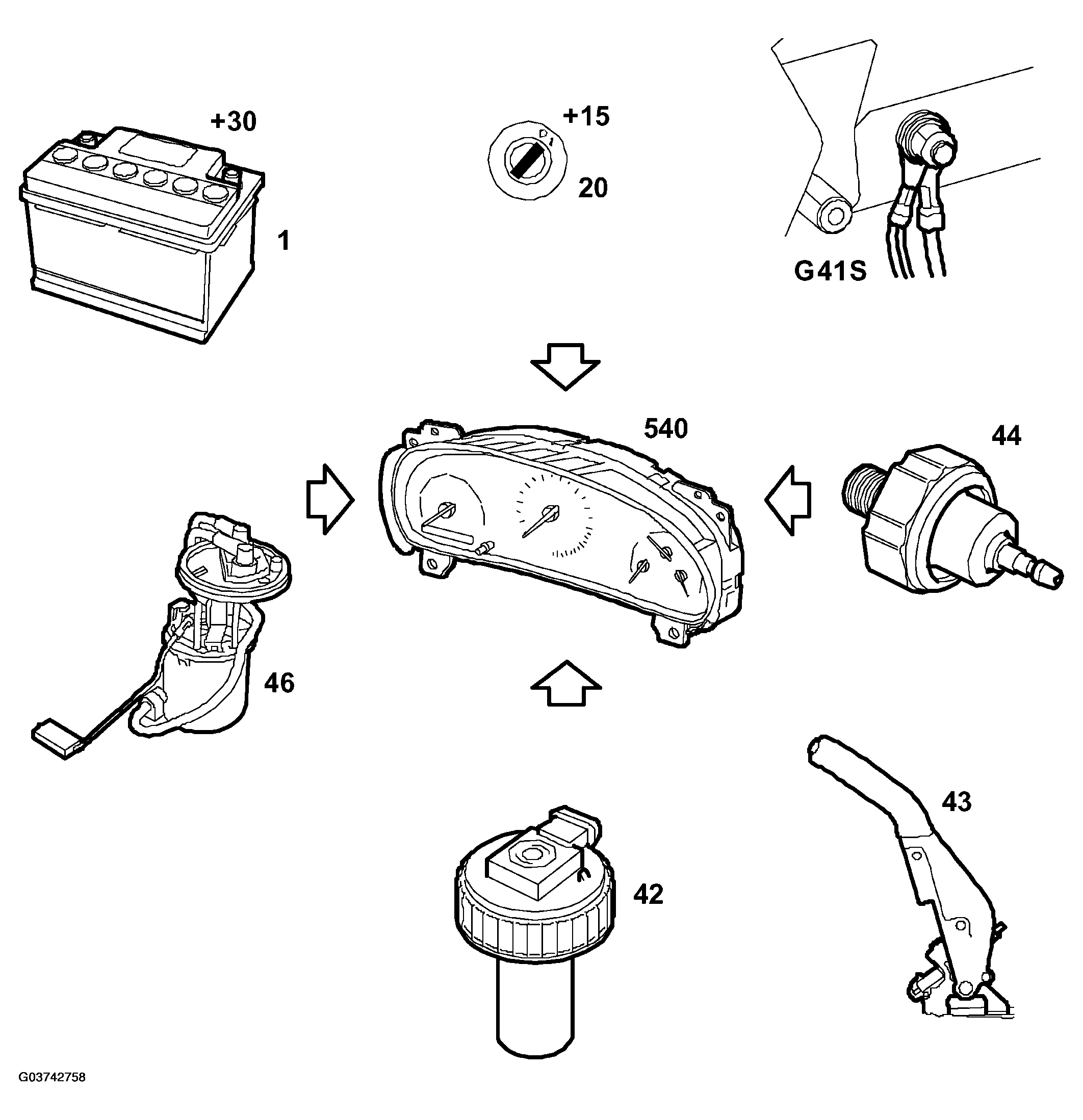

Fig 2: Identifying Control Module Inputs Component
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Battery Voltage (+30) (1) POWER SUPPLY .
Battery Voltage (+15) (20) POWER SUPPLY .
Ground connection (G41S) GROUND .
Oil pressure warning lamp from oil pressure sensor (44) OIL PRESSURE WARNING LAMP .
Brake fluid level warning lamp from brake fluid reservoir (42) WARNING LAMP, BRAKE FLUID LEVEL .
Warning lamp, handbrake (43) WARNING LAMP, HANDBRAKE .
Fuel level from fuel level sensor (46) FUEL LEVEL SENSOR .
Low fuel level indicator lamp (46) FUEL LEVEL SENSOR .
