Oil pressure sensor, V6 diesel

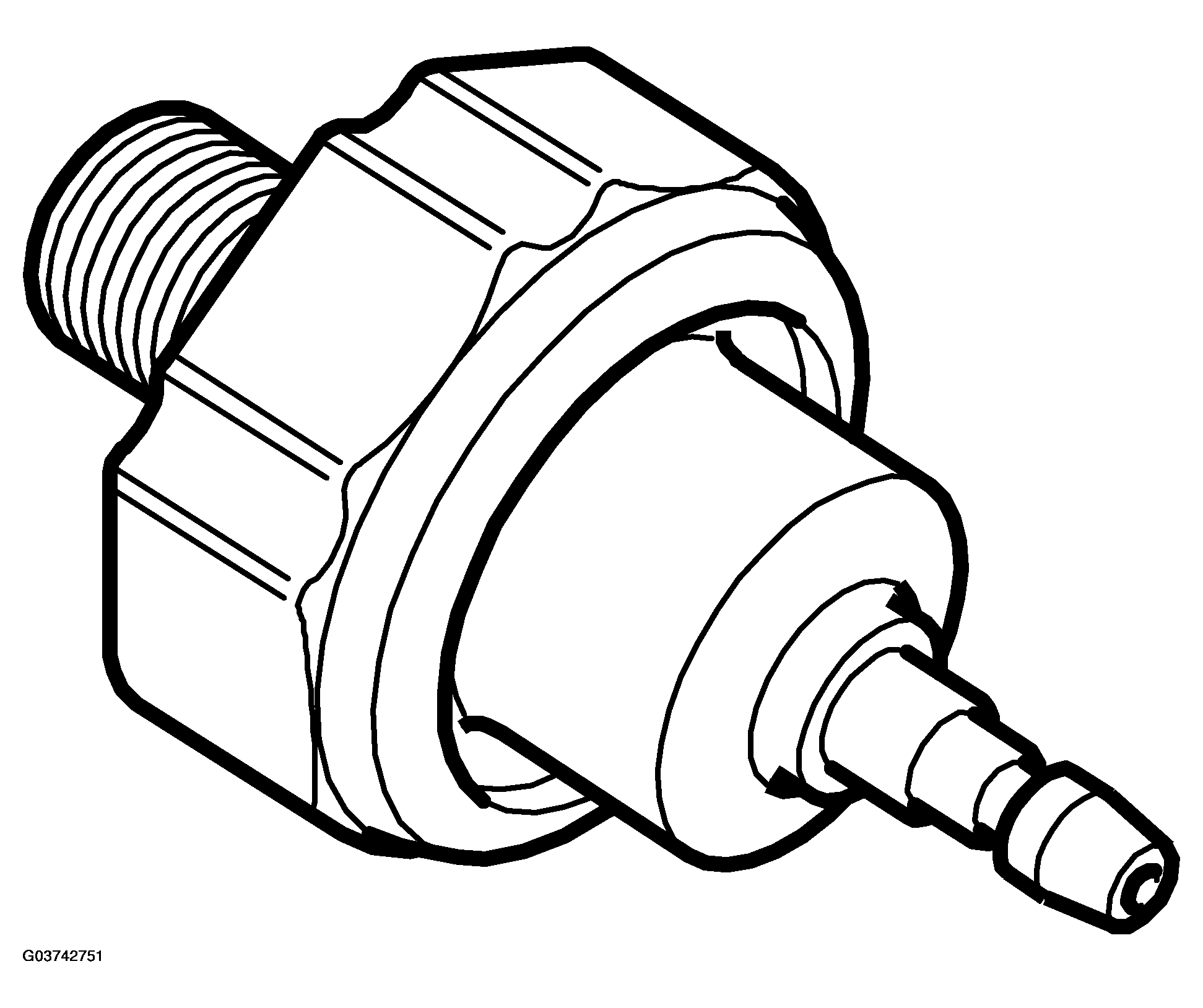

Fig 1: Identifying Oil Pressure Sensor (V6 Diesel)
G03742751Courtesy of SAAB-SCANIA OF AMERICA, INC.
OIL PRESSURE SENSOR (V6 DIESEL) TECHNICAL DATA

Pressure on opening bar 0.3-0.55
Pressure on closing bar 0.3-0.55
