DTC B1705: Vehicle speed signal faulty: Notes

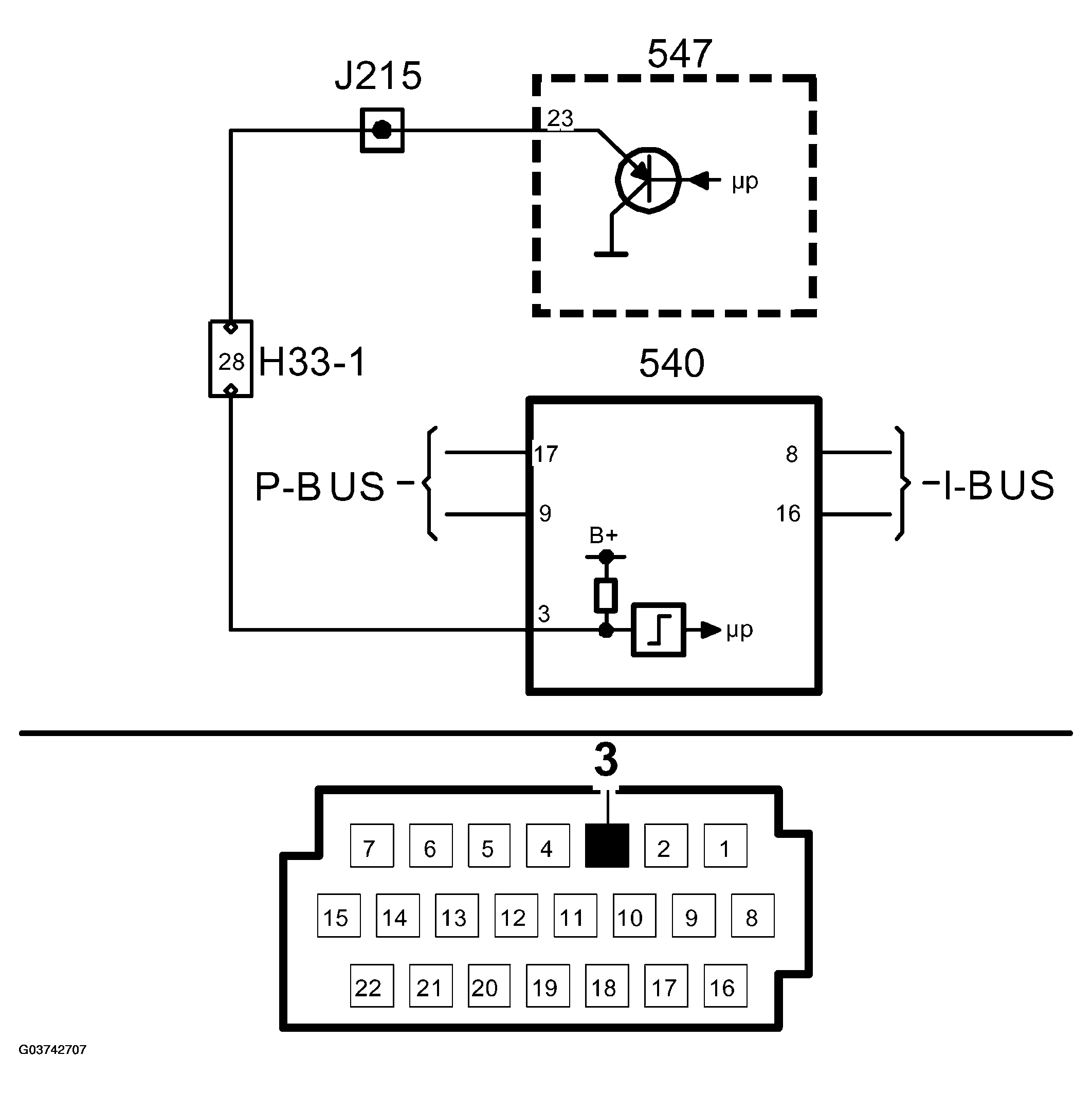

Fig 1: Vehicle Speed Signal - Circuit Diagram

G03742707

Courtesy of SAAB-SCANIA OF AMERICA, INC.
