Main beam lamp, LH (11FL)

Halogen

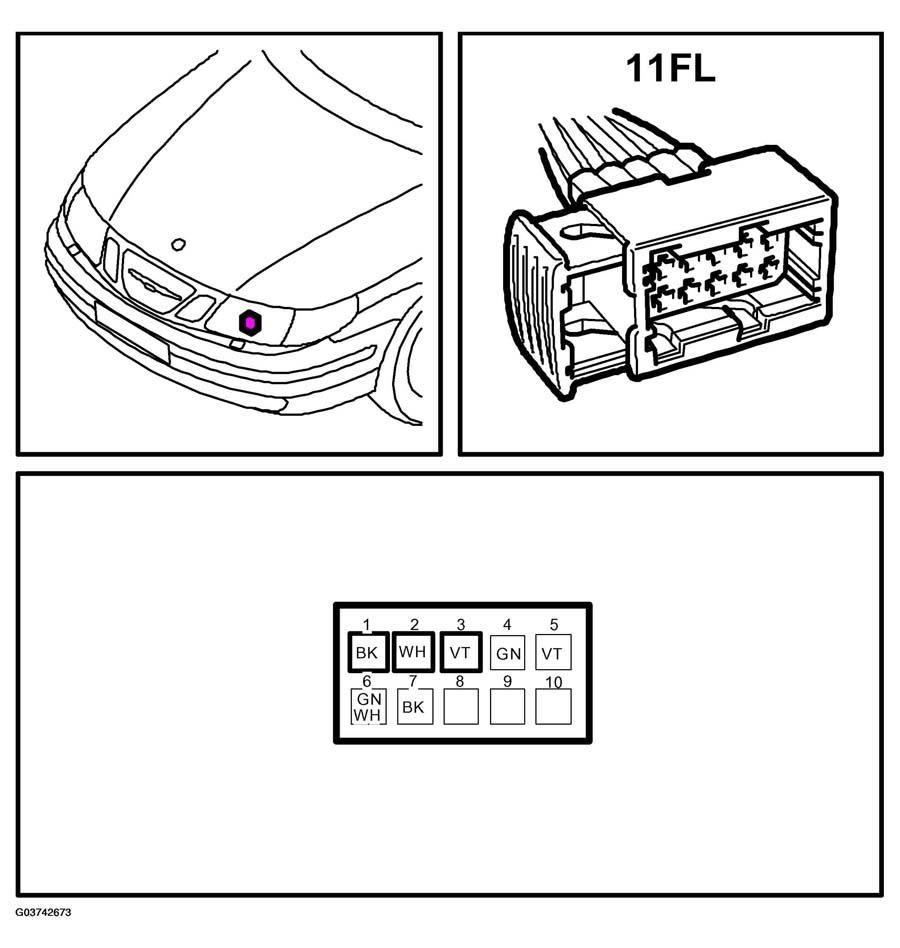

Fig 1: Identifying (Halogen) Main Beam Lamp, LH Connector Pinout
G03742673Courtesy of SAAB-SCANIA OF AMERICA, INC.

Xenon

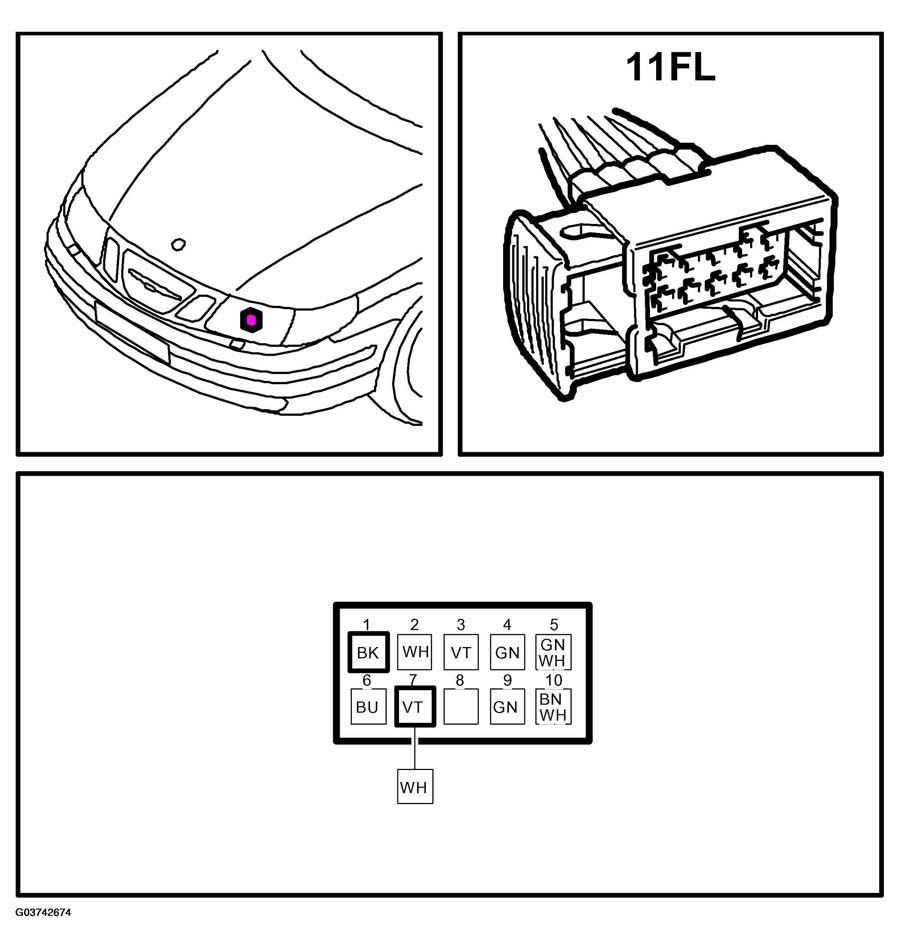

Fig 2: Identifying (xenon) Main Beam Lamp, LH Connector Pinout
G03742674Courtesy of SAAB-SCANIA OF AMERICA, INC.
