Home >> Saab >> 2004 >> 9-5 Linear, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Main Instrument Panel, Petrol >> Component Location >> Grounding point G41S >> Notes

Grounding point G41S: Notes

Fig 1: Identifying Grounding Point G41S Connector Pinout
G03742702Courtesy of SAAB-SCANIA OF AMERICA, INC.

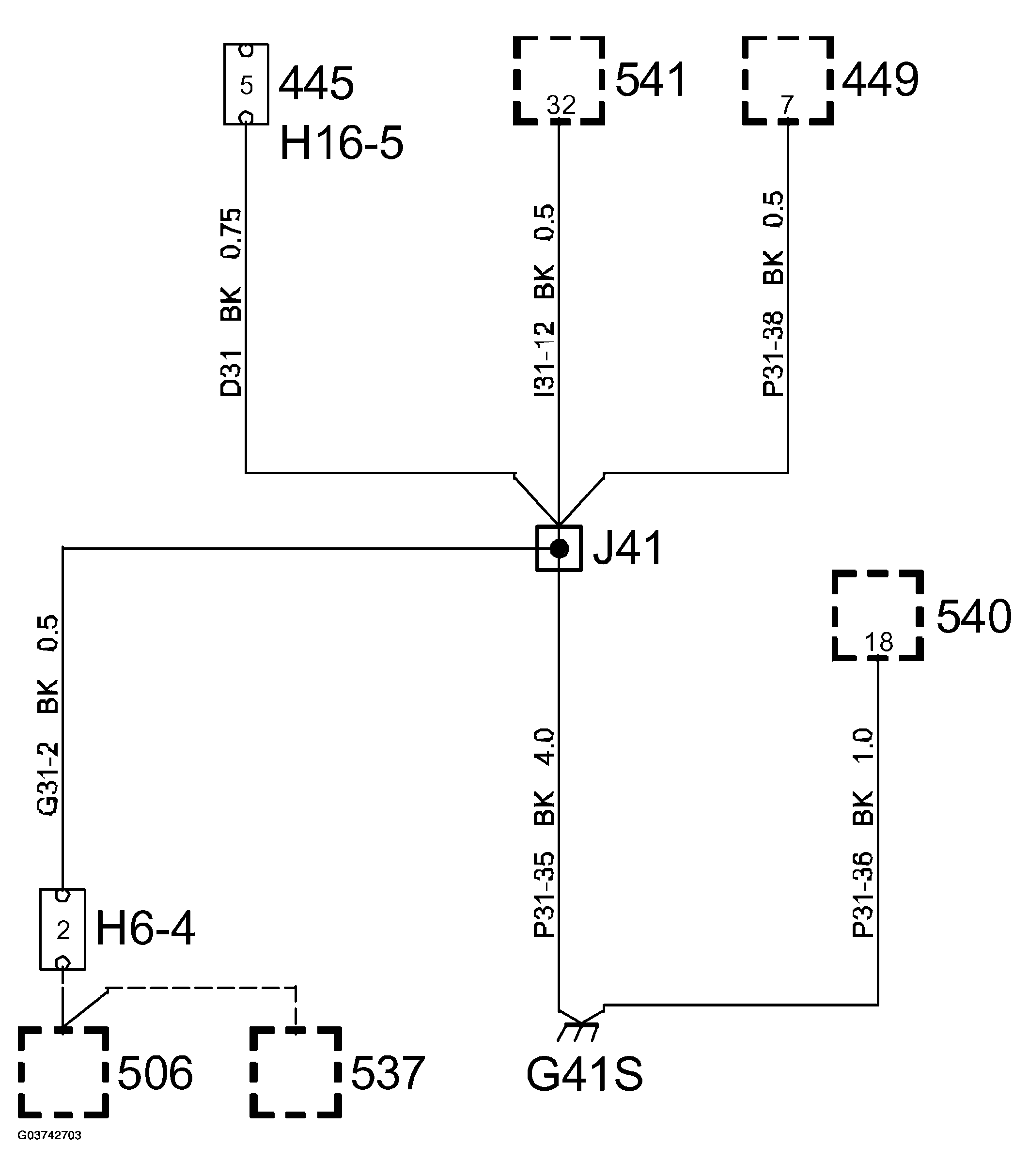

Fig 2: Grounding Point G41S Circuit Diagram
G03742703Courtesy of SAAB-SCANIA OF AMERICA, INC.
