Engine oil pressure switch (44)

4 cylinder petrol

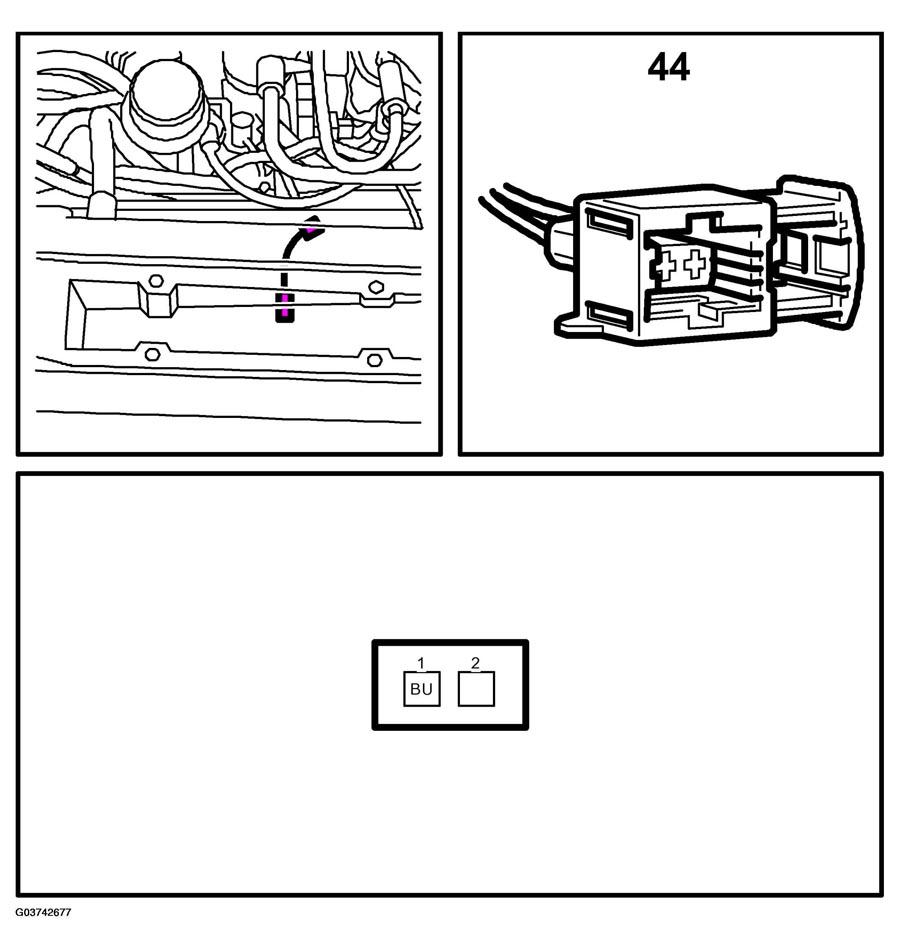

Fig 1: Identifying Engine Oil Pressure Switch (4 Cylinder Petrol) Connector Pinout
G03742677Courtesy of SAAB-SCANIA OF AMERICA, INC.

4-cyl diesel

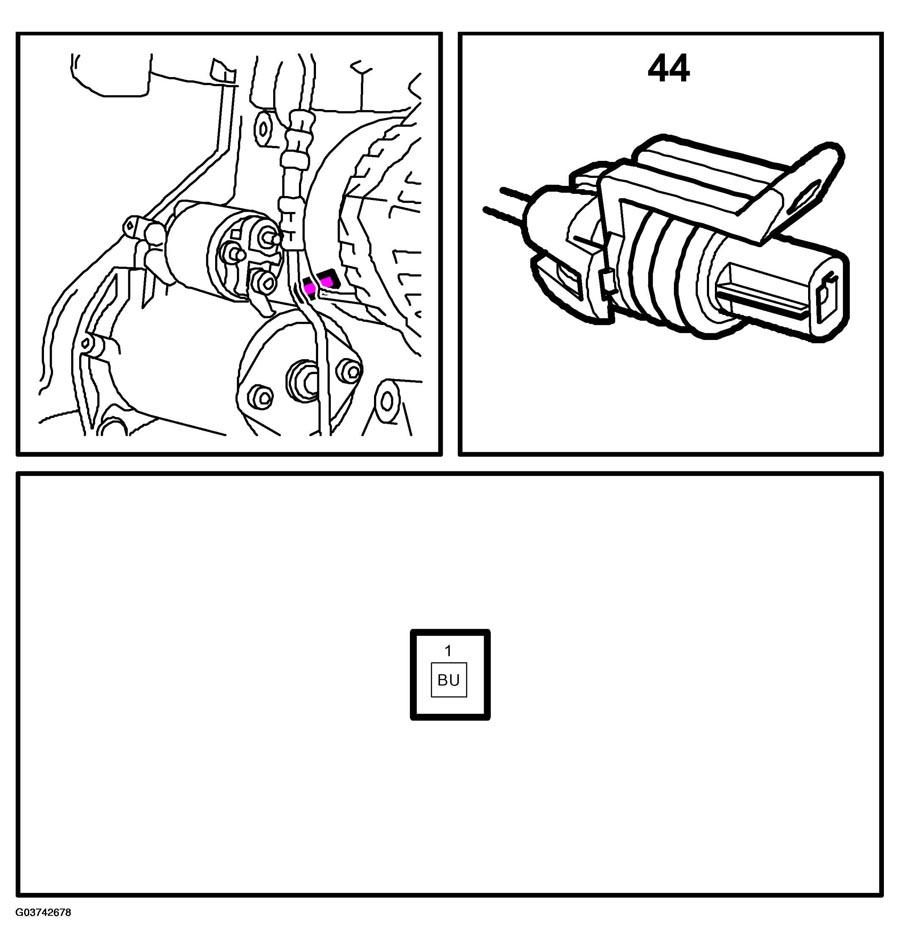

Fig 2: Identifying Engine Oil Pressure Switch (4-Cyl Diesel) Connector Pinout
G03742678Courtesy of SAAB-SCANIA OF AMERICA, INC.

V6 diesel

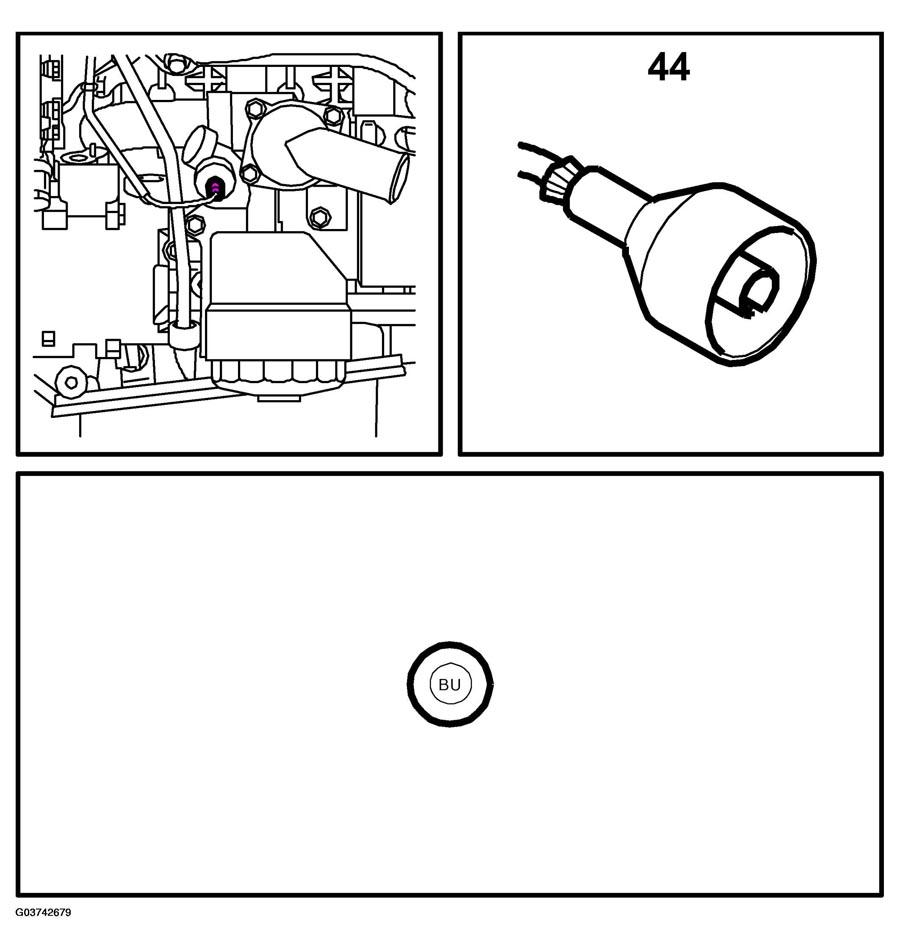

Fig 3: Identifying Engine Oil Pressure Switch (V6 Diesel) Connector Pinout
G03742679Courtesy of SAAB-SCANIA OF AMERICA, INC.
