Home >> Saab >> 2004 >> 9-5 Linear, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Main Instrument Panel, Petrol >> Component Location >> Crimp connection J58, instrument harness

Crimp connection J58, instrument harness

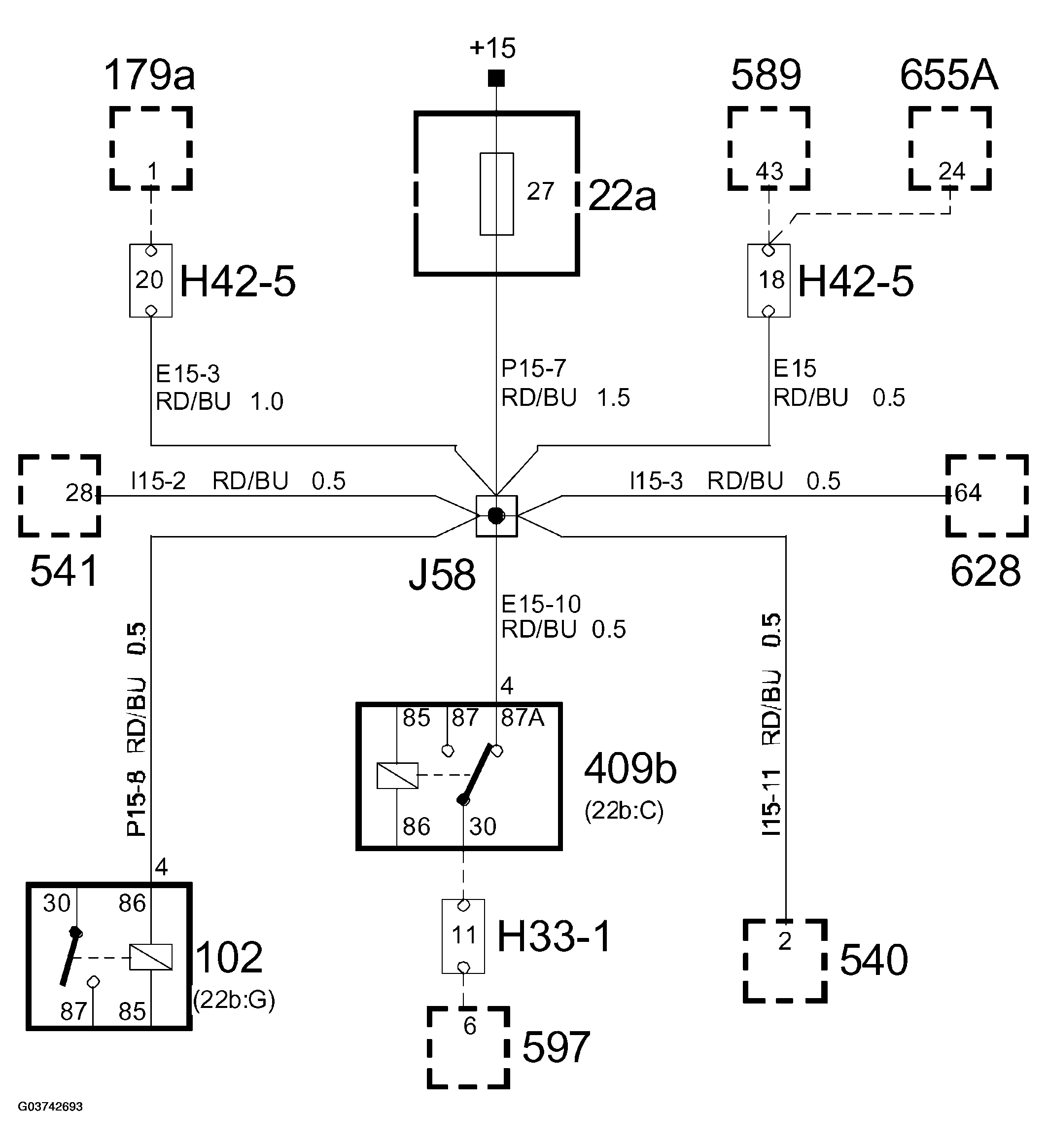

Fig 1: Crimp Connection J58 Circuit Diagram
G03742693Courtesy of SAAB-SCANIA OF AMERICA, INC.
