To remove

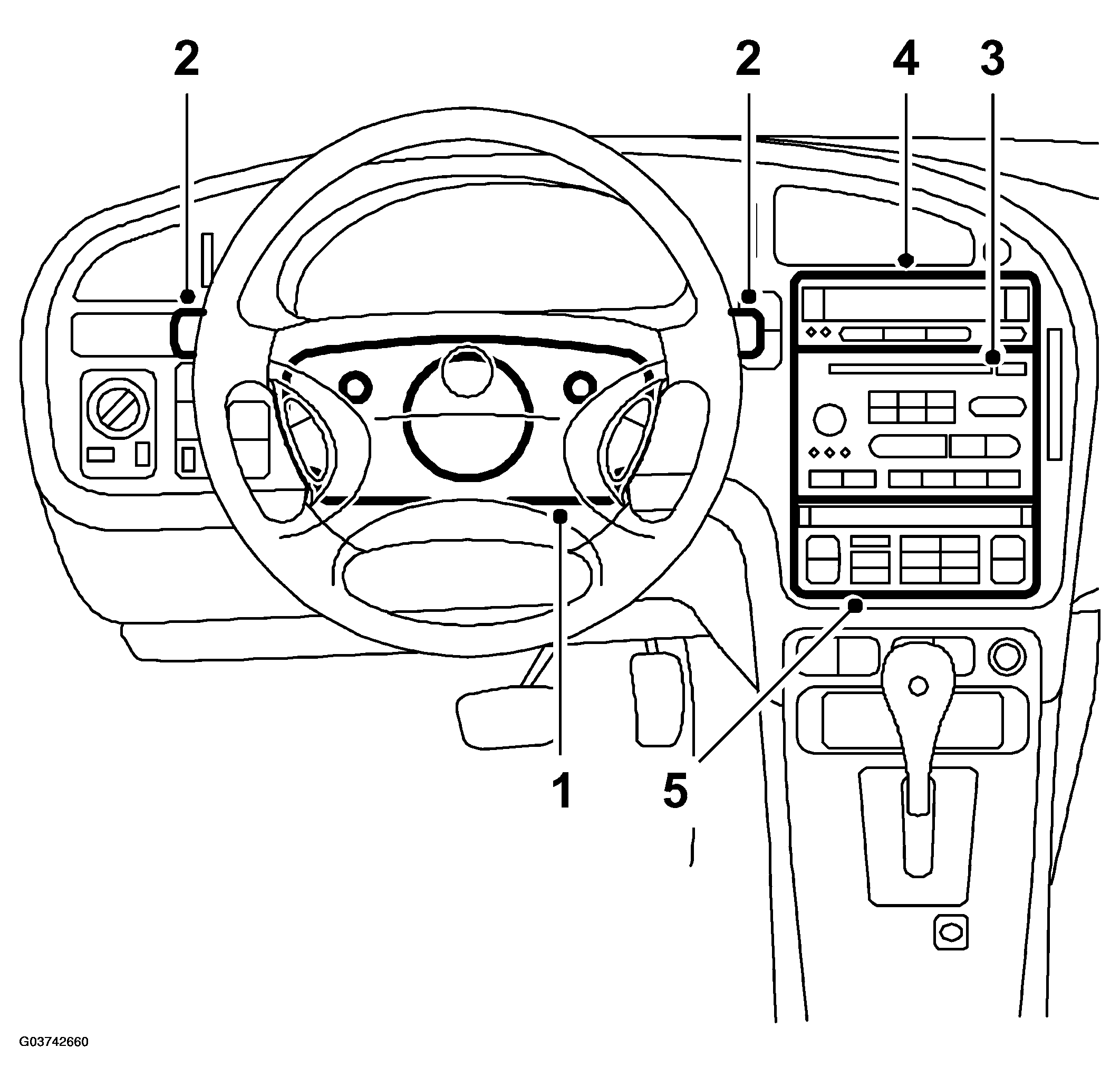

Fig 1: Illustration For Steps 1 To 5
G03742660Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove upper and lower steering column cowls, 3 screws.
  2. Remove the direction indicator and windscreen wiper switch.
  3. Remove the radio.
  4. Remove the SID unit.
  5. Remove the ACC/heating and ventilation unit (not the seat heating unit).
  6. Remove the switches to the right of the steering wheel.

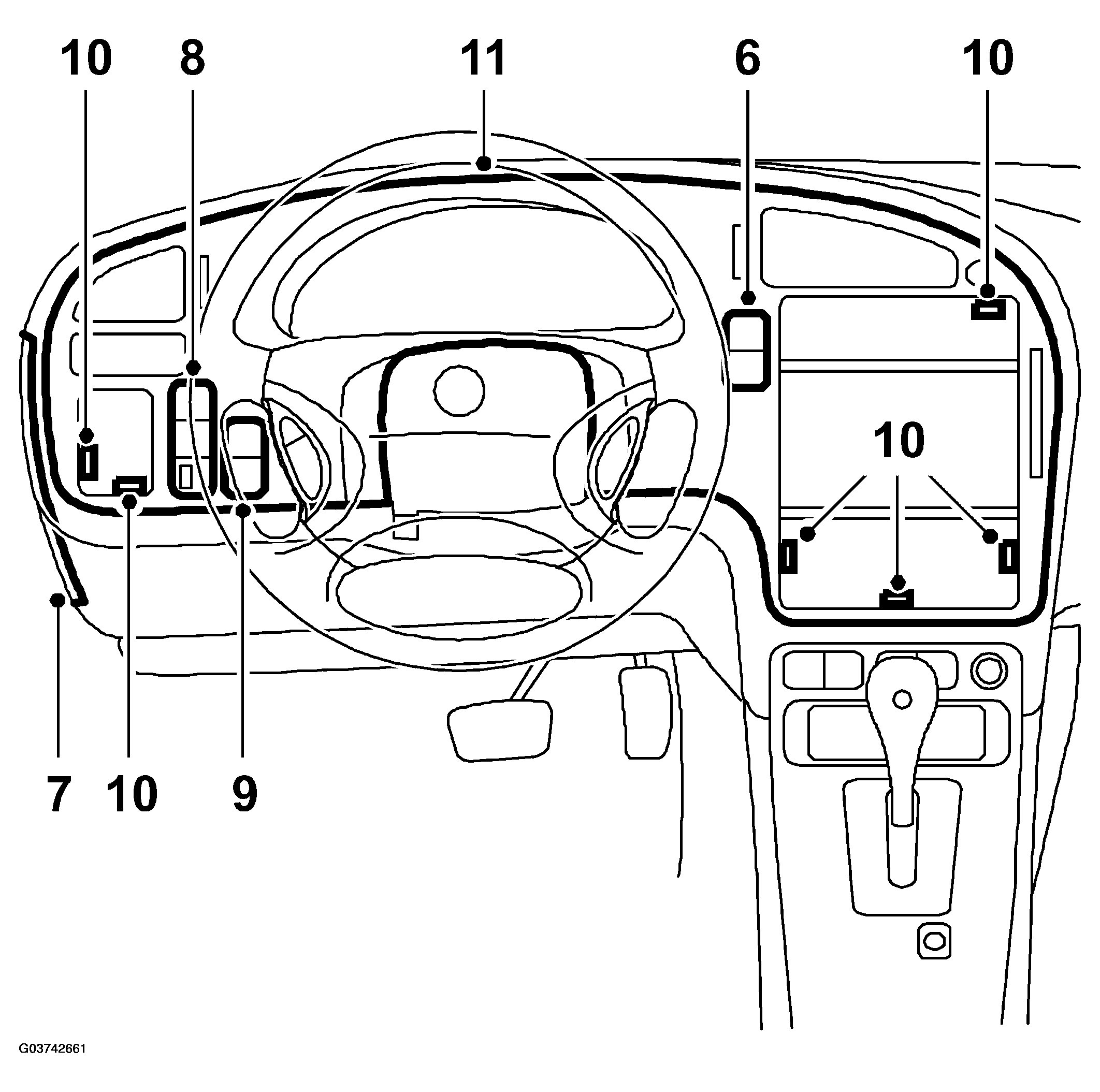

    Fig 2: Illustration For Steps 6 To 11
    G03742661Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Remove the fuse cover.
  8. Unplug the light switch and press out the unit. Unplug the three switch connectors to the left of steering wheel, making a note of their order (black, green and orange).
  9. Remove the two button blanks.
  10. Remove the instrument panel screws and clips.
  11. Remove the instrument panel.
  12. Remove the screws securing the main instrument unit.

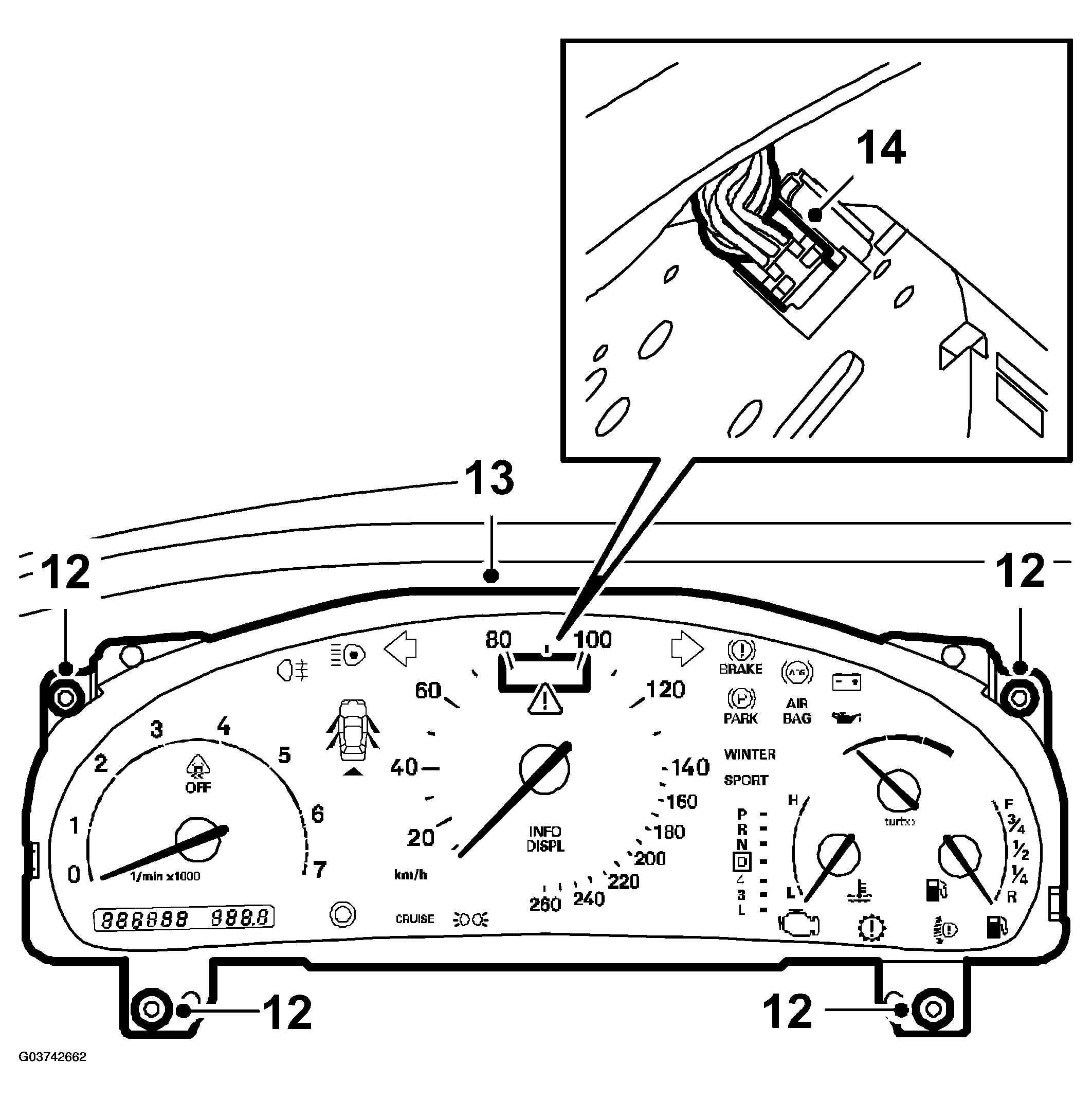

    Fig 3: Illustration For Steps 12 To 14
    G03742662Courtesy of SAAB-SCANIA OF AMERICA, INC.
  13. Tip the main instrument unit backward.
  14. Unplug the connector.
  15. Lift out the main instrument unit.
