SPD W (speed warning)

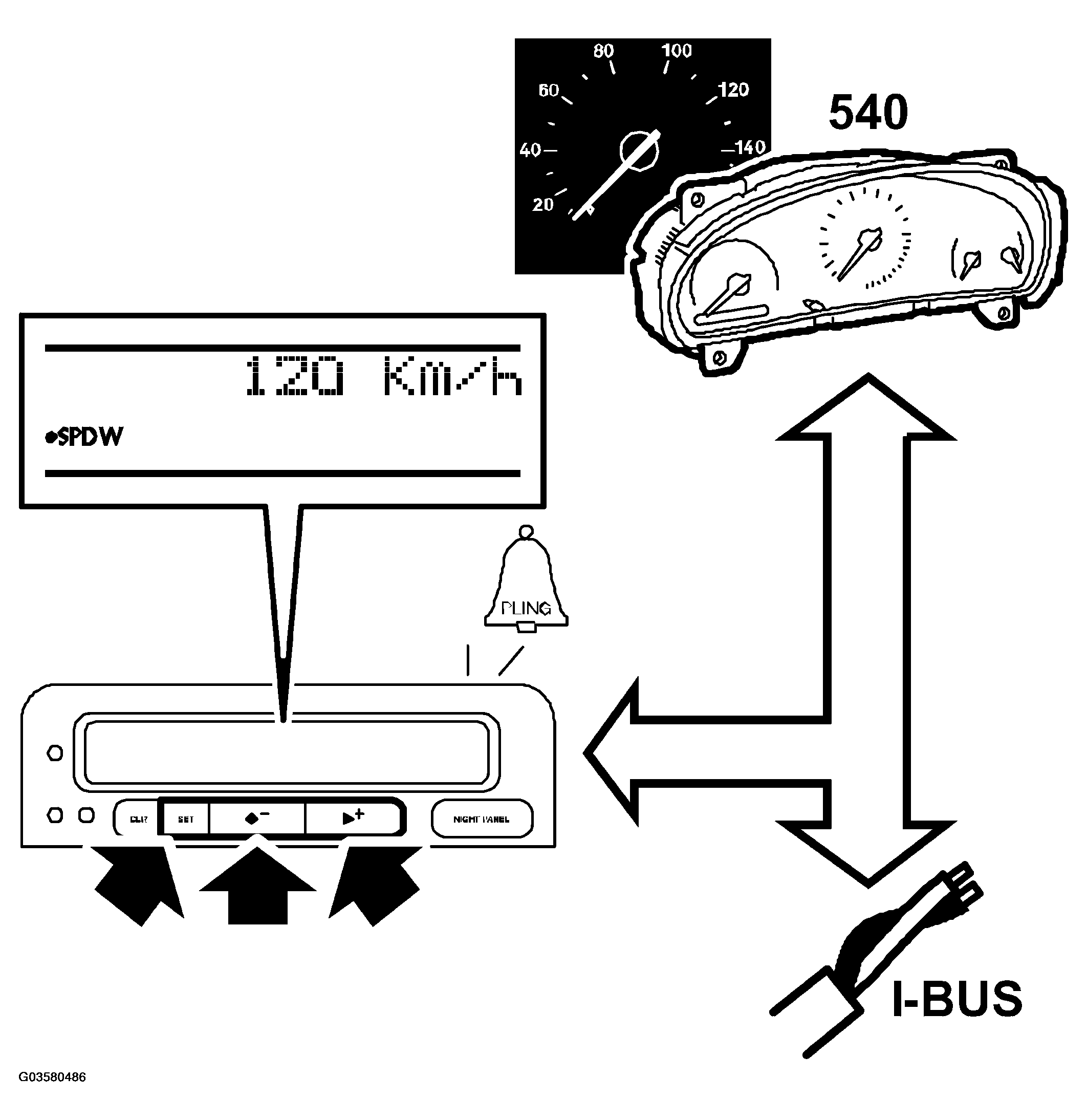

Fig 1: Communication Diagram - SPD W (Speed Warning)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Speed warning uses information on:

• Speed, unit km/h, mph (bus information from MIU).
• Programmed speed for warning

The speed warning can be programmed between 0 and 250 km/h (0-155 mph). If the car exceeds the programmed speed, an acoustic signal is heard every 3 seconds and the text "SPDW" flashes on the display at a frequency of 1 Hz (once a second).
