Setting the year, month and day in SID 2.

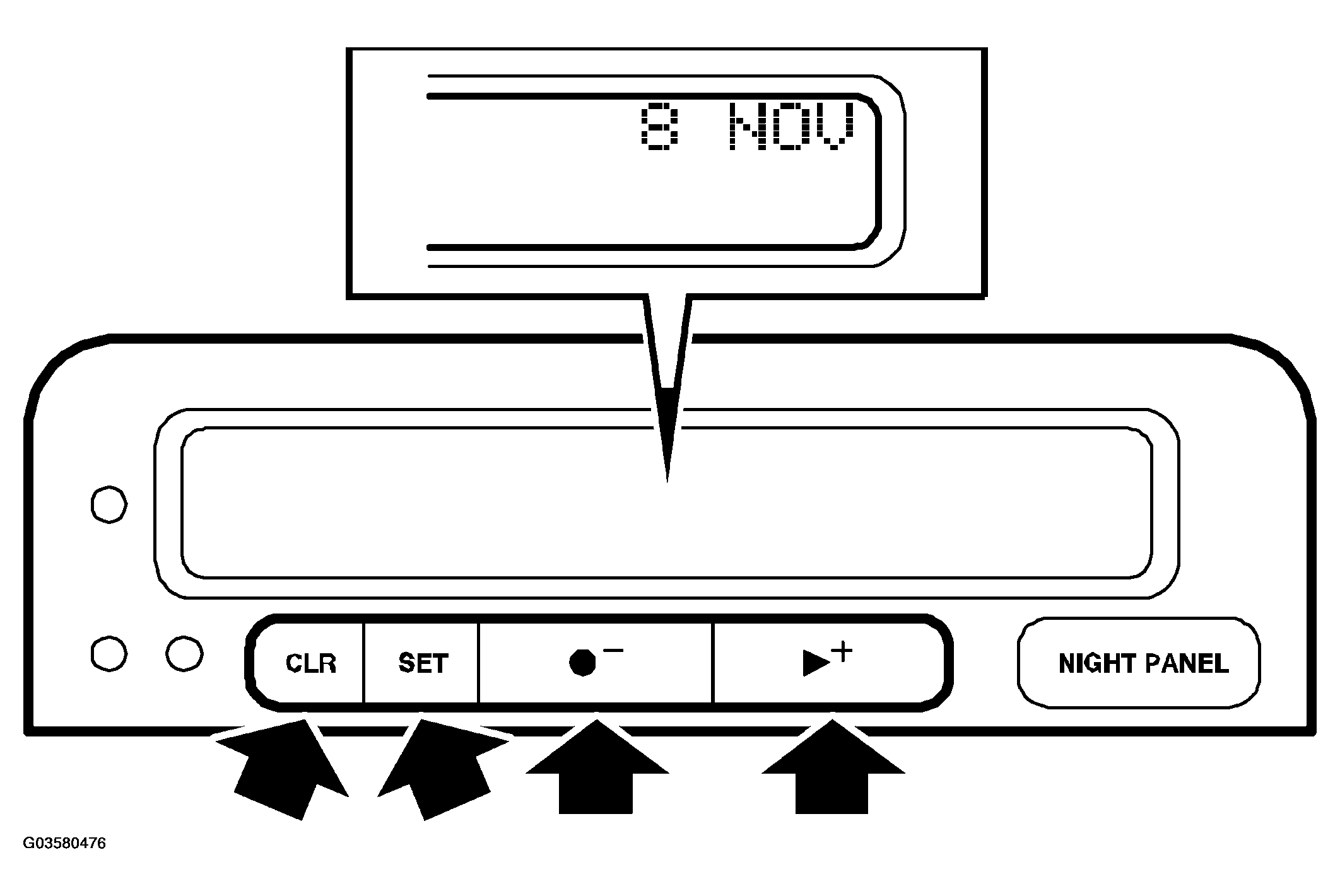

Fig 1: Setting Year (Month And Day In SID 2)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Select function "TEMP".
2. Hold down the SET button for longer than 1 second, "year" begins to flash.
3. Select the year in steps down/up using the Dot (-) or Arrow (+) buttons (scroll down/up).
4. Press "SET", the year is stored in the SID unit.
5. "Month" begins to flash. Select in the same way as step  3 .
6. Press "SET" to store the "month".
7. "Date" begins to flash. Select in the same way as step  3 .
8. Press "SET" to store the "date".

Year, month and date are stored if the SET or CLR button is pressed, and if the ignition is turned off.
