Time Function: Notes

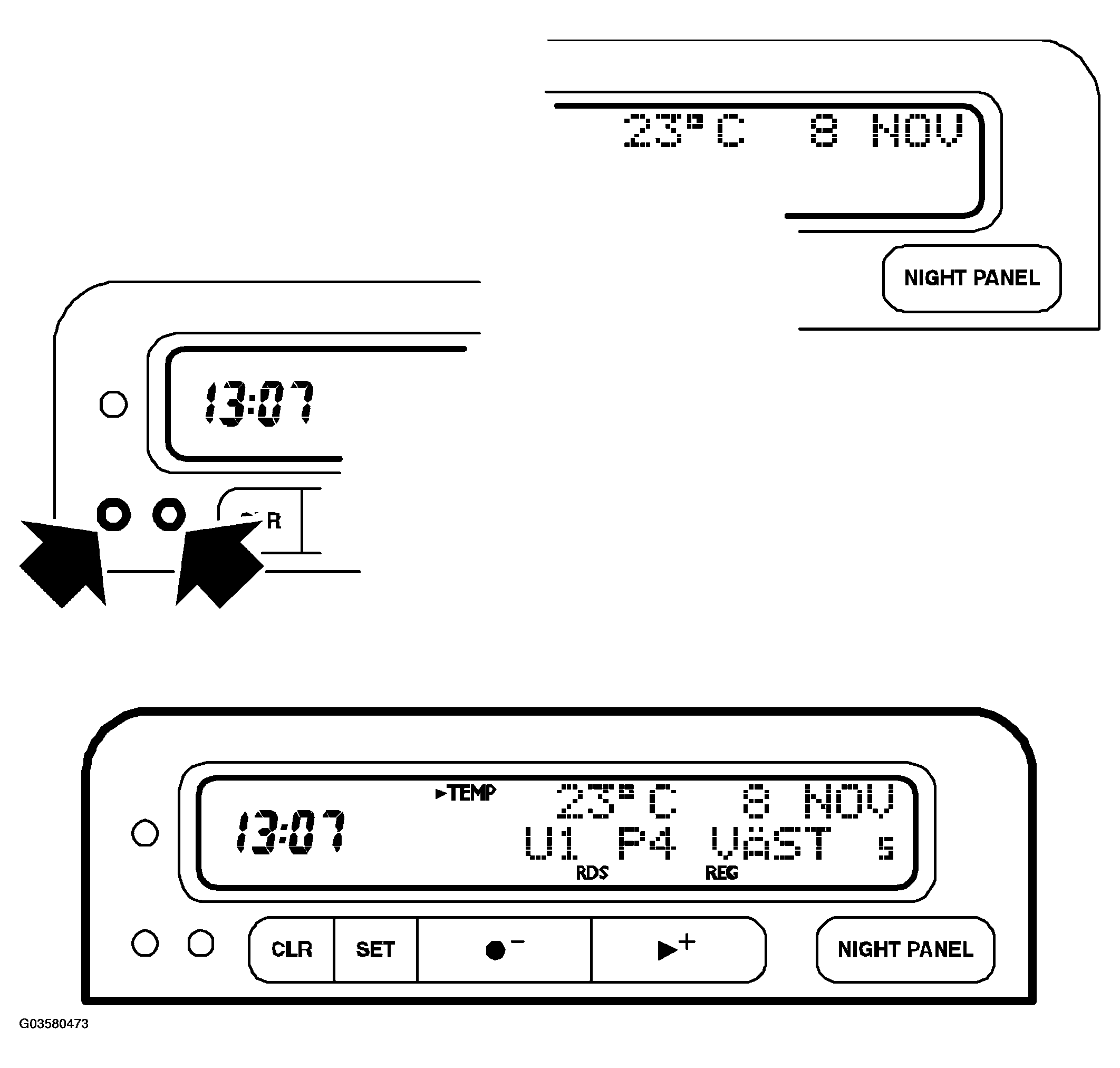

Fig 1: Identifying Time Function

Courtesy of SAAB-SCANIA OF AMERICA, INC.

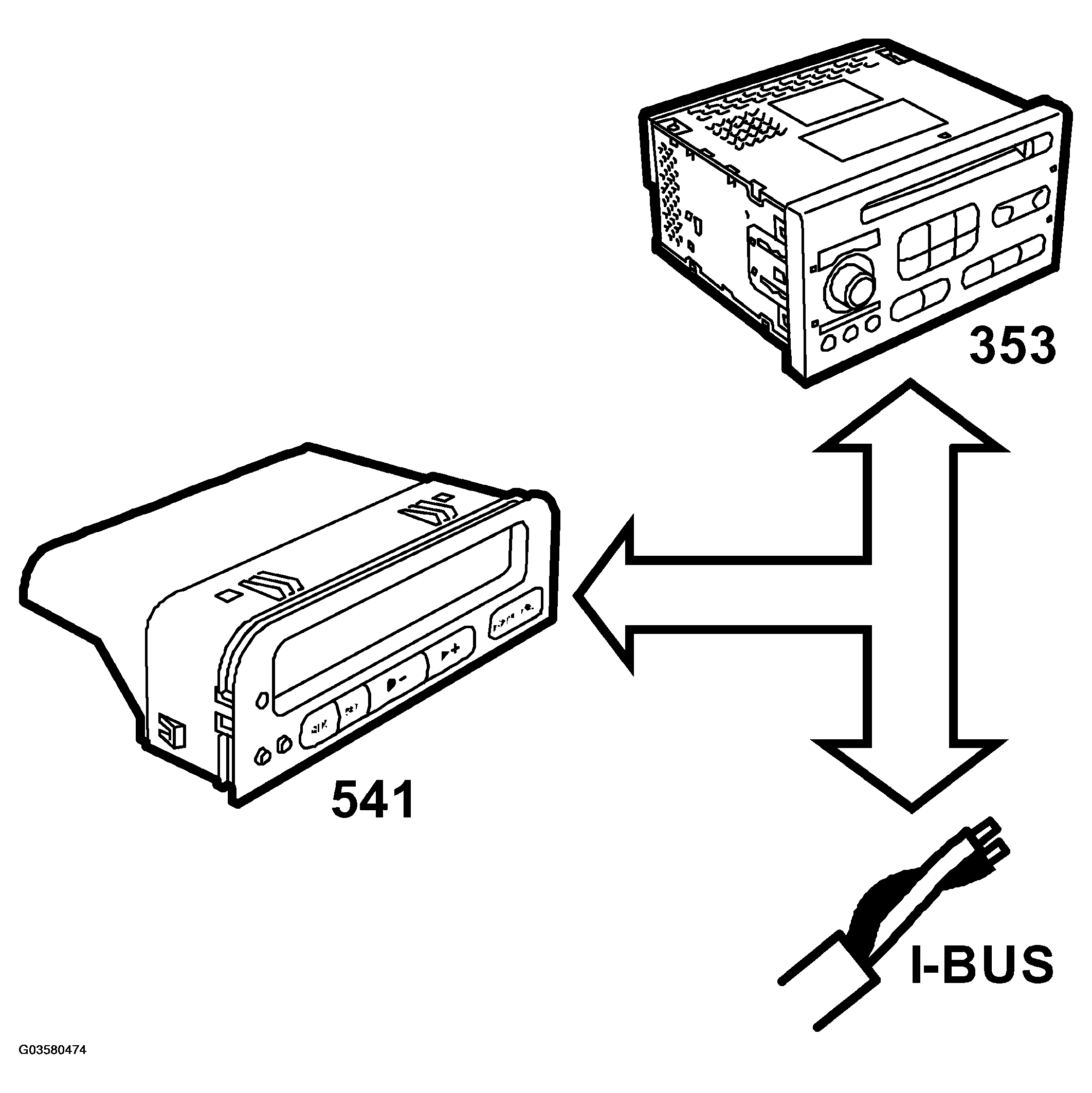

Fig 2: Communication Diagram - Time Function

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The SID unit contains a time function with the current time, date, month and year. A digital clock situated in the top left corner is always visible when the SID display is on. The month and date are shown only when the TEMP  function is selected.
