System overview, functions, cars with engine management system Trionic T7: LHD

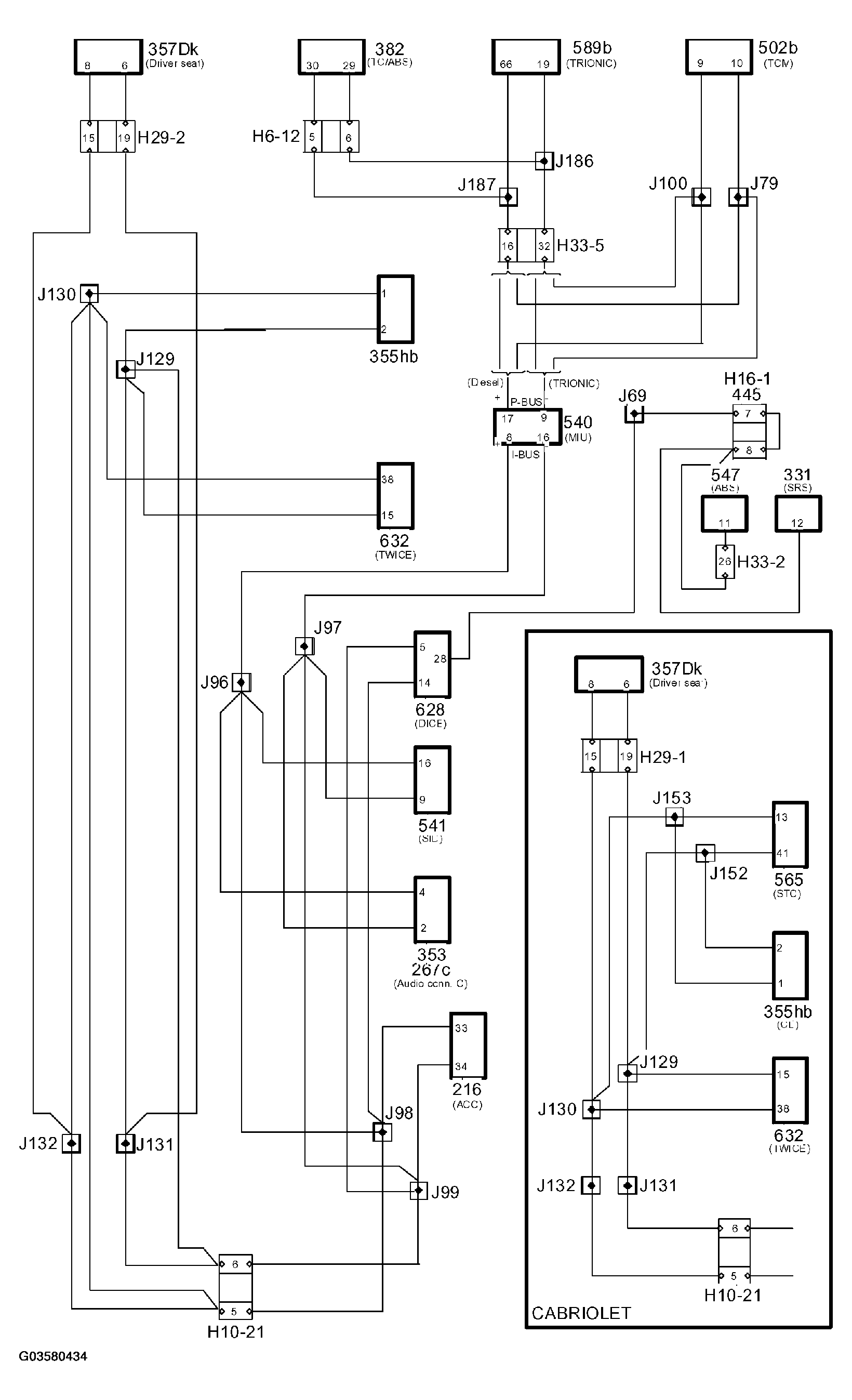

Fig 1: System Overview - Functions, Cars With Engine Management System Trionic T7 (LHD)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

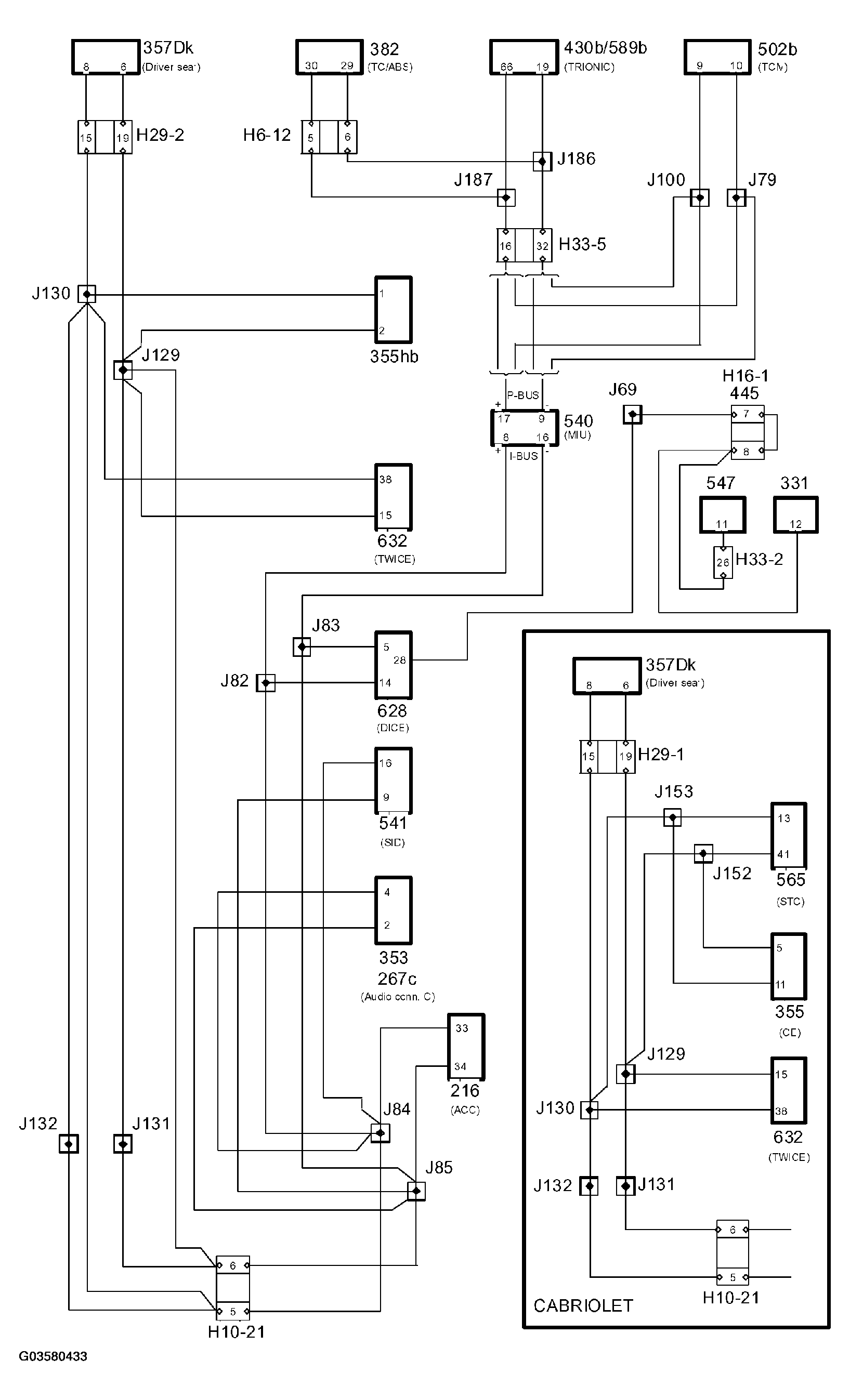

Fig 2: System Overview - Functions, Cars With Engine Management System Trionic T7 (RHD)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
