System overview, functions, cars with engine management system PSG 16: LHD

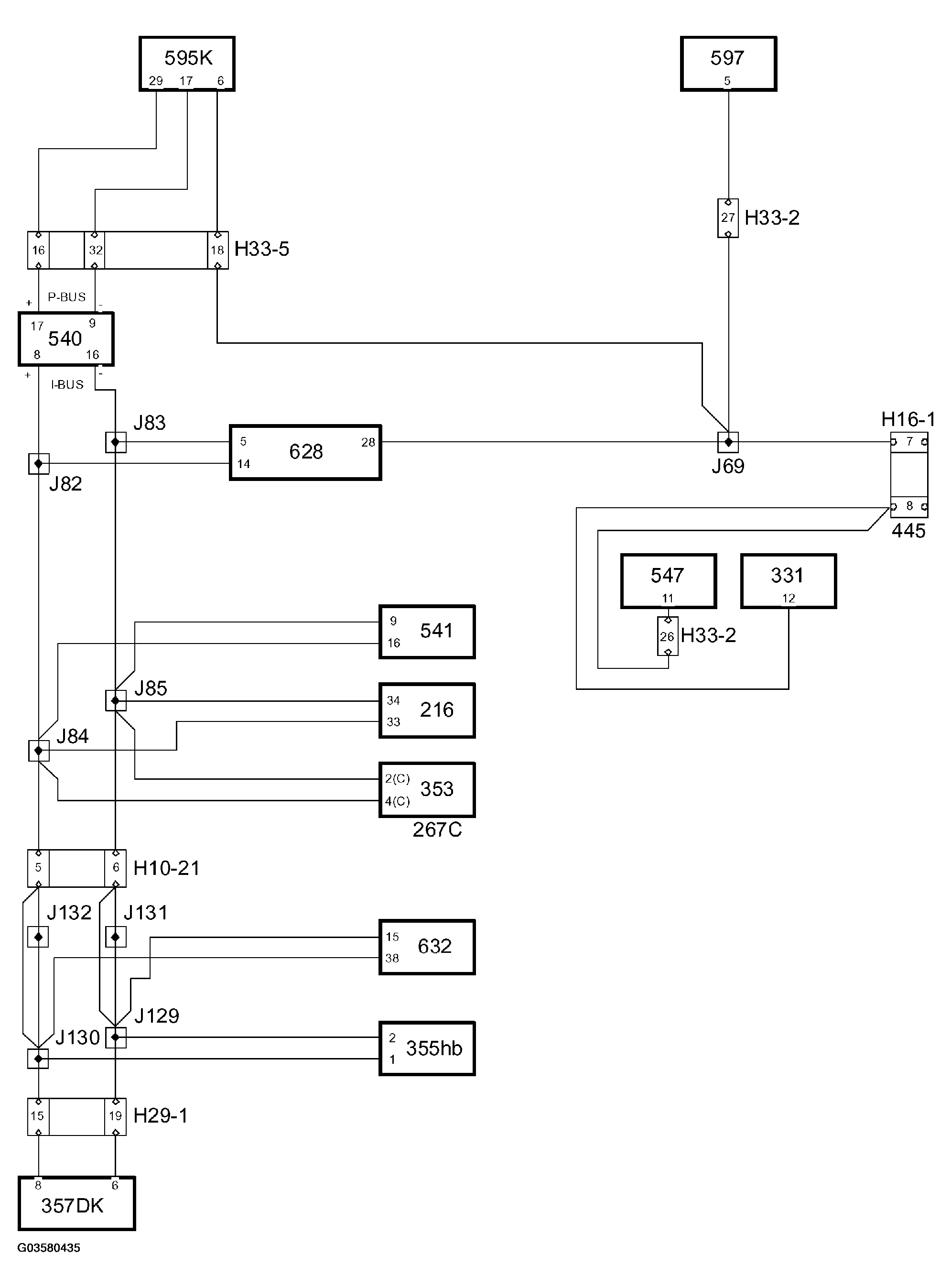

Fig 1: System Overview - Functions, Cars With Engine Management System PSG 16 (LHD)
G03580435Courtesy of SAAB-SCANIA OF AMERICA, INC.

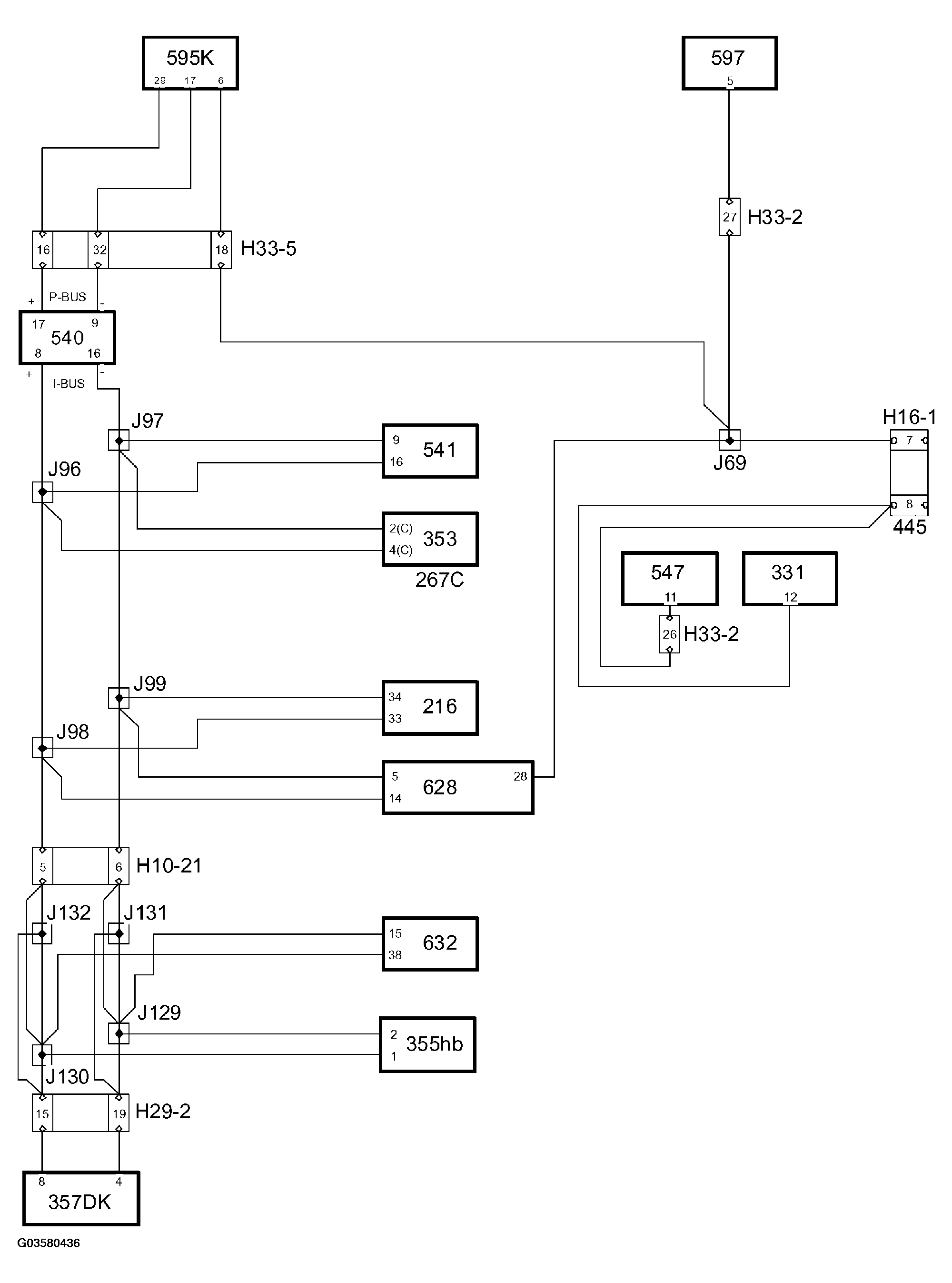

Fig 2: System Overview - Functions, Cars With Engine Management System PSG 16 (RHD)
G03580436Courtesy of SAAB-SCANIA OF AMERICA, INC.
