System overview, components connected to K lead, PSG 16

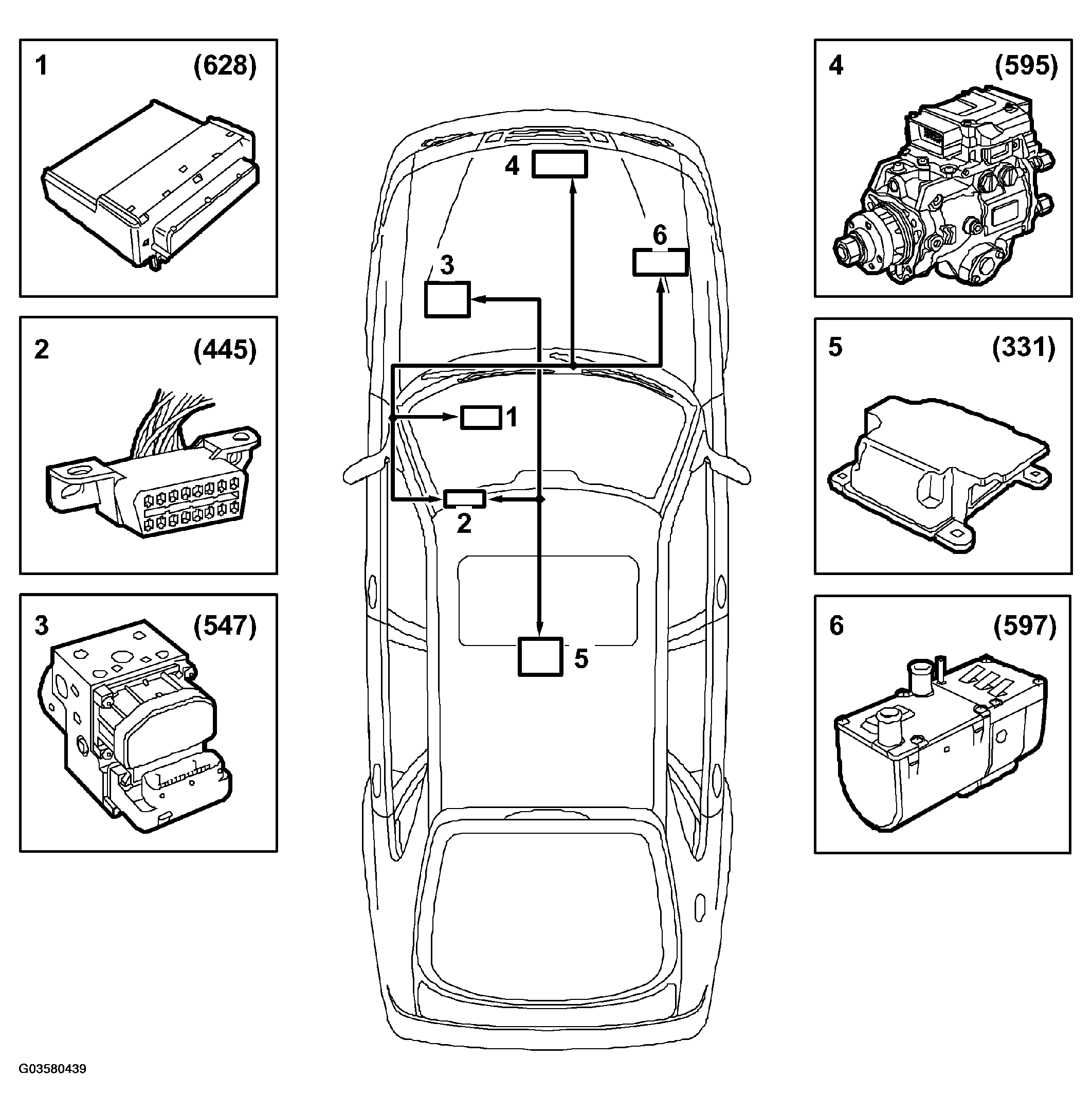

Fig 1: Identifying Components Connected To K Lead (PSG 16)

G03580439

Courtesy of SAAB-SCANIA OF AMERICA, INC.

DICE (Dashboard Integrated Central Electronics) (628)
Data link connector (H16-5/445)
ABS (Anti-lock Brake System) (547)
PSG 16, engine management system diesel (595)
Airbag (SRS) (331)
DAH (Diesel Additional Heater) (597)
