SID unit outputs, bus

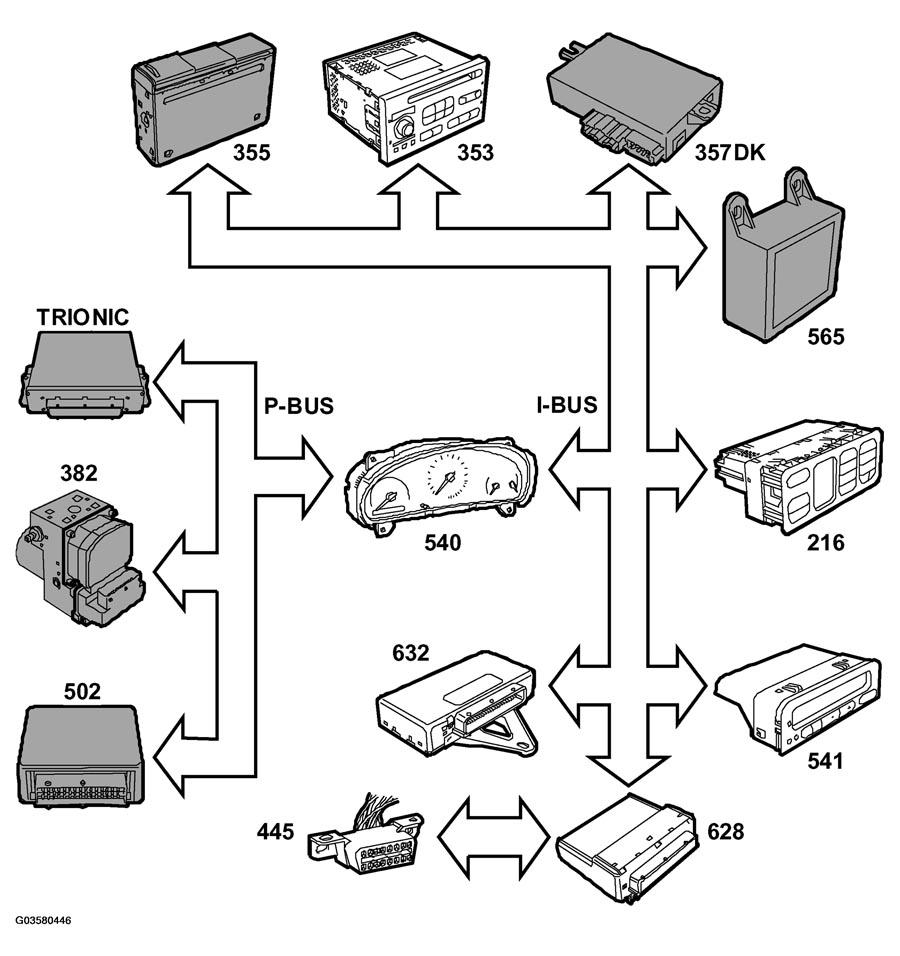

Fig 1: Communication Diagram - SID Unit Outputs

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Info Disp Lamp (ON/OFF) used by MIU (540).
Unit (°C/°F) used by ACC (216).
Language (Swedish, English, German, French, Italian, Spanish) used by ACC (216).
Steering wheel controls used by Audio (353).
Rheostat value (%) used by Audio (353), ACC (216), DICE (632), MIU (540).
Night Panel (ON/OFF) used by Audio (353), ACC (216), DICE (632), MIU (540).
Display lighting (%) used by ACC (216), MIU (540).
Light intensity inside vehicle (Lux) used by MIU (540).
Engine Off Time (Min) used by ACC (216).
Outdoor temperature (°C/°F) used by ACC (216), TWICE (632), DICE (628).
Glass breakage sensor (ON/OFF) used by TWICE (632).
Diagnostics communication
