Technical Description
>>
SID unit inputs
SID unit inputs

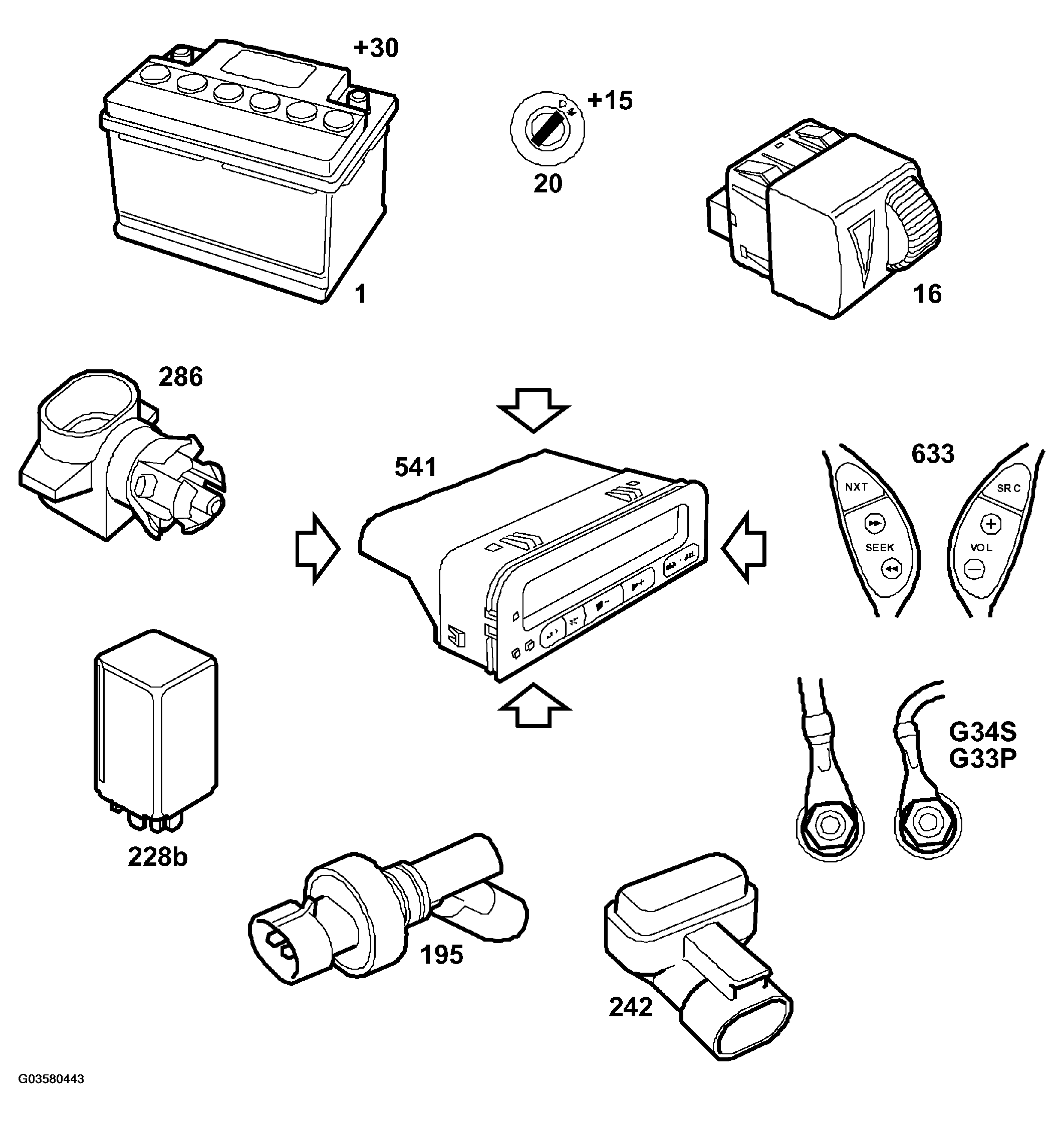

Fig 1: Identifying SID Unit Inputs
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Power supply (+30 circuit) (1)
Power supply (+15 circuit) (20)
Ground (G34S)
Rheostat (16)
Steering wheel controls (633)
Engine coolant level (242)
Washer fluid level (195)
Filament monitor (228B)
Temperature, outside air (286)
