SID unit inputs, bus

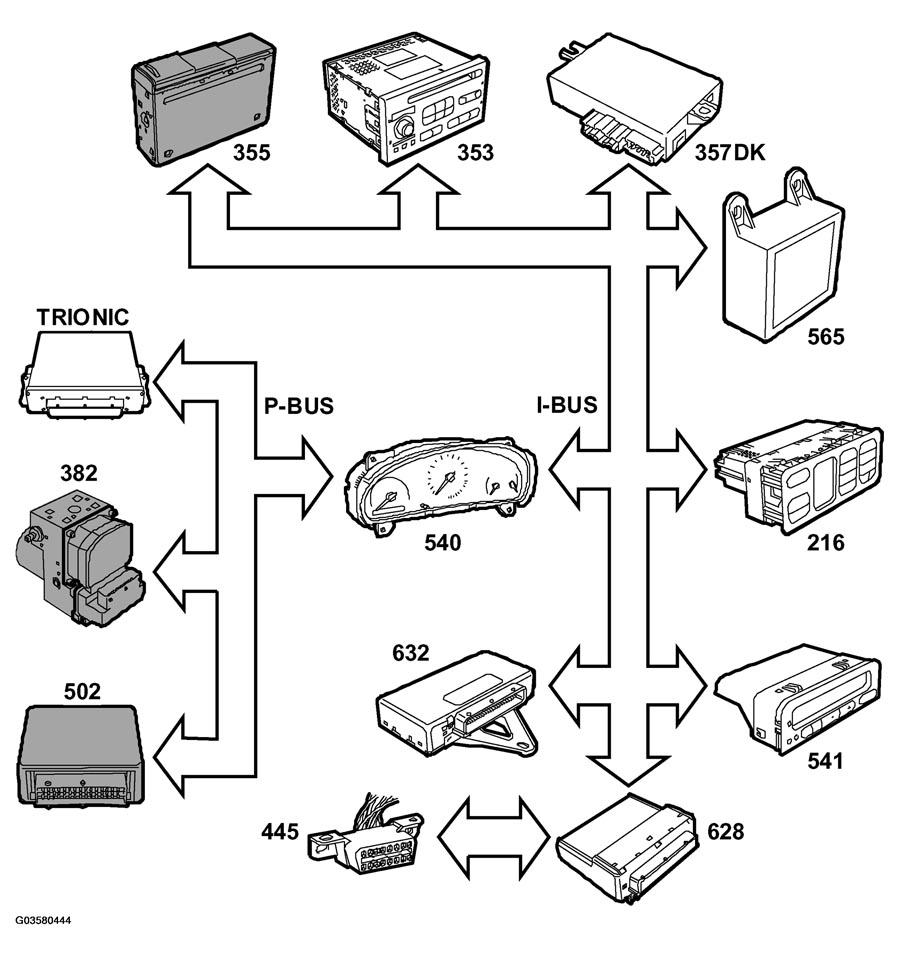

Fig 1: Communication Diagram - SID Unit Inputs

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Position lights (ON/OFF) from DICE (628)
Rear Fog Light Broken (YES/NO) from DICE (628)
Direction Indicators Left (ON/OFF) from DICE (628)
Direction Indicators Right (ON/OFF) from DICE (628)
Sound from DICE (628), TWICE (632), ACC (216), AUDIO (353), MIU (540), PSM (357dK), STC (565)
Left Rear Light Broken (YES/NO) from TWICE (632)
Right Rear Light Broken (YES/NO) from TWICE (632)
Left Brake Light Broken (YES/NO) from TWICE (632)
Right Brake Light Broken (YES/NO) from TWICE (632)
High Level Brake Light Broken (YES/NO) from TWICE (632)
Brake Lights (ON/OFF) from TWICE (632)
Horn (ms) from TWICE (632)
Text message from TWICE (632), ACC (216), AUDIO (353), MIU (540), STC (565), Trionic, PSG 16
RDS time from AUDIO (353)
RDS date from AUDIO (353)
RDS month from AUDIO (353)
Vehicle speed (km/h, mph) from MIU (540)
Fuel level (liters) from MIU (540)
Mileage (km, miles) from MIU (540)
Engine Running (ON/OFF) from ACC (216)
Fuel Consumed Since Start (ml) from MIU (540), PSG 16
Coolant temperature (°C/°F) from Trionic, PSG 16
Oil level (Low) from PSG 16
Diagnostics communication
