Technical Data: Rheostat

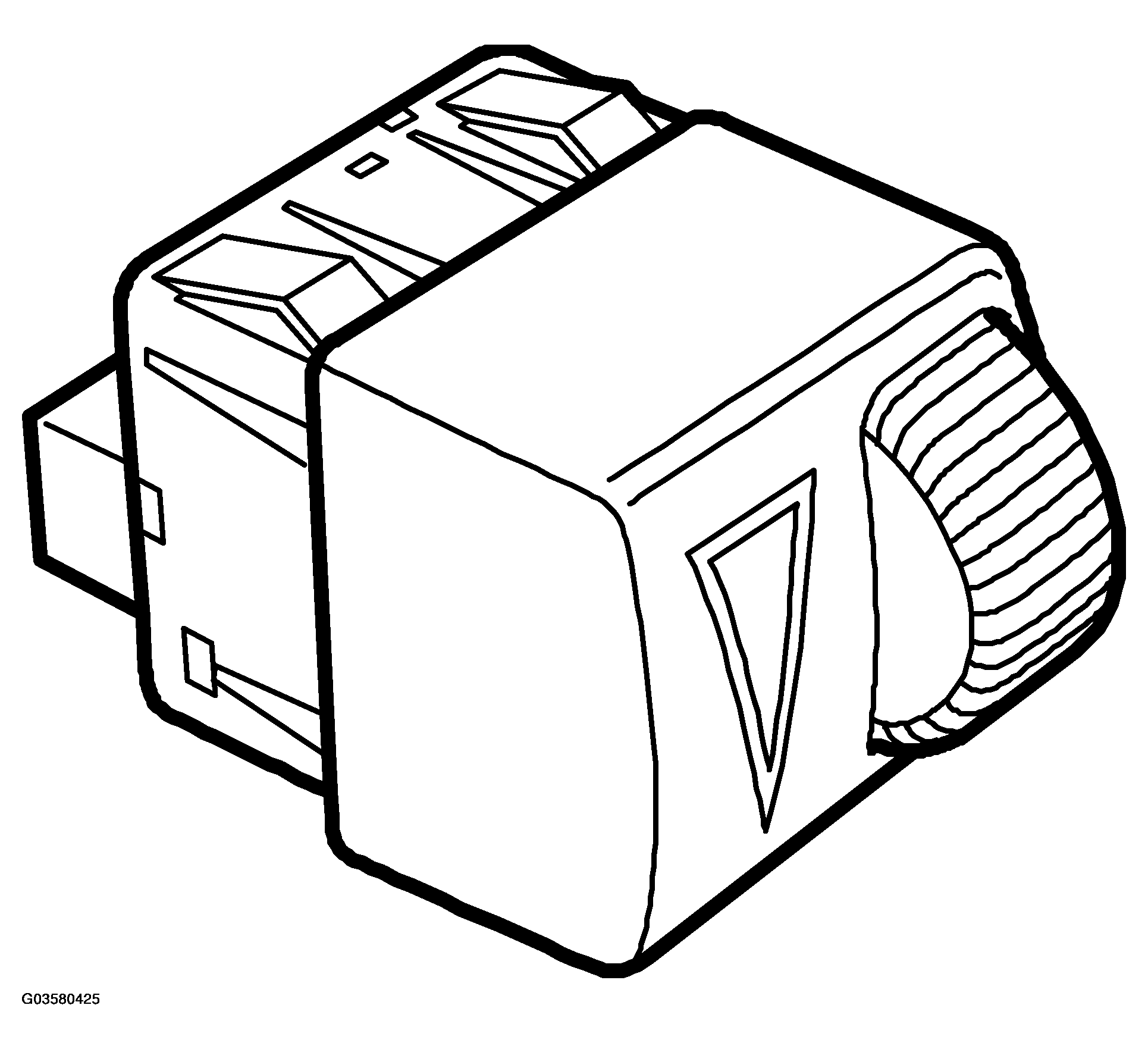

Fig 1: Identifying Rheostat

Courtesy of SAAB-SCANIA OF AMERICA, INC.

RHEOSTAT REFERENCE DATA

Location		To the left of the steering wheel in the instrument panel
Power supply	V	5 (from SID unit)
Resistance (Rheostat potentiometer)	min, ohm max, ohm	= 10 1000 +/- 25%
