DTC B2371: Switch Unit, Steering Wheel - Open Circuit: Notes

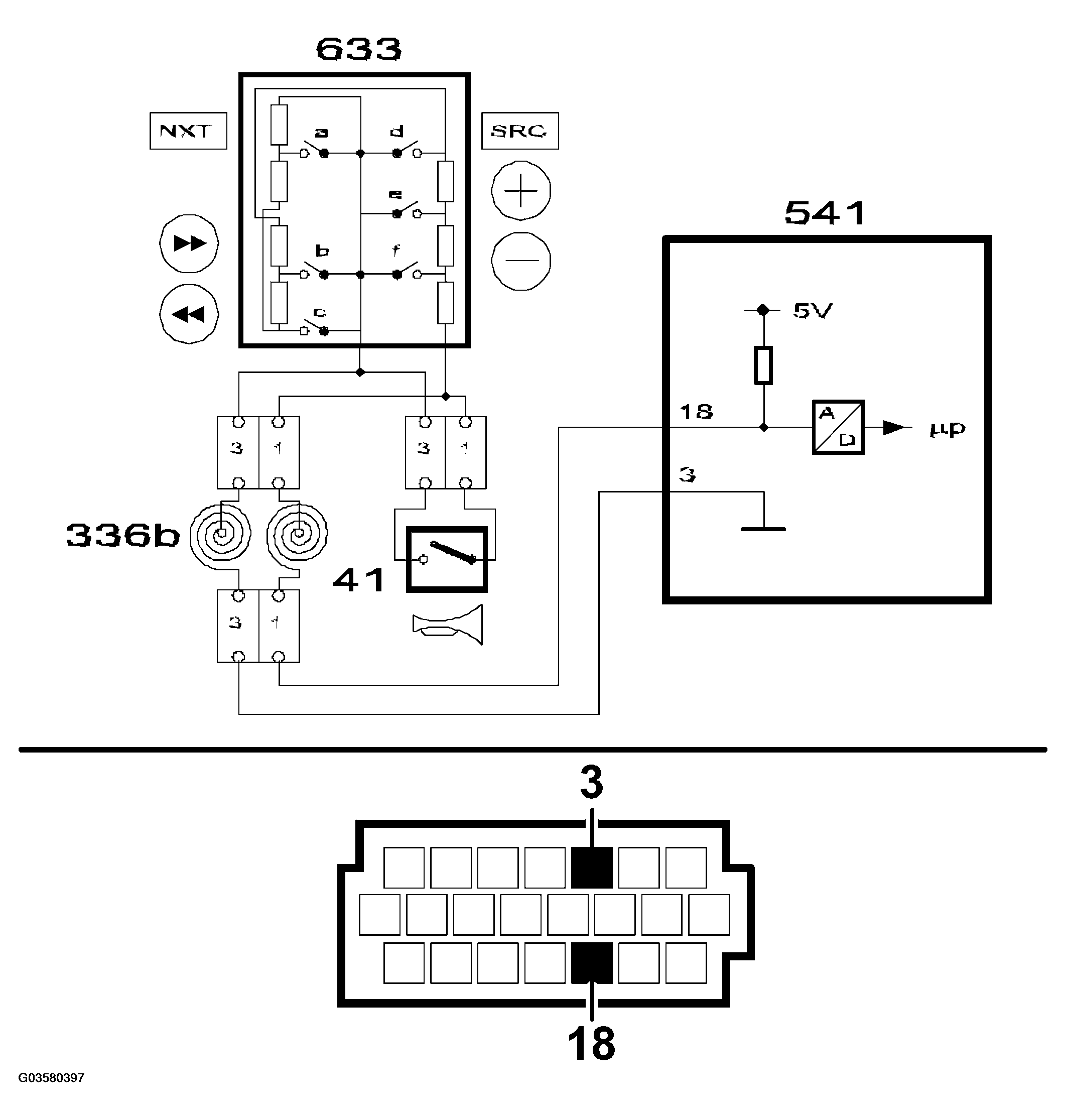

Fig 1: Fault Symptoms - B2371: Switch Unit, Steering Wheel Open Circuit Diagram

G03580397

Courtesy of SAAB-SCANIA OF AMERICA, INC.
