Temperature sensor, outdoor
>>
To remove
To remove

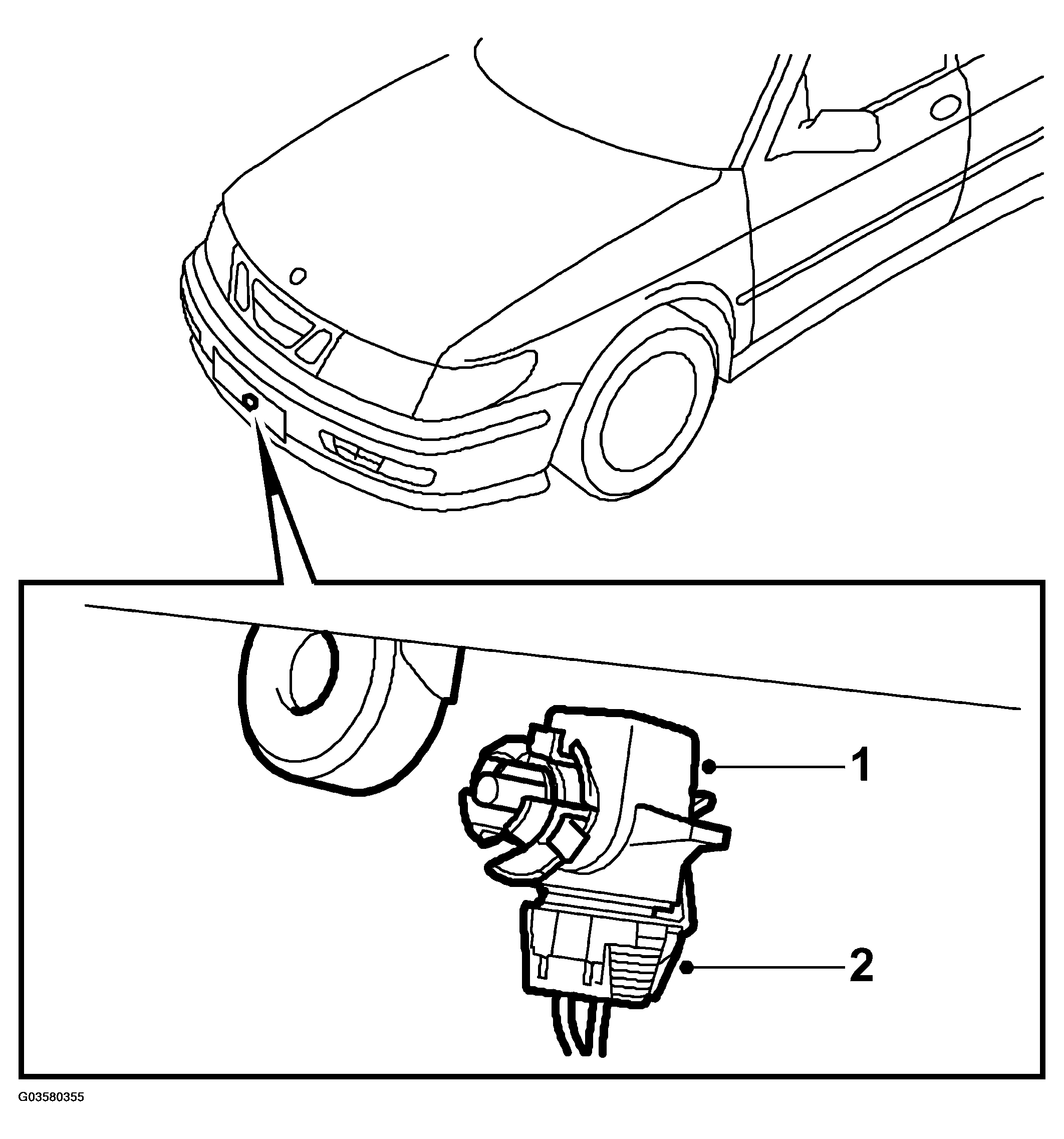

Fig 1: Illustration For Steps 1-2
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the temperature sensor from the spoiler.
Unplug the connector form the outdoor temperature sensor.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
