To fit

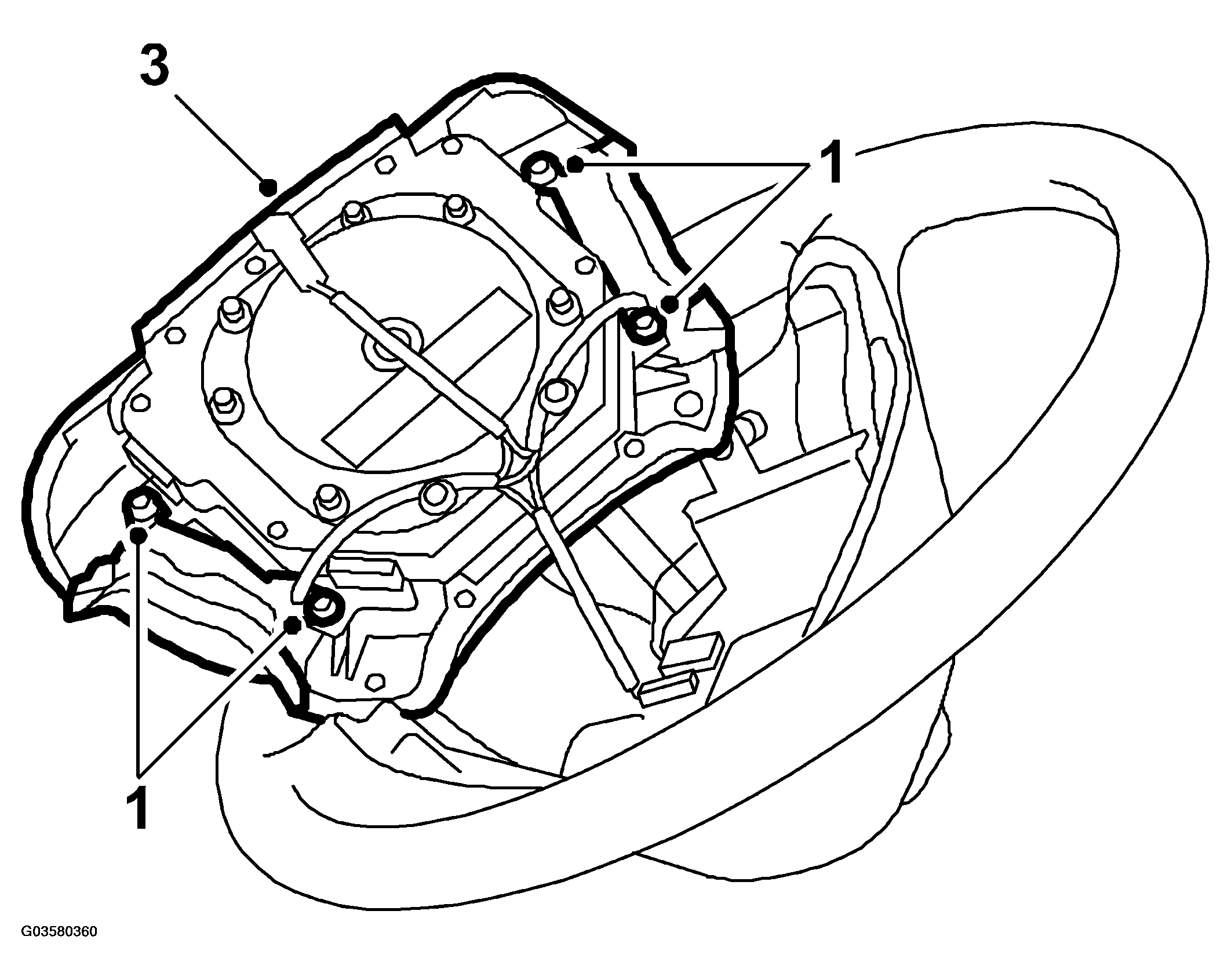

Fig 1: Illustration For Steps 1,3
G03580360Courtesy of SAAB-SCANIA OF AMERICA, INC.
WARNING: Read Group 8:6 Airbag (SRS), Technical Description, "Safety and handling instructions" before commencing work.
  1. Fit the steering wheel controls.
  2. Plug in the connector for the steering wheel controls.
  3. Refit the airbag.
