To remove

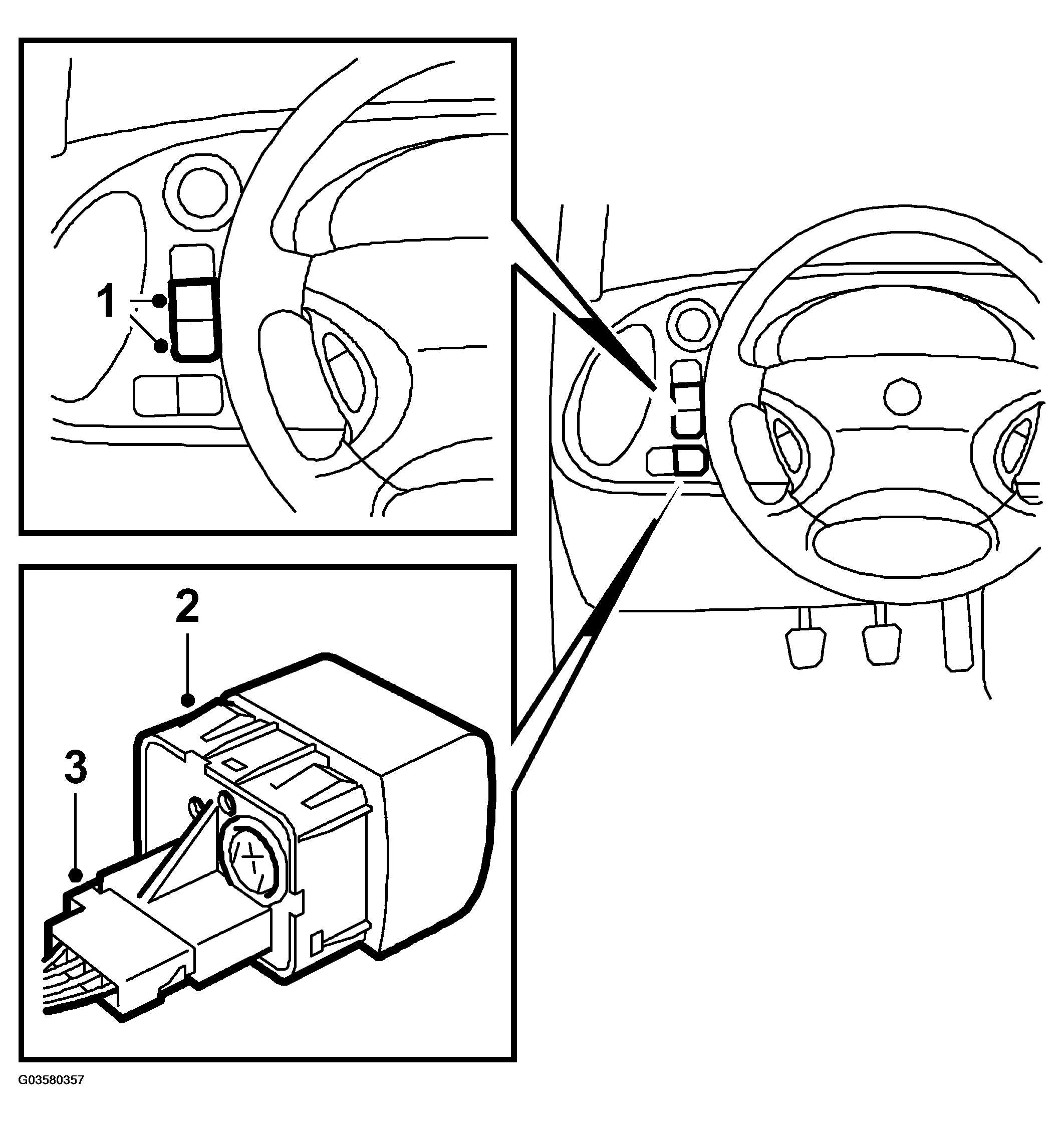

Fig 1: Illustration For Steps 1-3
G03580357Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Press in the fog light button and press out the blind/extra light switch.
  2. Press out the rheostat from behind through the hole for the blind/extra light switch.
  3. Unplug the rheostat connector.
