To fit

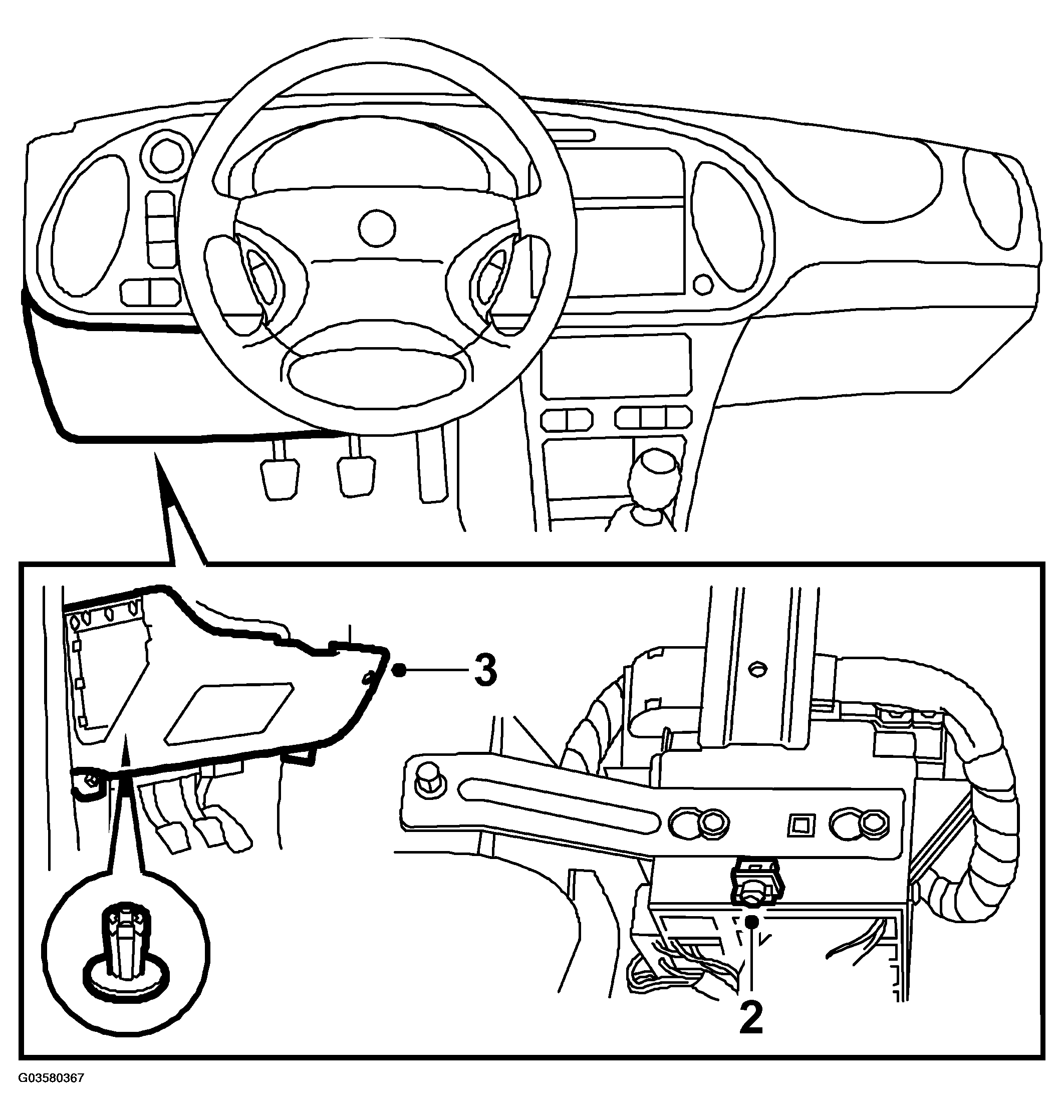

Fig 1: Illustration For Steps 2-3
G03580367Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Spray the contacts in the relay retainer with Kontakt 61 (part no. 30 04 520) and fit the relay.
  2. Reposition the relay retainer and tighten the screws.
  3. Fit the cover for the knee shield.
