To fit

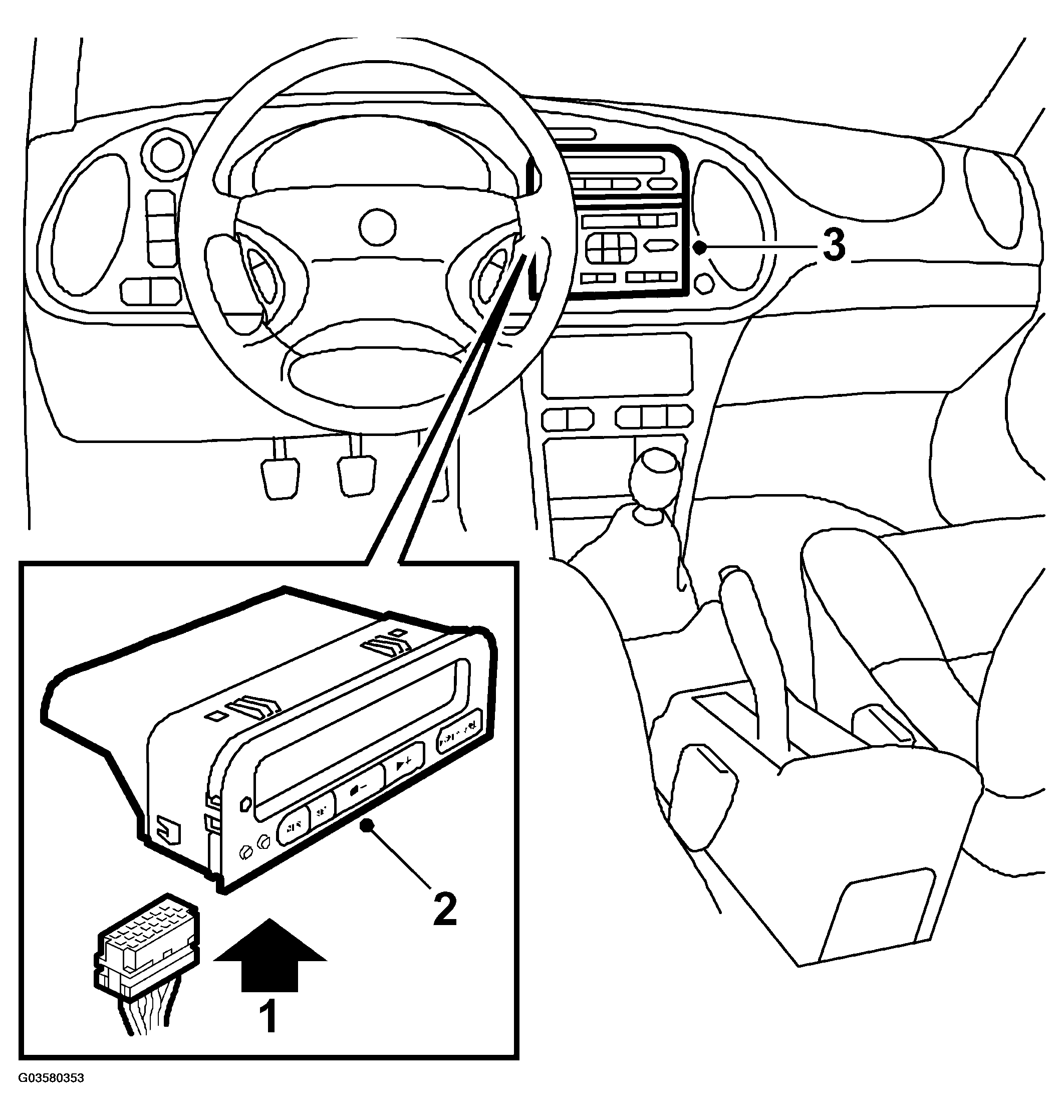

Fig 1: Illustration For Steps 2-3
G03580353Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Plug in the SID unit connector.
  2. Insert the SID unit.
  3. Refit the main unit (audio) or radio.
  4. Spare part programming must be carried out after changing the SID unit. Follow the instructions given in the diagnostic tool menu "Programming".
    NOTE: Reset the SID unit clock.
