To fit

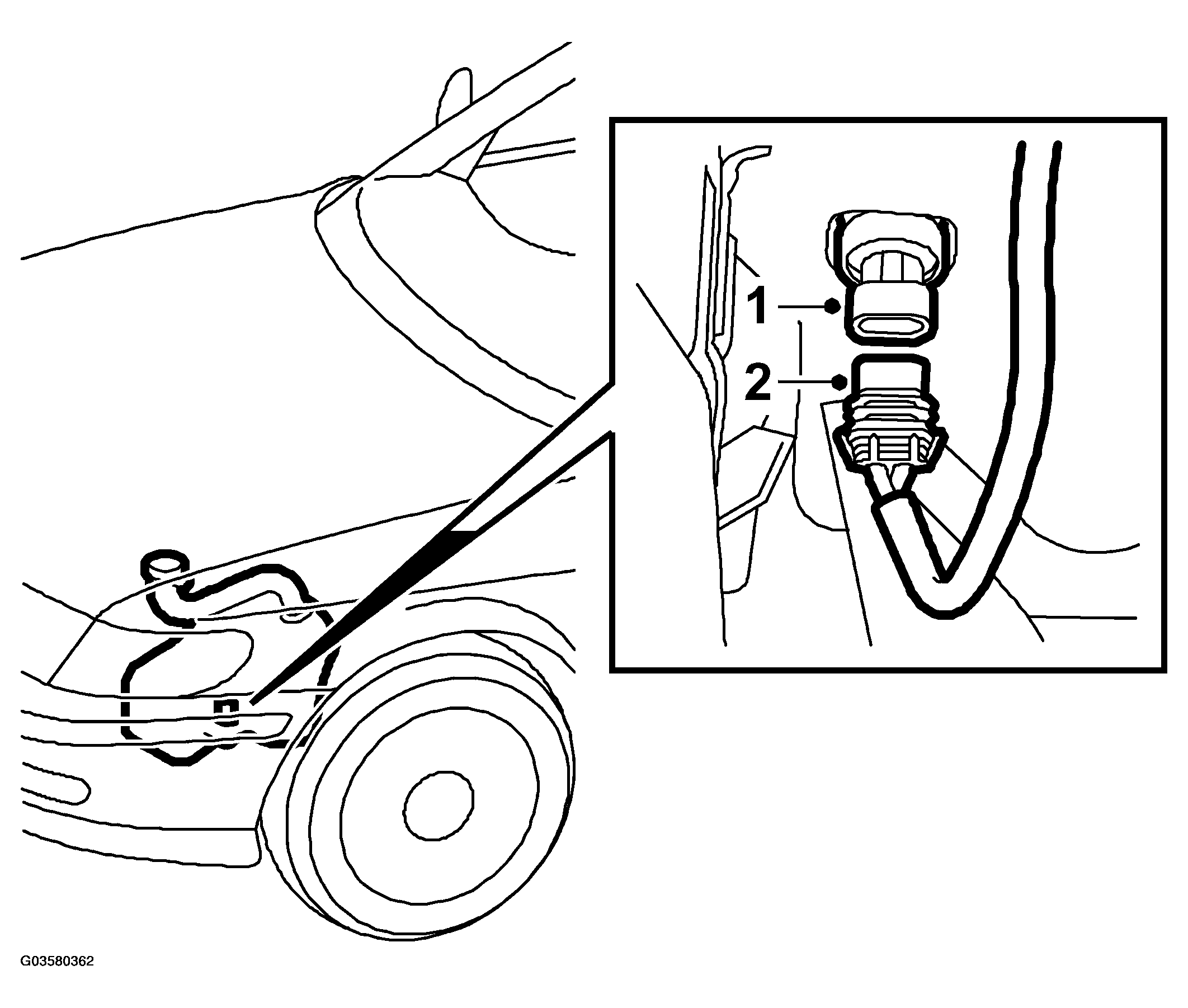

Fig 1: Illustration For Steps 1-2
G03580362Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Press the level sensor into the washer fluid reservoir with the float hanging down.
  2. Plug in the level sensor connector.
  3. Lower the car and top up with washer fluid.
