Main components: O-bus

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

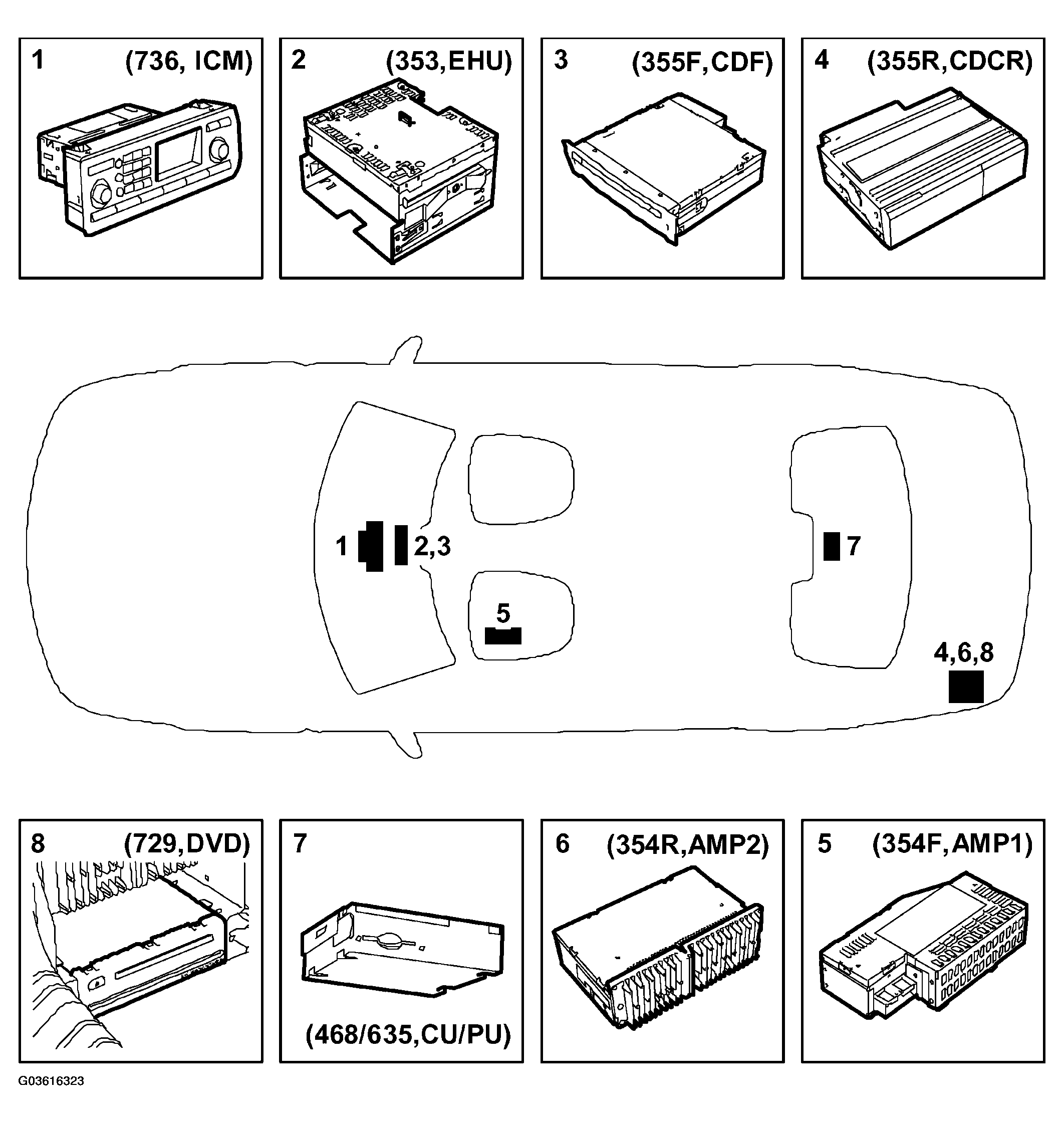

Fig 1: Identifying O-Bus Components
G03616323Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Control panel, infotainment, ICM (736)
  2. Entertainment Head Unit, EHU (353)
  3. CD player/changer, front, CDF/CDCF (355F)
  4. CD Changer Rear, CDCR (355R)
  5. Audio System Amplifier, front speakers, AMP1 (354F)
  6. Audio System Amplifier, rear speakers, AMP2 (354R)
  7. Communication unit, Positioning unit, CU/PU (468/635)
  8. Unit, DVD (729)
