One or more systems connected to the I-bus "MISSING" from the bus.: Notes

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

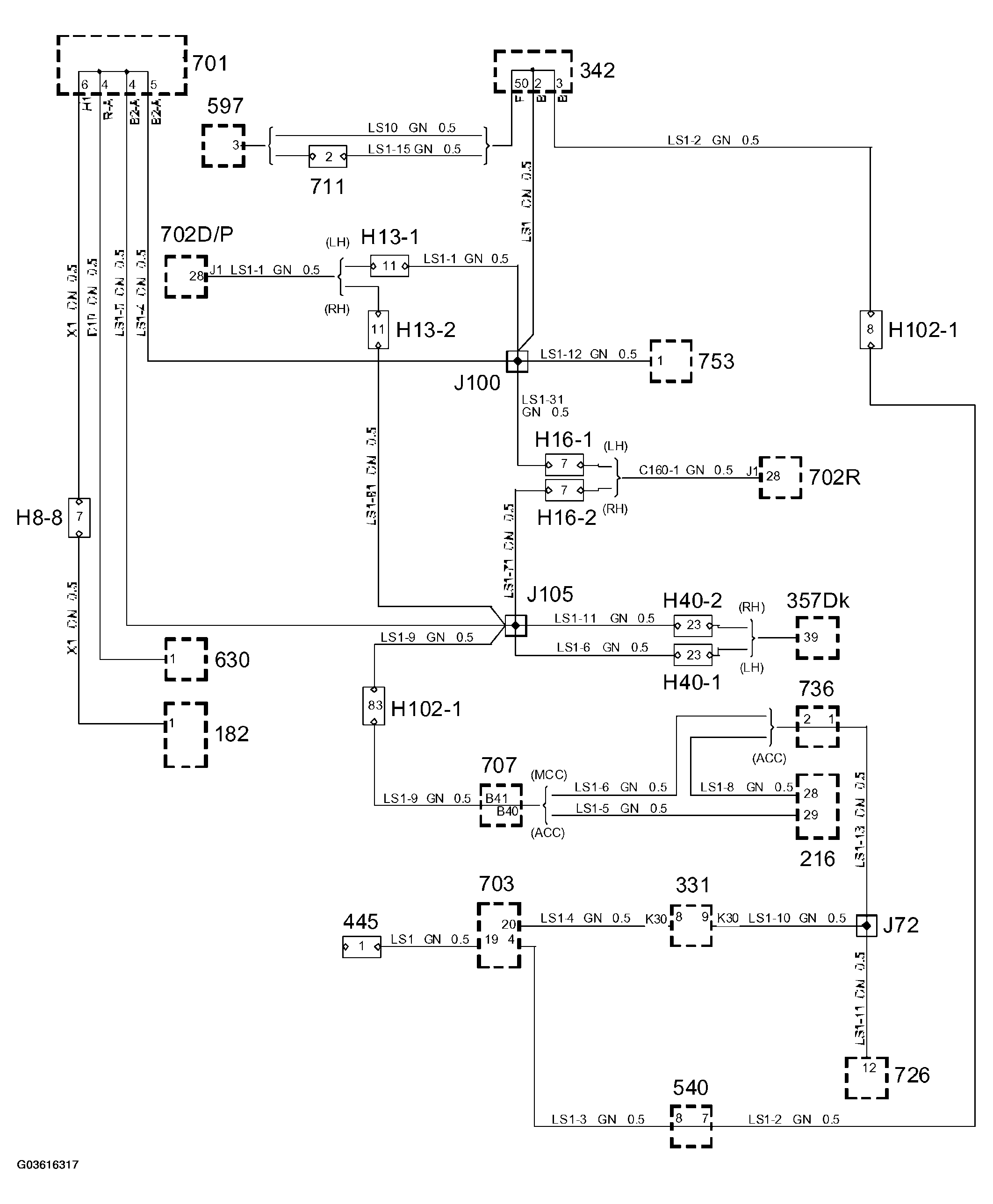

Fig 1: Identifying Wiring Diagram - One Or More Systems Connected To I-Bus MISSING From Bus
G03616317Courtesy of SAAB-SCANIA OF AMERICA, INC.
