No I-bus system can be contacted: Notes

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

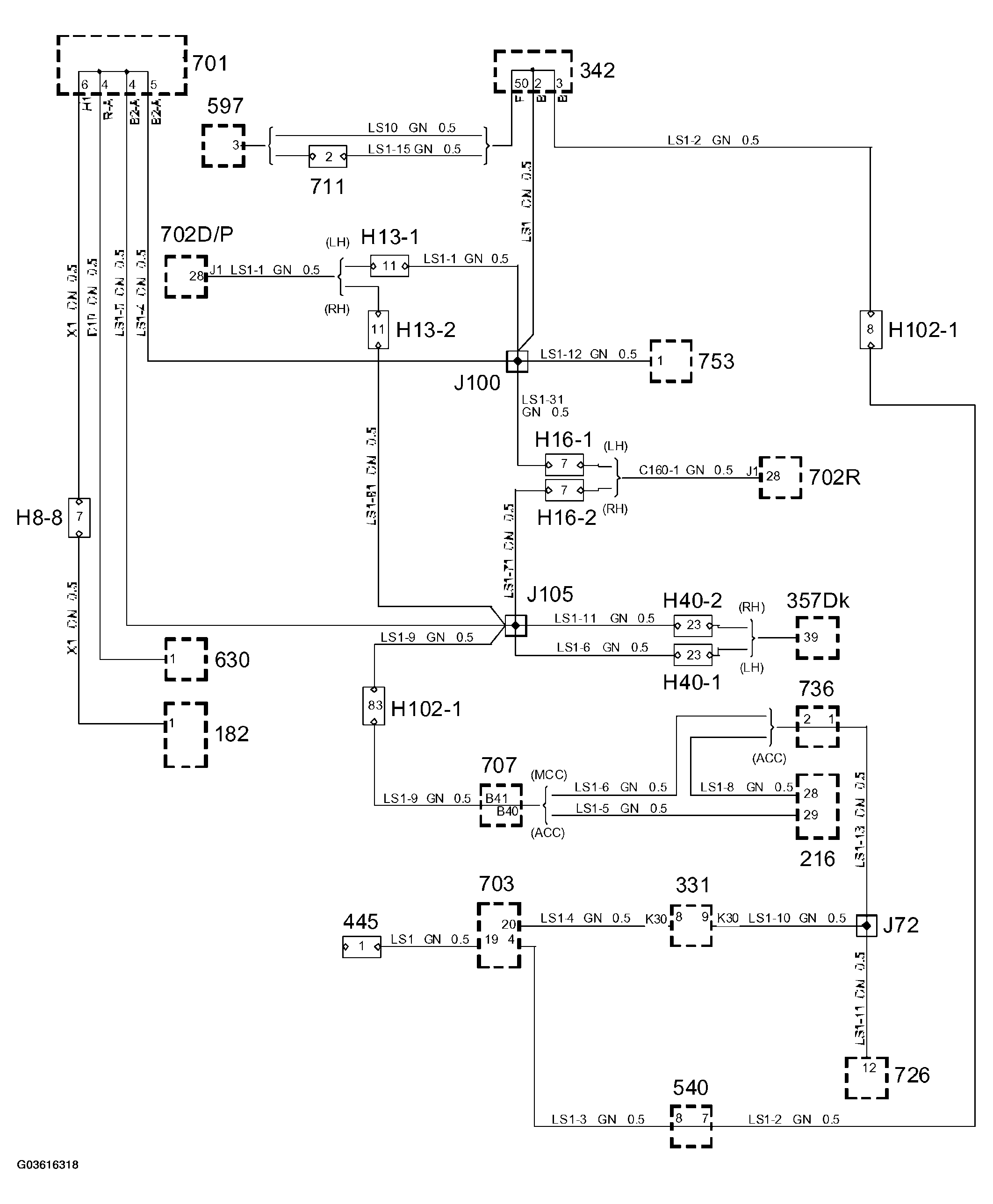

Fig 1: Identifying Wiring Diagram - No I-Bus System Can Be Contacted
G03616318Courtesy of SAAB-SCANIA OF AMERICA, INC.
