Rear speaker amplifier (354R): Notes

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location:  behind the rear left wheel housing

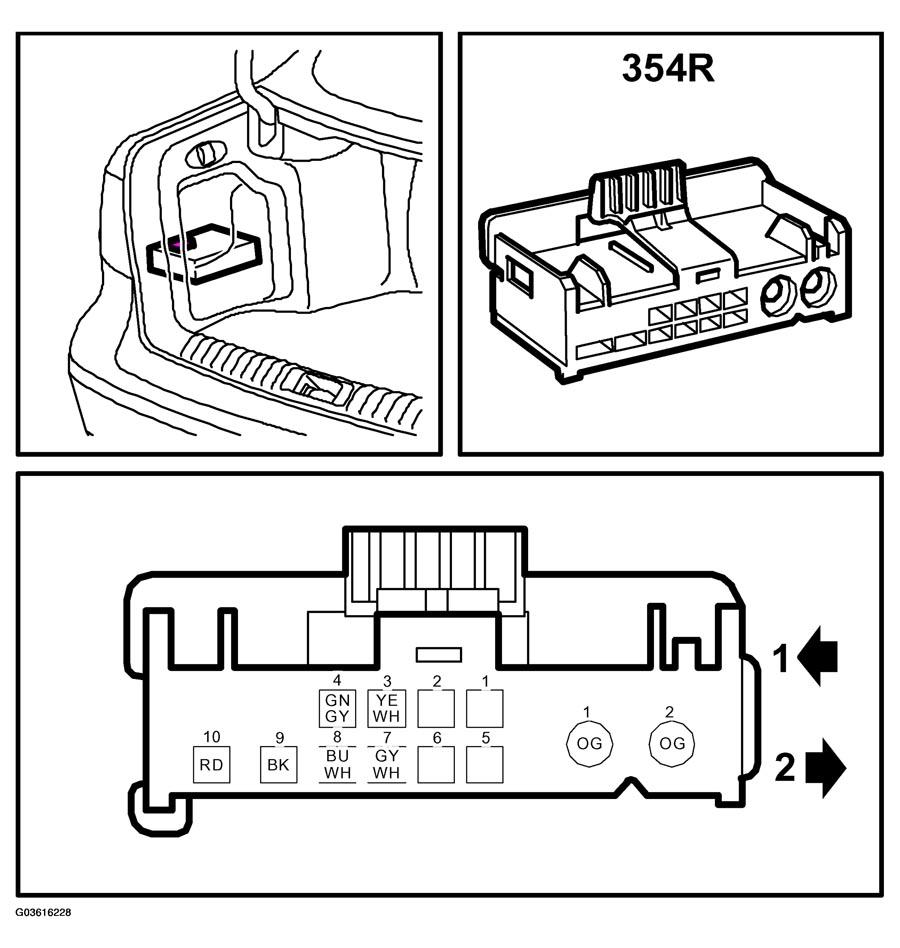

Fig 1: Identifying Rear Speaker Amplifier (354R)
G03616228Courtesy of SAAB-SCANIA OF AMERICA, INC.
