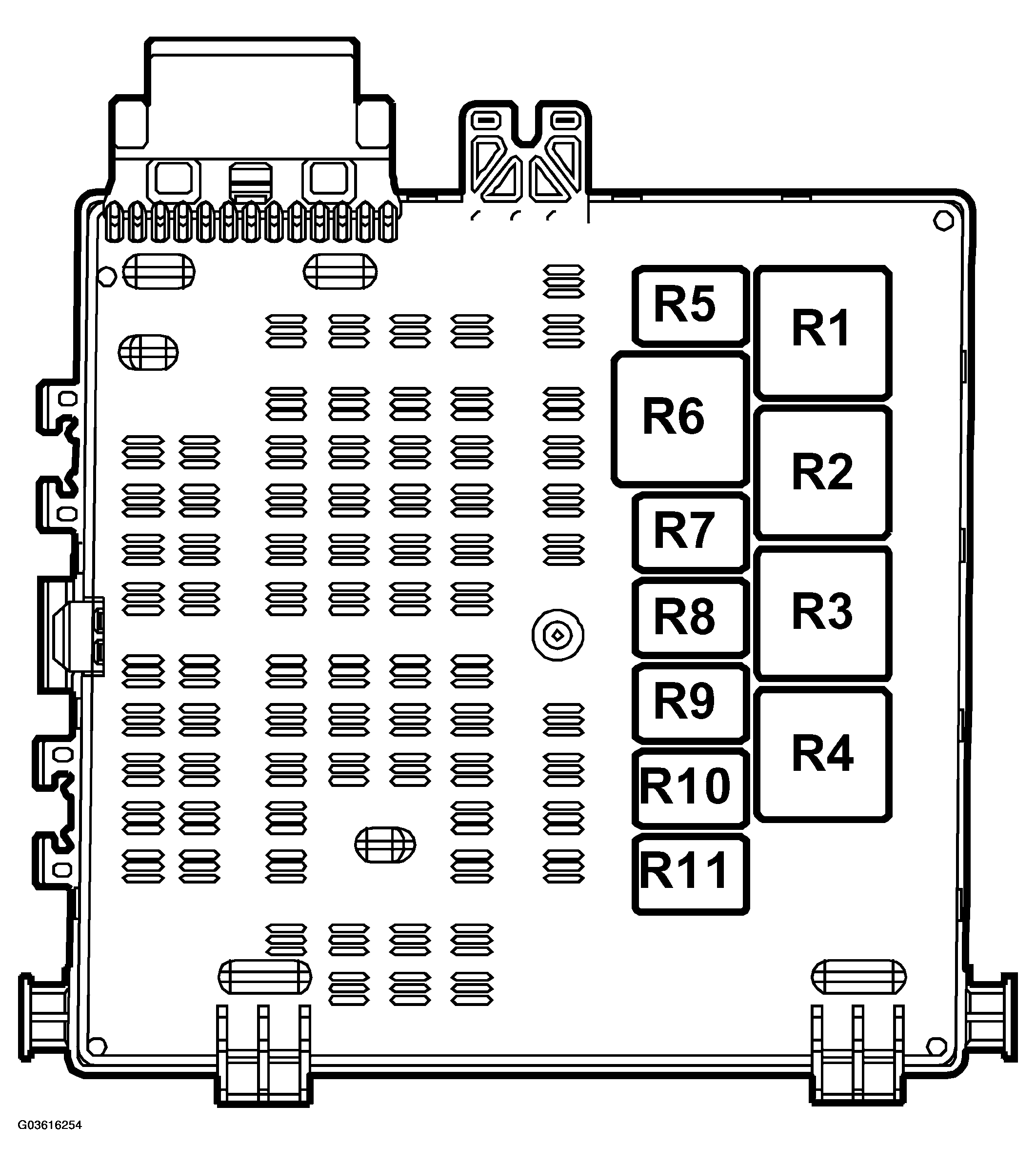

Rear electrical center 701 (REC): Relays
WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
The electrical center can contain a greater number of relays than those listed below. In such cases, these are not connected to a wiring harness.
RELAYS FUNCTION
| Location | No | Description | Go To |
|---|---|---|---|
| R1 | 446 | Electrically adjustable seat relay | ELECTRICAL COMPONENT LOCATOR |
| R2 | 757R | Relay, +15, REC | ELECTRICAL COMPONENT LOCATOR |
| R3 | - | ||
| R4 | 113 | Electrically heated rear window relay | ELECTRICAL COMPONENT LOCATOR |
| R5 | - | ||
| R6 | - | ||
| R7 | 710 | Boot lid opening motor relay | ELECTRICAL COMPONENT LOCATOR |
| R8 | - | ||
| R9 | - | ||
| R10 | - | ||
| R11 | - |
