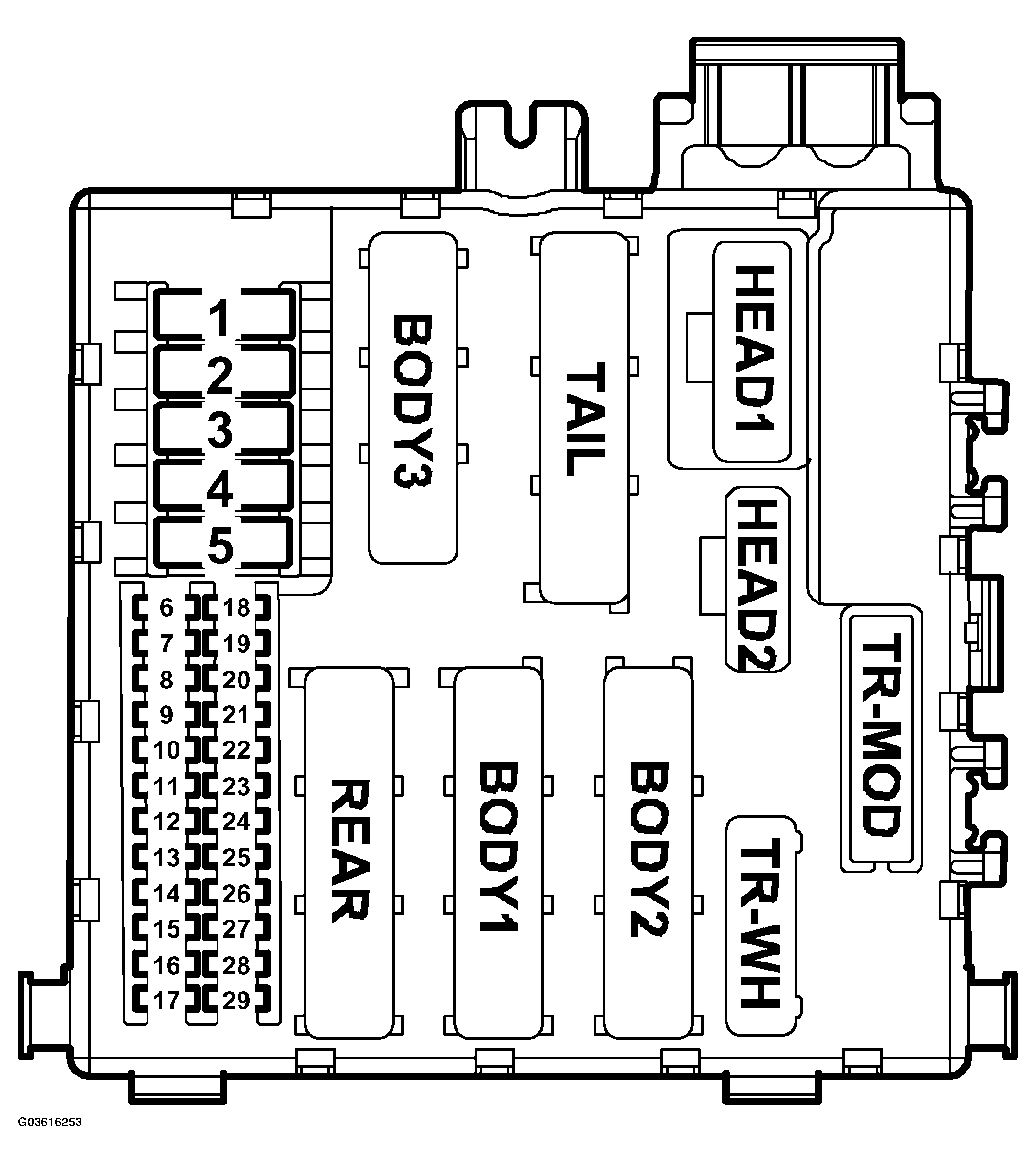

Rear electrical center 701 (REC): Fuses
WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
The electrical center can contain a greater number of fuses than those listed below. In such cases, these are not connected to a wiring harness.
FUSES FUNCTION
| No | Amp | Type | Function | Picture |
|---|---|---|---|---|
| 1 | - | |||
| 2 | - | |||
| 3 | - | |||
| 4 | 40 | +30 | Electrically adjustable seat without memory | FUSES & CIRCUIT BREAKERS |
| 5 | 40 | +30 | Electrically heated rear window | FUSES & CIRCUIT BREAKERS |
| 6 | 30 | +30 | Rear left door control module | FUSES & CIRCUIT BREAKERS |
| 7 | 30 | +30 | Rear right door control module | FUSES & CIRCUIT BREAKERS |
| 8 | 20 | +30 | Connection, trailer | FUSES & CIRCUIT BREAKERS |
| 9 | - | |||
| 10 | 30 | High-level brake light Trailer lighting Luggage compartment illumination Left rear lighting brake lights Right rear lighting: Direction indicators taillights Reversing lights |
FUSES & CIRCUIT BREAKERS | |
| 11 | - | |||
| 12 | - | |||
| 13 | - | |||
| 14 | - | |||
| 15 | 15 | +30 | Left seat heating | FUSES & CIRCUIT BREAKERS |
| 16 | 15 | +30 | Right seat heating | FUSES & CIRCUIT BREAKERS |
| 17 | 7,5 | +15 | Tyre pressure monitoring module Remote control garage opening Compass ADM control module Rain sensor |
FUSES & CIRCUIT BREAKERS |
| 18 | 15 | +30 | Sunroof | FUSES & CIRCUIT BREAKERS |
| 19 | 7,5 | +30 | Telematic module | FUSES & CIRCUIT BREAKERS |
| 20 | 7,5 | +30 | DVD | FUSES & CIRCUIT BREAKERS |
| 21 | 7,5 | +30 | Rear door control module SPA |
FUSES & CIRCUIT BREAKERS |
| 22 | 30 | +30 | Rear amplifier | FUSES & CIRCUIT BREAKERS |
| 23 | - | |||
| 24 | 10 | +30 | Anti-theft alarm siren Anti-theft alarm sensor |
FUSES & CIRCUIT BREAKERS |
| 25 | 30 | +30 | Electrically adjustable driver's seat with memory control module | FUSES & CIRCUIT BREAKERS |
| 26 | 30 | - | Rear fog light Number plate lighting luggage compartment illumination trailer lighting Left rear lighting Direction indicators taillights Reversing lights Right rear lighting: brake lights |
FUSES & CIRCUIT BREAKERS |
| 27 | - | |||
| 28 | - | |||
| 29 | - |
