Rear electrical center 701 (REC): Connect

The electrical center is fed with a +30 supply from the engine bay electrical center (342) and grounded to grounding points G3 and G29. The electrical center is connected to the wiring harness via 7 connectors:

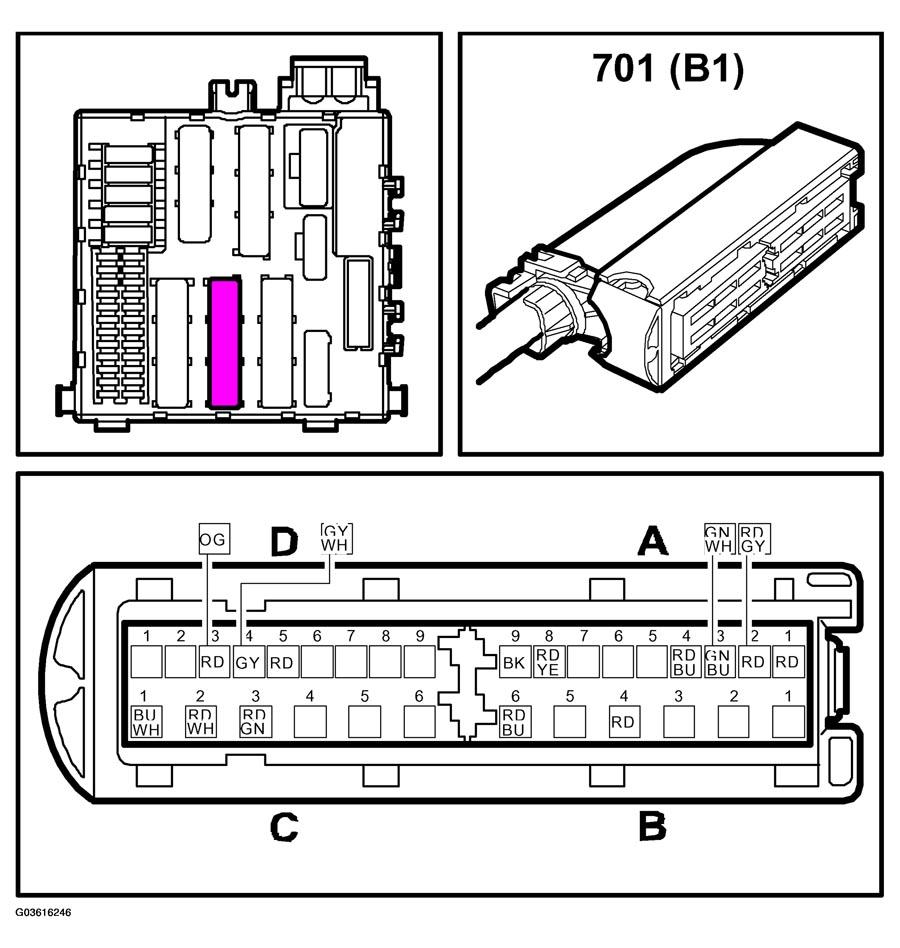

1. Body 1 (in diagram = B1) to main wiring harness
   Fig 1: Connector And Pin Identification (B1)

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

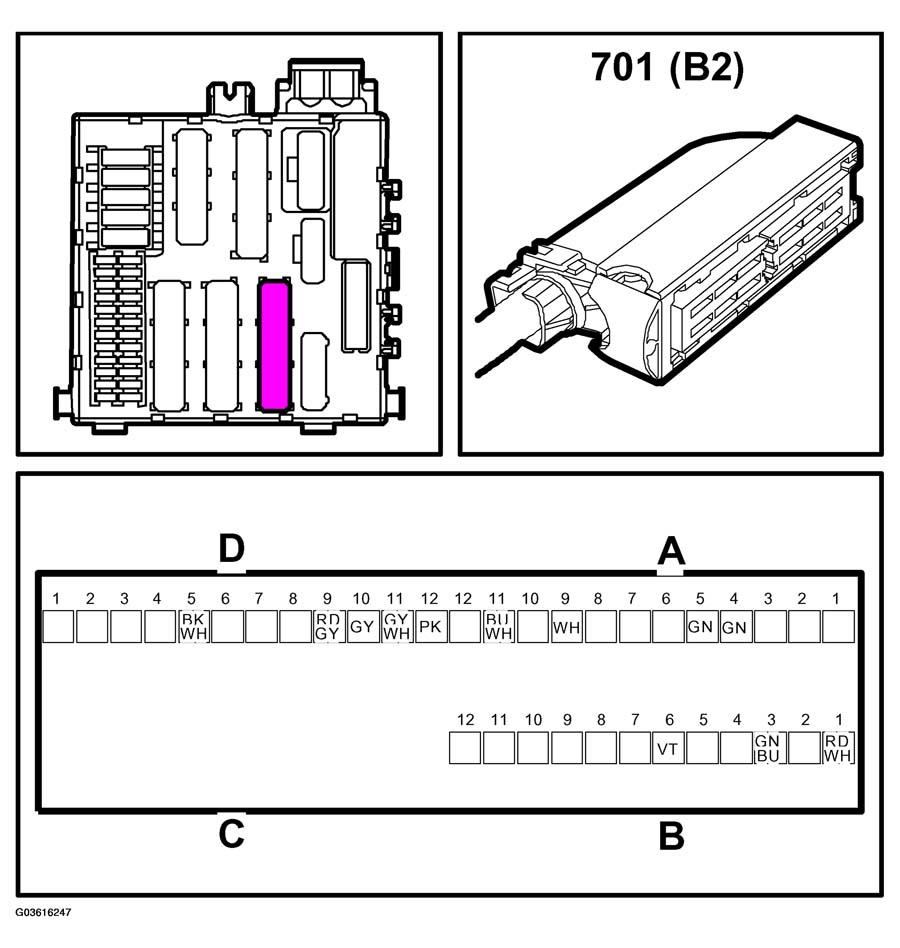

2. Body 2 (in diagram = B2) to main wiring harness
   Fig 2: Connector And Pin Identification (B2)

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

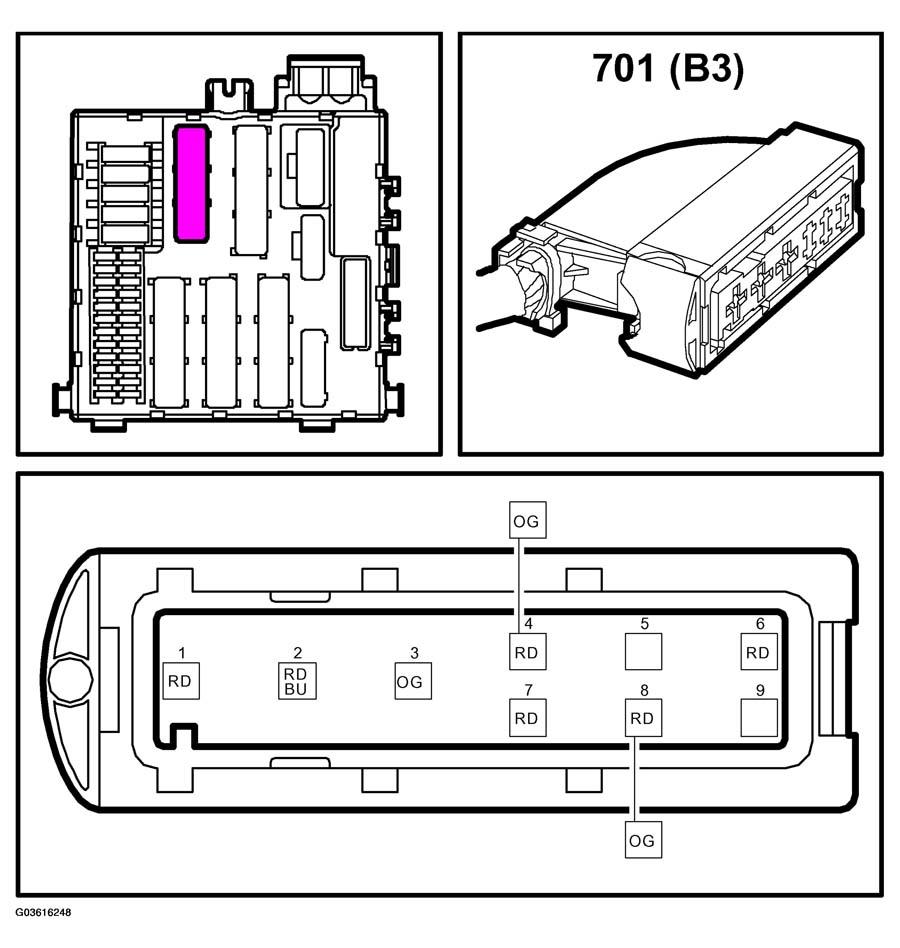

3. Body 3 (in diagram = B3) to main wiring harness
   Fig 3: Connector And Pin Identification (B3)

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

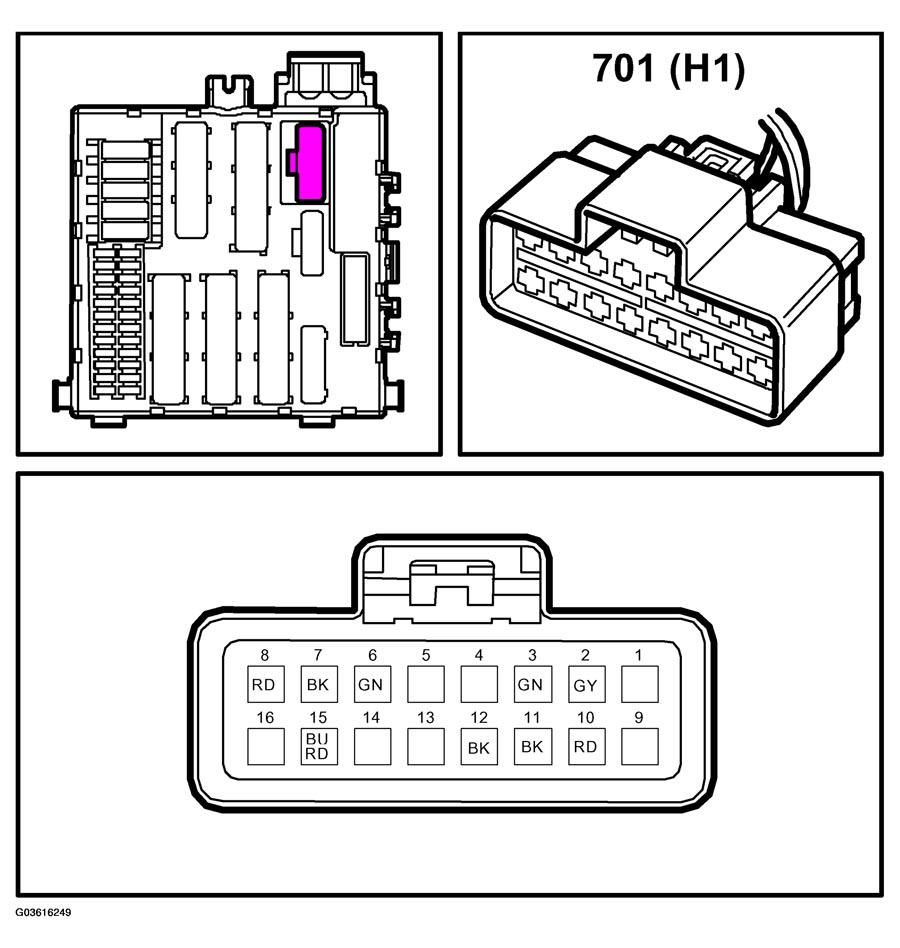

4. Head 1 (in diagram = H1) to roof wiring harness
   Fig 4: Connector And Pin Identification (H1)

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

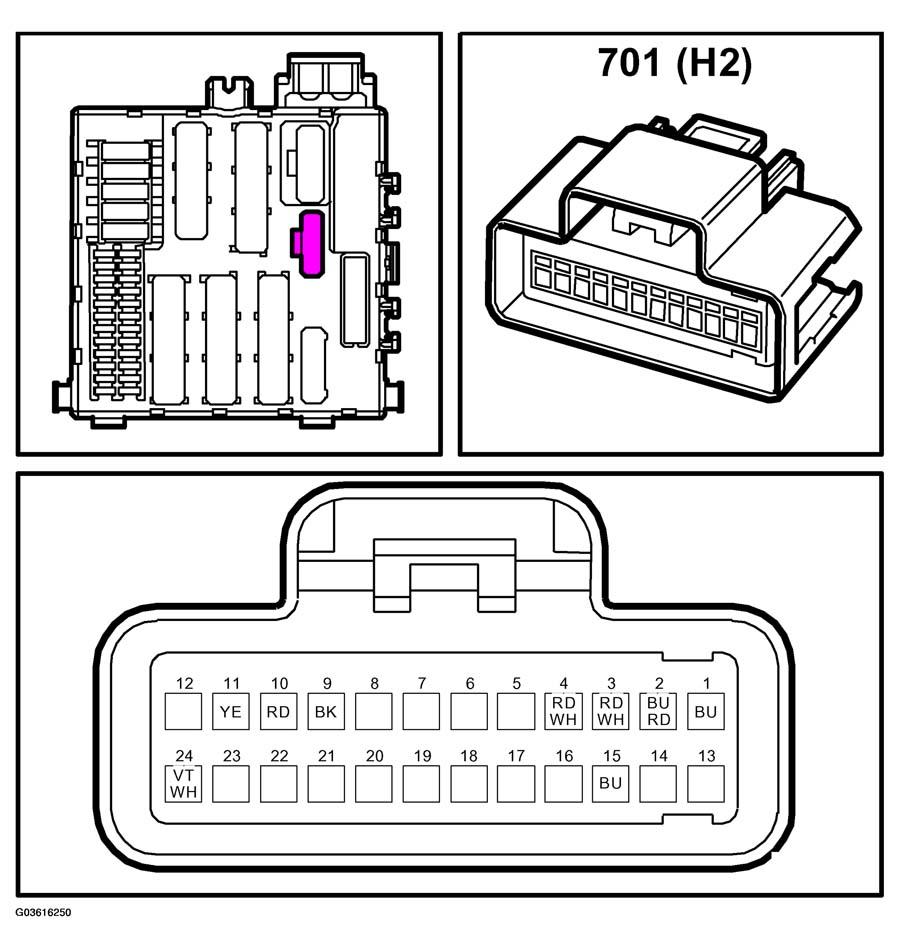

5. Head 2 (in diagram = H2) to roof wiring harness
   Fig 5: Connector And Pin Identification (H2)

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

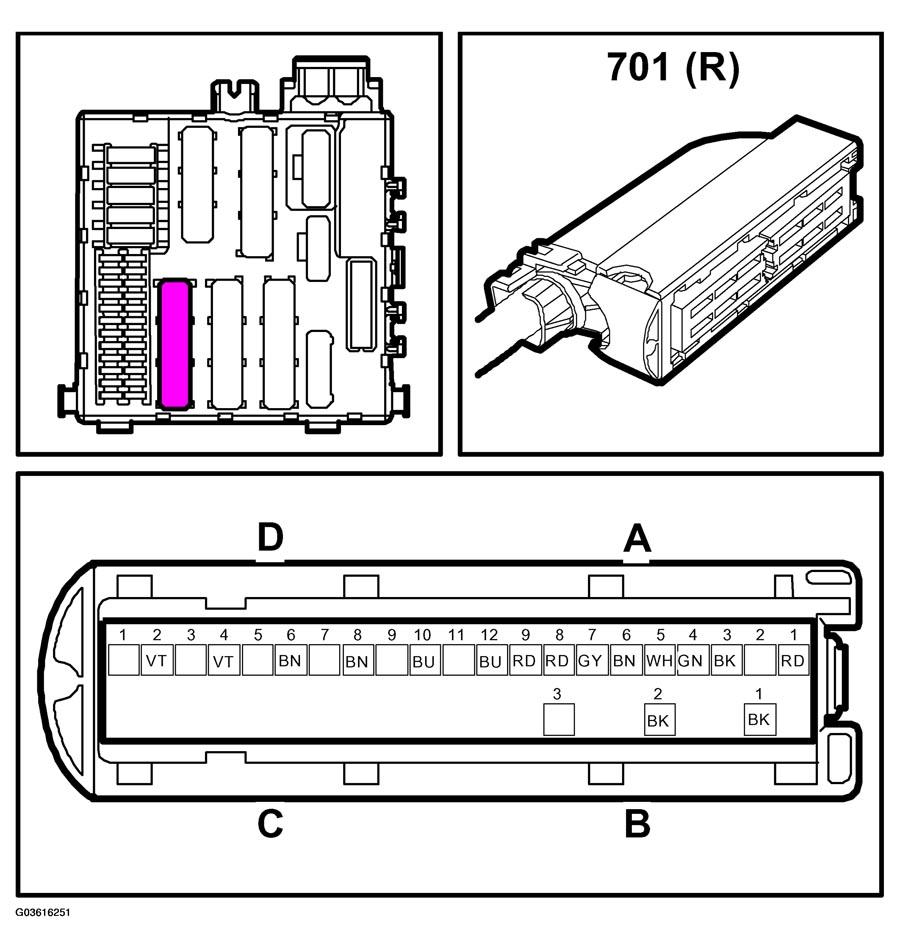

6. Rear (in diagram = R) to rear wiring harness
   Fig 6: Connector And Pin Identification (R)

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

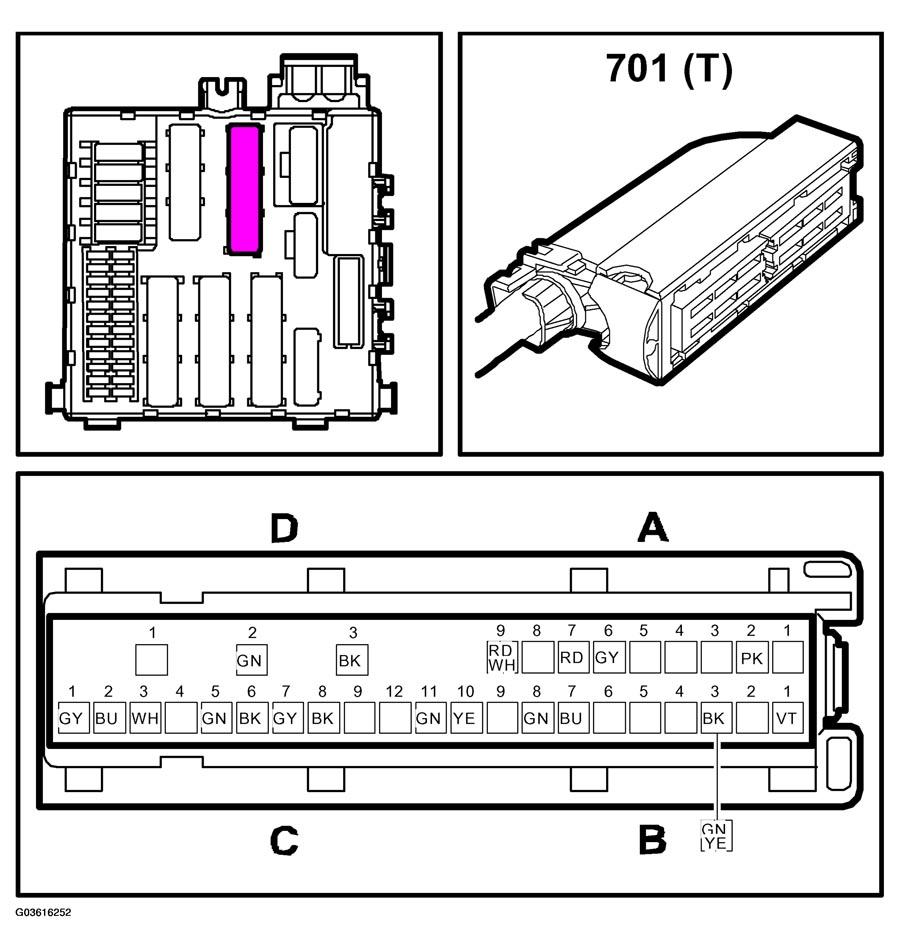

7. Tail (in diagram = T) to parcel shelf wiring harness
   Fig 7: Connector And Pin Identification (T)

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

The connectors for the main, parcel shelf and rear wiring harnesses each comprise four connectors, which are named A, B, C and D in the wiring diagrams, for example B1-B.

The TR-WH connector is used for a trailer connector. In some cases a special module, TR-MOD, is required.

The electrical center contains the following power circuits:

+30 power supply, rear electrical center

+15 power supply, rear electrical center
