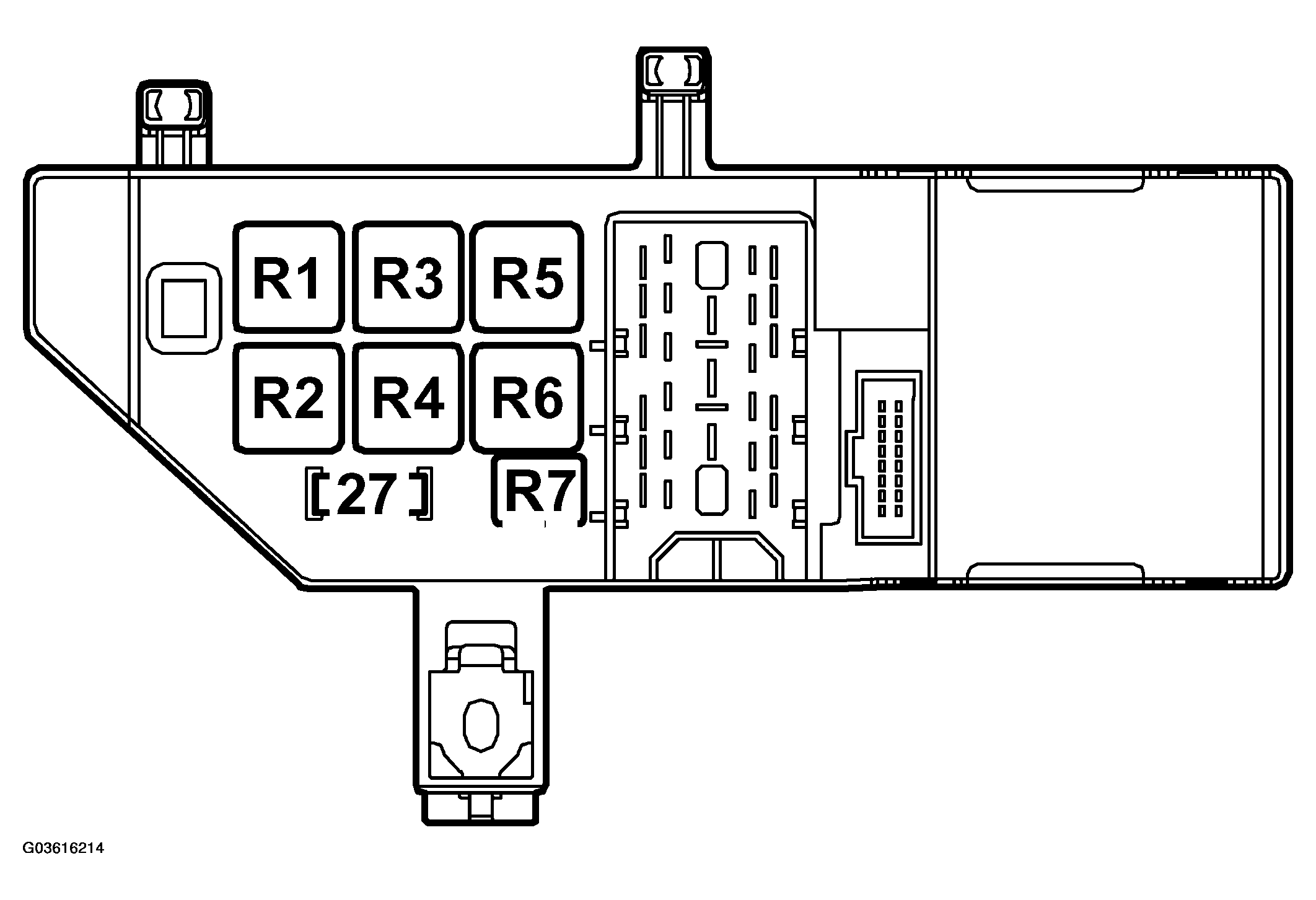

Instrument panel electrical center 22 (IPEC): Relays
WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
The electrical center can be equipped with more relays than those that have a function according to the list below. They are not then generally connected to the car's wiring harness.
RELAYS FUNCTION DESCRIPTION
| Location | No. | Designation | Go To |
|---|---|---|---|
| R1 | 21 | Relay, +54 | ELECTRICAL COMPONENT LOCATOR |
| R2 | 757C | Relay, +15, IPEC | ELECTRICAL COMPONENT LOCATOR |
| R3 | - | ||
| R4 | - | ||
| R5 | - | ||
| R6 | 756 | Relay, accessories | ELECTRICAL COMPONENT LOCATOR |
| R7 | - | ||
| Soldered circuit board | 717 | Interior lighting relay | ELECTRICAL COMPONENT LOCATOR |
