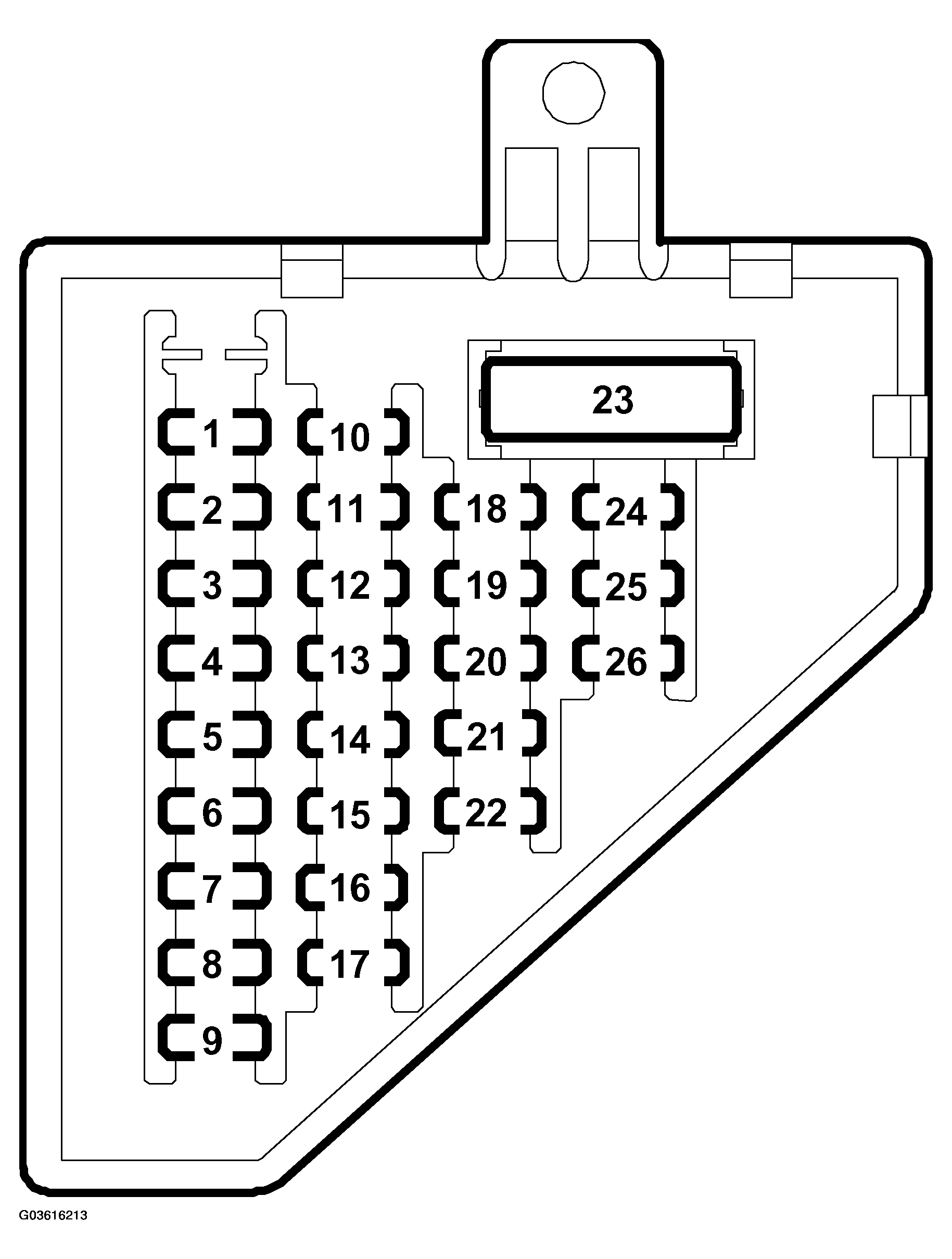

Instrument panel electrical center 22 (IPEC): Fuses
WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
The electrical center can be equipped with more fuses than those that have a function according to the list below. They are not then generally connected to the car's wiring harness.
FUSES FUNCTION DESCRIPTION
| No. | Amp. | Type | Function | Go To |
|---|---|---|---|---|
| 1 | 15 | +30 | Steering column lock | FUSES & CIRCUIT BREAKERS |
| 2 | 5 | +30 | Ignition Switch Module Column Integration Module |
FUSES & CIRCUIT BREAKERS |
| 3 | 10 | +30 | CD player/changer, front SID Connection, cellular phone |
FUSES & CIRCUIT BREAKERS |
| 4 | 10 | +30 | Main instrument display panel ACC MCC |
FUSES & CIRCUIT BREAKERS |
| 5 | 7.5 | +30 | Control module, front doors Shift Lever Module |
FUSES & CIRCUIT BREAKERS |
| 6 | 7.5 | +30 | Brake light switch | FUSES & CIRCUIT BREAKERS |
| 7 | 20 | +30 | BCM Fuel filler flap |
FUSES & CIRCUIT BREAKERS |
| 8 | 30 | +30 | Passenger Door Module, front door | FUSES & CIRCUIT BREAKERS |
| 9 | 10 | +30 | BCM | FUSES & CIRCUIT BREAKERS |
| 10 | 30 | +54 | 12V socket, cabin, including lighting Connection, trailer |
FUSES & CIRCUIT BREAKERS |
| 11 | 15 | +30 | Data link connector | FUSES & CIRCUIT BREAKERS |
| 12 | 15 | +30 | Interior lighting Glove box lighting |
FUSES & CIRCUIT BREAKERS |
| 13 | 30 | Accessories | ||
| 14 | 20 | +30 | Main unit, audio Control panel, infotainment |
FUSES & CIRCUIT BREAKERS |
| 15 | 30 | +30 | Driver Door Module | FUSES & CIRCUIT BREAKERS |
| 16 | - | |||
| 17 | - | |||
| 18 | 7.5 | +54 | MCC | FUSES & CIRCUIT BREAKERS |
| 19 | - | |||
| 20 | 7.5 | +15 | Switch, headlamp beam length adjustment | FUSES & CIRCUIT BREAKERS |
| 21 | 7.5 | +15 | Switch, clutch, cruise control Switch, brake, cruise control Connection, cellular phone MCC |
FUSES & CIRCUIT BREAKERS |
| 22 | 30 | +15 | Cigarette lighter | FUSES & CIRCUIT BREAKERS |
| 23 | 40 | +30 | Ventilation fan | FUSES & CIRCUIT BREAKERS |
| 24 | 7.5 | +30 | Airbag | FUSES & CIRCUIT BREAKERS |
| 25 | - | |||
| 26 | 5 | +15 | Yaw sensor | FUSES & CIRCUIT BREAKERS |
| 27 | - |
