Instrument panel electrical center 22 (IPEC): Connection

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

The 16 pin connector from the BCM 707 control module is connected directly to the electrical center.

The electrical center is fed with +30 voltage from the engine bay electrical center 342 and is connected to the dashboard harness via a 42 pin connector.

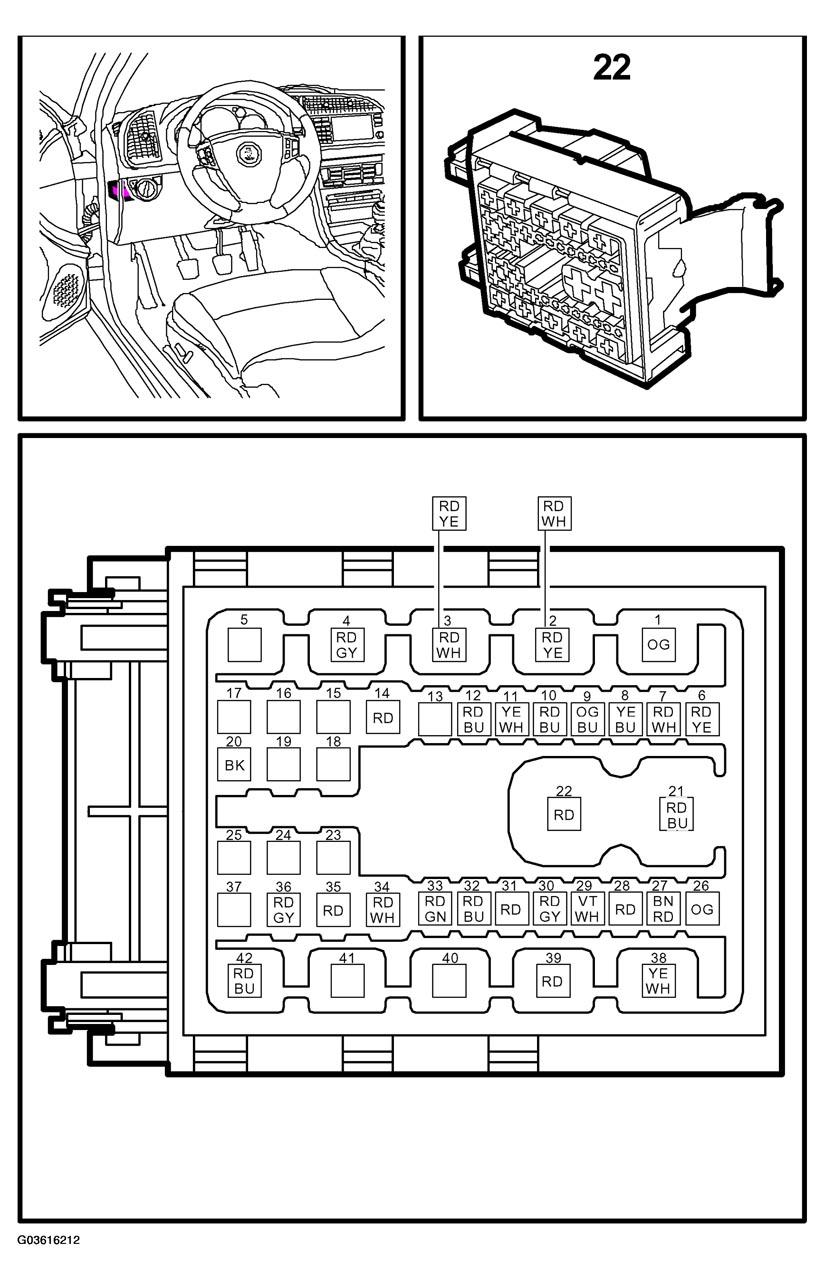

Fig 1: Identifying BCM 707 Control Module Connector
G03616212Courtesy of SAAB-SCANIA OF AMERICA, INC.

The following current circuits are distributed by the electrical center:

  1. Power supply +30, dashboard's electrical center
  2. Power supply +15, dashboard's electrical center
  3. Power supply +54
