Infotainment control panel (736)

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location:  Under SID

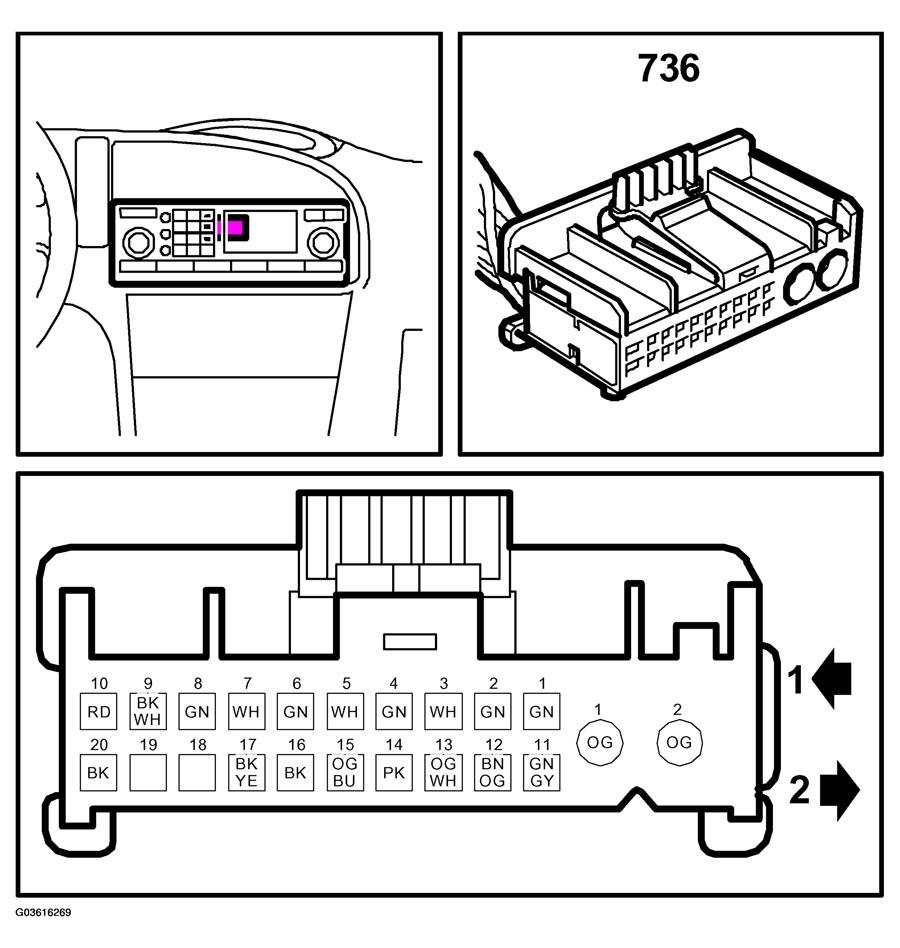

Fig 1: Identifying Infotainment Control Panel Connector (736)
G03616269Courtesy of SAAB-SCANIA OF AMERICA, INC.
