Grounding point G40: Notes

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

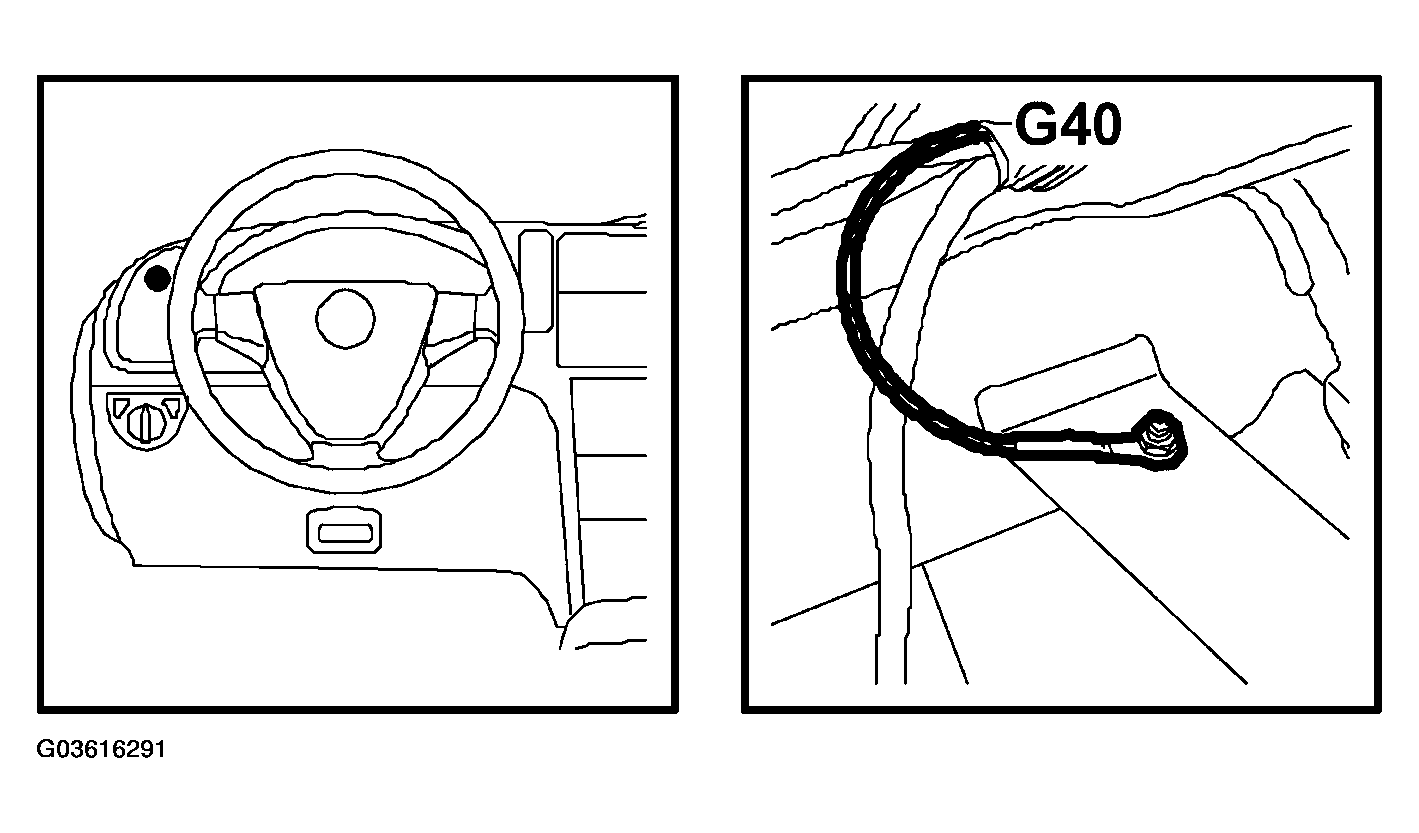

Fig 1: Identifying Grounding Point G40
G03616291Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  In the dashboard well to the left of the knee member
