Connected components:
WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

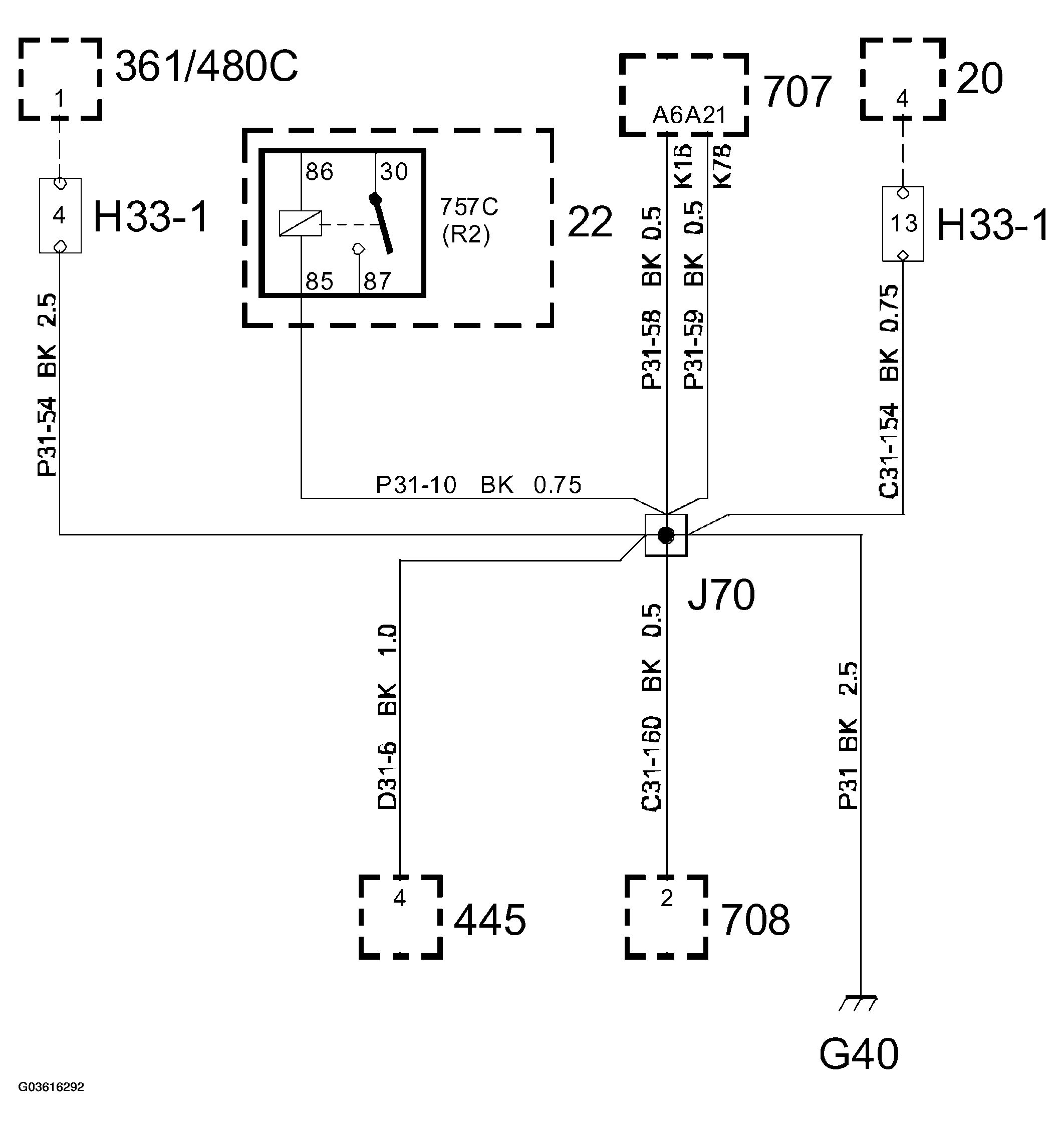

GROUNDING POINT G40 CONNECTED COMPONENTS
| CRIMP CONNECTION J70, INSTRUMENT HARNESS | |
| 20 | Ignition switch unit |
| 361 | Lighting socket 12 V bulb |
| 445 | Data link connector 16 pin, CARB |
| 480C | Cabin, 12 V socket |
| 707 | BCM Body Control Module |
| 708 | Steering Column Lock |
| 757C | Relay, +15, IPEC, |
